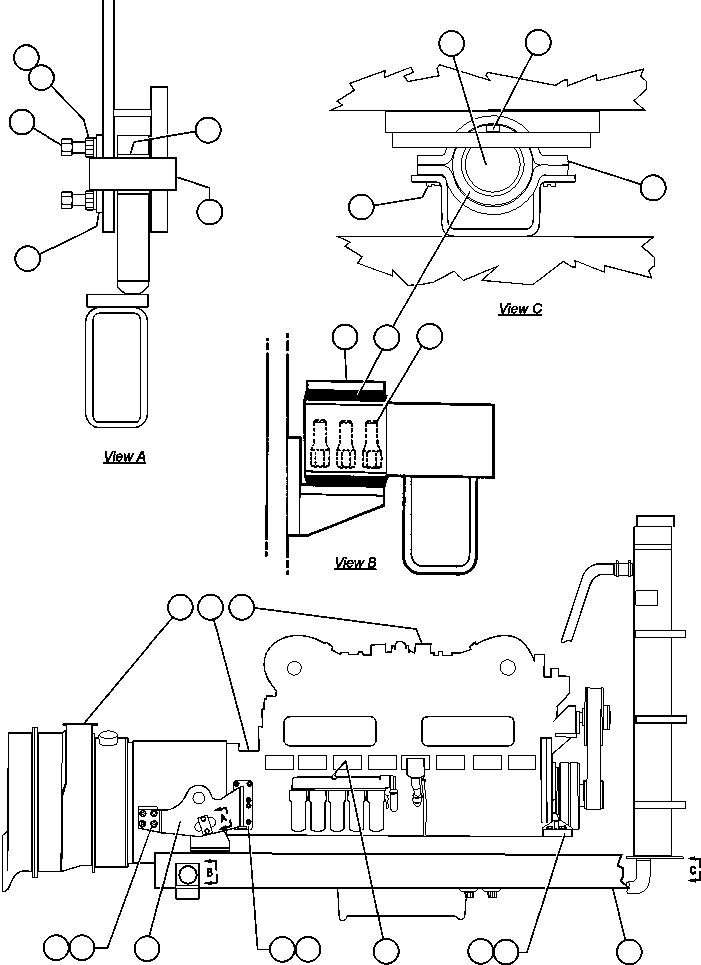

Номер на схеме |
Каталожный номер |
Название |
Количество |
Детали |
|
|
|
? |
PB9266 |
ALTERNATOR BLOWER ASSEMBLY |
1 |
|
|
|
|
? |
TJ5933 |
ADAPTOR ASSEMBLY |
1 |
|
|
|
|
? |
VW5737 |
• CAPSCREW - 5/8" - 11NC X 2" |
16 |
|
|
|
|
? |
VN9087 |
• CAPSCREW - 5/8" - 11NC X 2 1/2" |
12 |
|
|
|
|
? |
WA0361 |
• FLAT WASHER - 5/8" (HARDENED) |
28 |
|
|
|
|
? |
TM3466 |
• SHIM - .004 (4 HOLE) |
4 |
|
|
|
|
? |
TM3467 |
• SHIM - .004 (3 HOLE) |
4 |
|
|
|
|
? |
TM3468 |
• SHIM - .004 (4 HOLE) |
4 |
|
|
|
|
? |
TM3469 |
• SHIM - .007 (3 HOLE) |
4 |
|
|
|
|
? |
TW6616 |
• SHIM - .010 (4 HOLE) |
12 |
|
|
|
|
? |
|
ENGINE (ORDER FROM FACTORY) |
1 |
|
|
|
|
? |
C1634 |
CAPSCREW - 5/8" - 11NC X 3" |
4 |
|
|
|
|
? |
VM6531 |
CAP, ENGINE MOUNT |
2 |
|
|
|
|
? |
C1542 |
LOCKWASHER - 3/4" |
16 |
|
|
|
|
? |
TM1312 |
PIN, PIVOT |
1 |
|
|
|
|
? |
VM3891 |
BUSHING, RUBBER |
3 |
|
|
|
|
? |
E1473 |
CAPSCREW - 1 1/4" - 7NC X 2 1/2" |
2 |
|
|
|
|
? |
EC7597 |
SUB-FRAME |
1 |
|
|
|
|
? |
TD8516 |
CAPSCREW - 3/4" - 10NC X 3 1/4" |
2 |
|
|
|
|
? |
EC9301 |
CRADLE - R.H. |
1 |
|
|
|
|
? |
EC9302 |
CRADLE - L.H. |
1 |
|
|
|
|
? |
VN9077 |
CAPSCREW - 3/4" - 10NC X 2 1/4" |
18 |
|
|
|
|
? |
VN9079 |
CAPSCREW - 1" - 8NC X 2 1/4" |
8 |
|
|
|
|
? |
C1544 |
LOCKWASHER - 1" |
8 |
|
|
|
|
? |
E4477 |
CAPSCREW - 3/4" - 10NC X 1 3/4" |
12 |
|
|
|
|
? |
PB4177 |
RACE |
2 |
|
|
|
|
? |
EB8048 |
PLATE |
2 |
|
|
|
|
? |
E5222 |
JAM NUT - 3/4" - 10NC |
4 |
|
|
|
|
? |
VW2236 |
SET SCREW - 3/4" - 10NC X 3" |
4 |
|
|
|
|
? |
TN1019 |
PIN |
2 |
|
|
|
|
? |
|
NOTE: NS = NOT SHOWN |
|
|
|
|
|
? |
EF2654 |
ALTERNATOR, BATTERY CHARGING (SEE INDEX) |
1 |
|
60143 |
|
|
? |
BF3522 |
BELT, ALTERNATOR DRIVE |
1 |
|
|
|
|
? |
VS7692 |
ELEMENT, ENGINE LUBE OIL FILTER |
5 |
|
|
|
|
? |
VE3885 |
ELEMENT, WATER CORROSION RESISTOR |
1 |
|
|
|
