Номер на схеме |
Каталожный номер |
Название |
Количество |
Детали |
|
|
|
? |

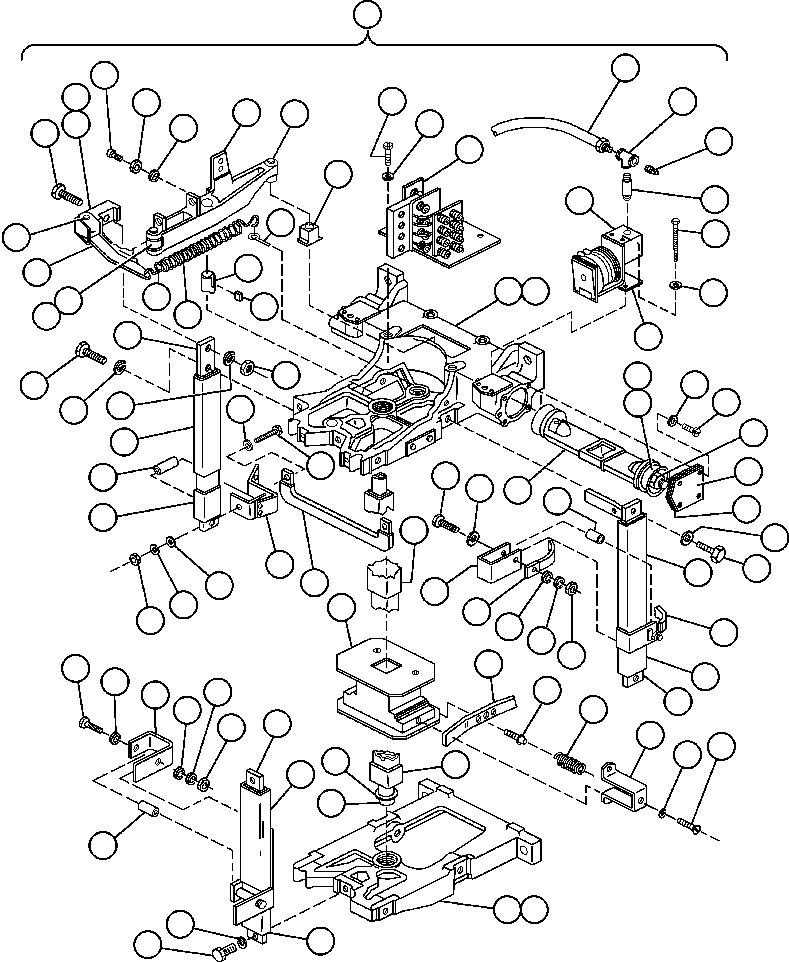

PB4254 |
REVERSER |
1 |
|
|
|
|
? |
VS7677 |
INTERLOCK (SEE INDEX) |
1 |
|
64060 |
|
|
? |
BF1398 |
MAGNET VALVE (SEE INDEX) |
2 |
|
64062 |
|
|
? |
VJ9127 |
END FRAME |
1 |
|
|
|
|
? |
VS8462 |
BUSHING - 0.0878" ID, BRONZE |
1 |
|
|
|
|
? |
VS9115 |
END FRAME |
1 |
|
|
|
|
? |
VS8462 |
BUSHING - 0.0878" ID, BRONZE |
1 |
|
|
|
|
? |
VS9116 |
OPERATING LEVER |
1 |
|
|
|
|
? |
VS8170 |
ROLLER WITH PINS |
1 |
|
|
|
|
? |
VE0602 |
PIN - 1 19/32" |
1 |
|
|
|
|
? |
VS9117 |
PAWL ASSEMBLY |
1 |
|
|
|
|
? |
VS9135 |
PIN, SUPPORT MOUNTING |
1 |
|
|
|
|
? |
VS9134 |
SUPPORT WITH BUSHING |
1 |
|
|
|
|
? |
VS8457 |
BUSHING |
1 |
|
|
|
|
? |
VS9099 |
PISTON |
1 |
|
|
|
|
? |
VJ7656 |
CYLINDER HEAD |
2 |
|
|
|
|
? |
VS9056 |
GASKET - 2.75" X 3.187" |
2 |
|
|
|
|
? |
VS8478 |
PACKING |
2 |
|
|
|
|
? |
VJ0854 |
FOLLOWER - 2 1/8" OD |
2 |
|
|
|
|
? |
VS9143 |
BLOCK, GUIDE |
1 |
|
|
|
|
? |
VE4348 |
NUT - 1/2" - 13NC |
2 |
|
|
|
|
? |
VE4695 |
KEY, WOODRUFF - #11 |
1 |
|
|
|
|
? |
VE4696 |
LOCKWASHER - 5/16" |
12 |
|
|
|
|
? |
VE4349 |
BOLT, HEX HEAD - 5/16" - 18NC X 7/8" |
8 |
|
|
|
|
? |
VE4697 |
BOLT - 5/16" - 18NC X 2" |
4 |
|
|
|
|
? |
WA0399 |
NUT, HEX - 1/2" - 13NC |
1 |
|
|
|
|
? |
VE4699 |
LOCKWASHER - 1/2" |
11 |
|
|
|
|
? |
VE4489 |
BOLT - 1/2" - 13NC X 1 1/4" |
10 |
|
|
|
|
? |
TV1918 |
BOLT, HEX HEAD - 1/2" - 13NC X 1 3/4" |
1 |
|
|
|
|
? |
VE4350 |
COTTER PIN - 5/16" X 1 1/4" |
1 |
|
|
|
|
? |
VE4351 |
SET SCREW - 3/8" - 16NC X 1 1/4" |
1 |
|
|
|
|
? |
TC1233 |
NUT, HEX - 3/8" - 16NC |
6 |
|
|
|
|
? |
VE4687 |
LOCKWASHER - 3/8" |
9 |
|
|
|
|
? |
VE4516 |
WASHER - 3/8" |
8 |
|
|
|
|
? |
C1620 |
BOLT, HEX HEAD - 3/8" - 16NC X 3" |
2 |
|
|
|
|
? |
VE4702 |
BOLT, HEX HEAD - 3/8" - 16NC X 2 3/4" |
1 |
|
|
|
|
? |
VE4703 |
SCREW, SL FIL HEAD - 3/8" - 16NC X 5/8" |
3 |
|
|
|
|
? |
VS9141 |
SUPPORT |
2 |
|
|
|
|
? |
VM0204 |
CONTACT SUPPORT |
2 |
|
|
|
|
? |
VM0205 |
CONTACT SUPPORT |
1 |
|
|
|
|
? |
VS9142 |
SPACER - 0.615" |
2 |
|
|
|
|
? |
VS7312 |
SPACER - 1.460" |
3 |
|
|
|
|
? |
VM0177 |
DOUBLE CONTACT FINGER ASSM |
2 |
|
|
|
|
? |
VS8273 |
SPRING SUPPORT |
2 |
|
|
|
|
? |
VS8278 |
FINGER SUPPORT |
1 |
|
|
|
|
? |
VS9140 |
SPRING SEAT |
2 |
|
|
|
|
? |
VM0223 |
SPRING |
2 |
|
|
|
|
? |
VS8271 |
BUS BAR |
1 |
|
|
|
|
? |
VS9137 |
SLEEVE - 59/64" |
1 |
|
|
|
|
? |
VS9138 |
SLEEVE - 1 51/64" |
2 |
|
|
|
|
? |
VS8272 |
SLEEVE - 1 35/64" |
3 |
|
|
|
|
? |
VS7675 |
SLEEVE - 1 17/64" |
3 |
|
|
|
|
? |
VS7676 |
SLEEVE - 1 49/64" |
2 |
|
|
|
|
? |
VS9005 |
SLEEVE - 13/16" |
1 |
|
|
|
|
? |
VM0216 |
GASKET |
2 |
|
|
|
|
? |
VE4606 |
LOCKWASHER - #8 |
4 |
|
|
|
|
? |
VE4704 |
SCREW, SL FIL HEAD - #8 - 36NF X 1" |
4 |
|
|
|
|
? |
VS8445 |
BEARING, THRUST - 0.880" |
1 |
|
|
|
|
? |
VS8274 |
SPACER - 0.110" |
1 |
|
|
|
|
? |
VJ6529 |
CARRIAGE BOLT - 2 1/2" |
2 |
|
|
|
|
? |
VE4352 |
ROD ASSEMBLY |
4 |
|
|
|
|
? |
VE4353 |
ROD ASSEMBLY |
1 |
|
|
|
|
? |
VS9133 |
SPRING - 6.50" |
1 |
|
|
|
|
? |
VE2755 |
SHAFT - 8 11/16" |
1 |
|
|
|
|
? |
VE3399 |
HOOK |
1 |
|
|
|
|
? |
VS8697 |
HOSE WITH FITTINGS - 9 13/16" |
1 |
|
|
|
|
? |
R2508 |
TEE - 1/4" |
2 |
|
|
|
|
? |
C5769 |
PIPE PLUG - 1/4" |
2 |
|
|
|
|
? |
DC2361 |
NIPPLE - 1/4" - 20NC X 1 1/4" |
2 |
|
|
|
