Содержание Dump Trucks Komatsu AFE47-X 730E S/N 32820 & 32835-32836 FOSCOR(AFE47-X)

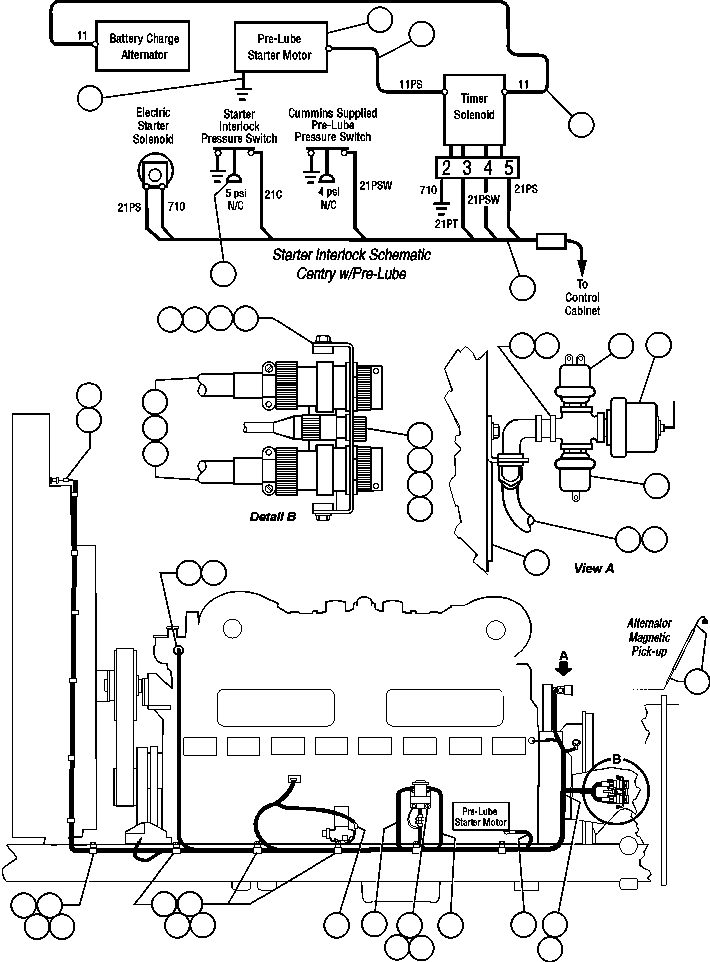

ENGINE WIRING - 3(268 : 55156)
Номер на схеме Каталожный номер Название Количество Детали
? PB6417 SENDER, TEMPERATURE 1
? SF4094 BUSHING, PIPE 1
? EF8480 CABLE, COOLANT LEVEL 1
? TG2562 CLAMP 7
? VH9969 WELD STUD - 3/8" - 16NC X 3/4" 12
? C0312 LOCKWASHER - 3/8" 18
? C1521 NUT - 3/8" - 16NC 18
? TG2568 CLAMP 6
? CH2915 CABLE 1
? CH2914 CABLE 1
? SF9896 DISCONNECT, KNIFE 1
? EF6866 BRACKET, PRE-LUBE SOLENOID 1
? C3145 CAPSCREW - 1/4" - 20NC X 5/8" 2
? C5774 LOCKWASHER - 1/4" 2
? YA3200 HARNESS, EXTERNAL ENGINE 1
? LW00351 LOOM - 63"
? ED2619 CABLE, GROUND 1
? PB5371 NUT 2
? PB5373 LOCKWASHER 2
? EC1595 PLATE, CONNECTOR 1
? MM0022 CAPSCREW - M8 X 1.25 X 20 3
? MM0460 FLAT WASHER - M8 3
? PB9710 SWITCH, COOLANT LEVEL 1
? VZ0589 SWITCH, PRESSURE 1
? EF8721 BRACKET, SOLENOID 1
? DC5608 NIPPLE 1
? TV8626 CROSS, PIPE 1
? SG3290 SWITCH, PRESSURE 1
? 677161R93 SENDER, PRESSURE 1
? HA4008 HOSE 1
? WB0455 FITTING, STRAIGHT 1
? BF2210 MOTOR, PRELUBE STARTER 1
? MM0470 LOCKWASHER - M8 3
? TY8239 CONNECTOR 1
? TC4830 MACHINE SCREW - #6 - 32NC X 5/8" 2
? DF4944 LOCKWASHER - #6 2
? DD2468 NUT - #6 - 32NC 2
