Содержание Dump Trucks Komatsu AFE48-BF 930E-2 S/N A30012 CODELCO(AFE48-BF)

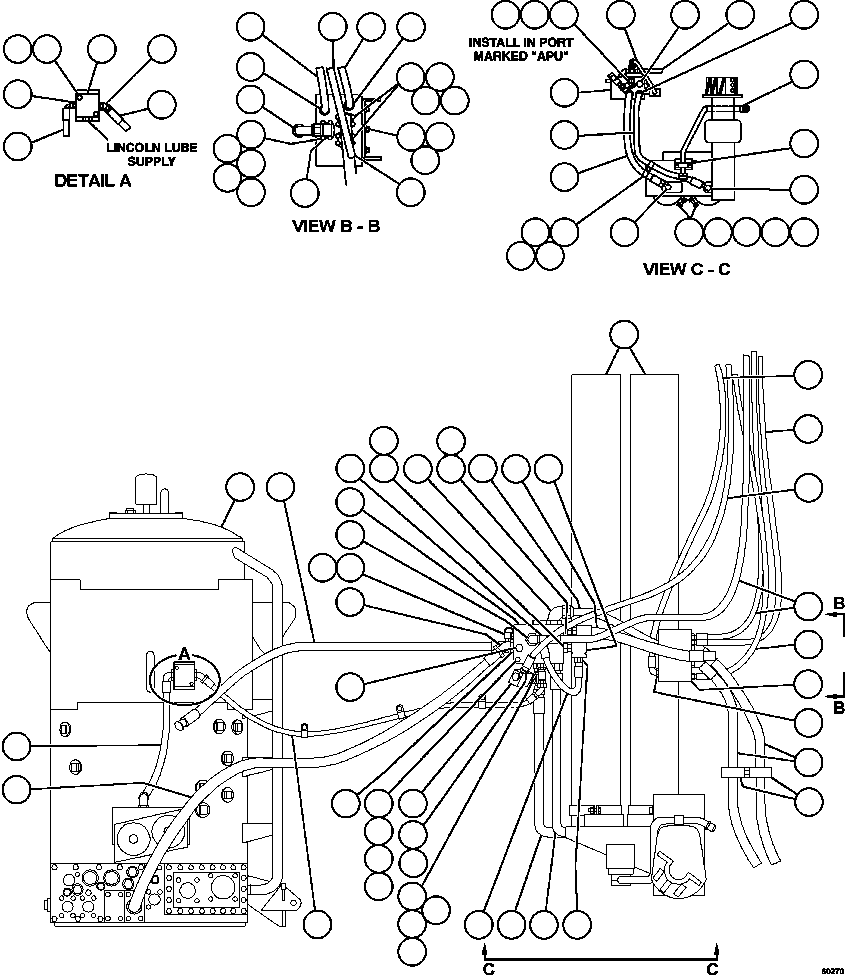

STEERING SYSTEM PIPING(096 : 60270)
Наименование Страница Код страницы
FLOW AMPLIFIER PB9992 098 35461
STEERING ACCUMULATOR ASSEMBLY ED3830 094 60017
BLEEDDOWN MANIFOLD VALVE ASSM PC0235 100 60184

Номер на схеме Каталожный номер Название Количество Детали
? EG5017 TANK ASSEMBLY 1
? HA7593 HOSE 1
? HA6227 HOSE 1
? WB0549 FITTING, O-RING - 45 DEG 1
? VM0314 PLUG, O-RING 2
? WB0524 FITTING, O-RING - 90 DEG 1
? PC0235 VALVE, BLEEDDOWN (SEE INDEX) 1 60184
? WB0600 FITTING, O-RING - STRAIGHT 2
? HA4416 HOSE 1
? HA7423 HOSE 1
? HA7424 HOSE 1
? HA6343 HOSE 2
? HA6763 HOSE 1
? HA7270 HOSE 2
? PB9992 FLOW AMPLIFIER (SEE INDEX) 1 35461
? WB0574 FITTING, O-RING - STRAIGHT 1
? PC0016 VALVE, SOLENOID 1
? C5775 LOCKWASHER - 7/16" 3
? HA6717 HOSE 1
? WB0384 FITTING, TEE 3
? EG7185 TUBE 1
? WB0602 FITTING, O-RING - STRAIGHT 1
? WB0601 FITTING, O-RING - STRAIGHT 1
? HA7449 HOSE 1
? HA5344 HOSE 1
? HA3278 HOSE 1
? HA6619 HOSE 1
? WB0378 FITTING - 90 DEG 1
? SR7215 CAPSCREW - 1/2" - 13NC X 7 1/2" 2
? WA0360 FLAT WASHER - 1/2" (HARDENED) 3
? C1540 LOCKWASHER - 1/2" 2
? C1523 NUT - 1/2" - 13NC 3
? TC6058 CLAMP 2
? C1614 CAPSCREW - 1/2" - 13NC X 1 1/2" 1
? WB0522 FITTING, O-RING - 90 DEG 1
? WB0599 FITTING, O-RING - STRAIGHT 3
? MM0086 CAPSCREW - M16 X 2.00 X 60 8
? MM0706 FLAT WASHER - M16 (HARDENED) 8
? MM0474 LOCKWASHER - M16 8
? MM0181 NUT - M16 8
? EC3036 CLAMP HALF 4
? WA4710 CLAMP, HYDRA-ZORB - 1 1/2" 1
? EG0564 TUBE 1
? VM0319 PLUG, O-RING 1
? WB0586 FITTING, O-RING - STRAIGHT 1
? C1603 CAPSCREW - 3/8" - 16NC X 1 1/4" 12
? C0312 LOCKWASHER - 3/8" 12
? PB6528 COUPLING, DIAGNOSTIC 1
? PB6041 CAP, DUST 1
? WB0581 FITTING, O-RING - STRAIGHT 1
? MM0601 CAPSCREW - M8 X 1.25 X 70 2
? MM0470 LOCKWASHER - M8 2
? EG1119 BLOCK, MANIFOLD 1
? WB0537 FITTING, O-RING - 45 DEG 1
? WA2567 NUT, FITTING CAP 1
? WB0584 FITTING, O-RING - STRAIGHT 3
? TF8077 CLAMP, SPLIT FLANGE 6
? VG9097 O-RING 3
? C1608 CAPSCREW - 7/16" - 14NC X 1" 3
? PB1255 FLAT WASHER - 7/16" (HARDENED) 3
? WA4850 FITTING 1
? ED3830 ACCUMULATOR ASSEMBLY (SEE INDEX) 2 60017
? HA6618 HOSE 1
? WB1065 FITTING, O-RING (SWIVEL) 1
? PC0008 VALVE, CHECK 1
? WB1064 CAPSCREW - FITTING 1
? WB0585 ADAPTOR, FITTING 1
? WB0387 FITTING, TEE 1
? WA4710 CLAMP 2
? WB0583 FITTING, ADAPTOR 2
? WA5658 FITTING, SWIVEL ADAPTOR 1
? WB0375 FITTING, 90 DEG 1
