Номер на схеме |
Каталожный номер |
Название |
Количество |
Детали |
|
|
|
? |

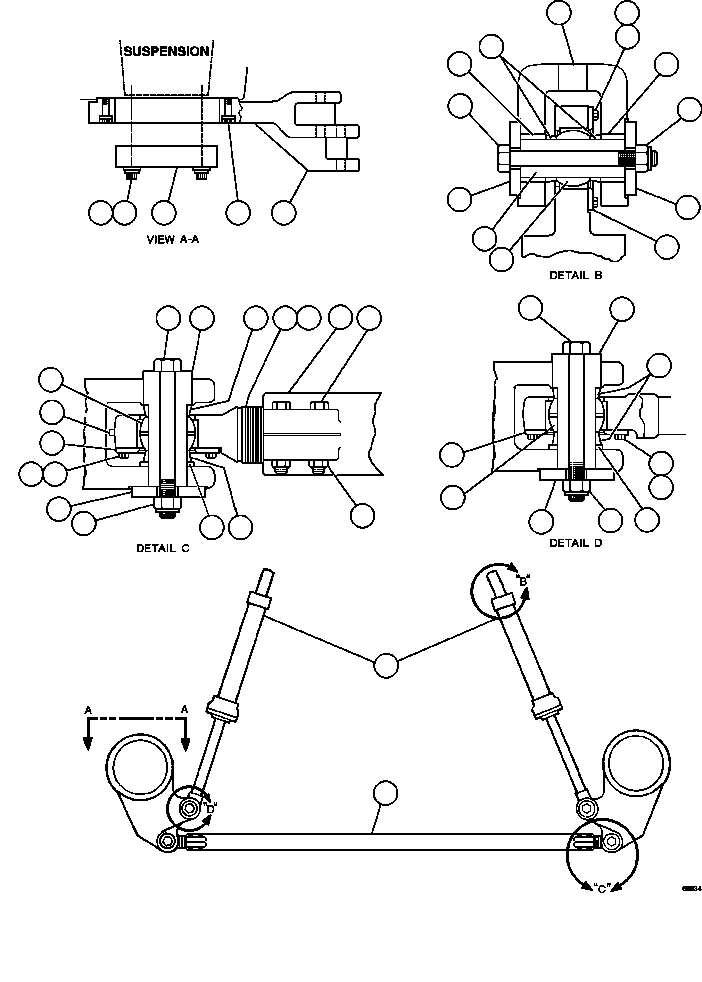

ED0575 |
TIE ROD ASSEMBLY |
1 |
|
|
|
|
? |
EB8801 |
• ROD, TIE |
1 |
|
|
|
|
? |
ED0573 |
• ROD END, L.H. |
1 |
|
|
|
|
? |
ED0572 |
• ROD END, R.H. |
1 |
|
|
|
|
? |
VN9140 |
• CAPSCREW - 3/4" - 10NC X 4" - G8 |
4 |
|
|
|
|
? |
VL2993 |
• LOCKNUT - 3/4" - G8 |
4 |
|
|
|
|
? |
PC0827 |
• BUSHING, BALL (1)/(2) |
2 |
|
|
|
|
? |
ED3846 |
• RETAINER |
2 |
|
|
|
|
? |
C1540 |
• LOCKWASHER - 1/2" |
16 |
|
|
|
|
? |
C1613 |
• CAPSCREW - 1/2" - 13NC X 1 1/4" |
16 |
|
|
|
|
? |
TG3397 |
• ADAPTOR (LUB HOLE) |
2 |
|
|
|
|
? |
ED7913 |
SPACER (1)/(2) |
12 |
|
|
|
|
? |
EF3387 |
FLAT WASHER (HARDENED) (1)/(2) |
4 |
|
|
|
|
? |
EG1106 |
PIN (1) |
4 |
|
|
|
|
? |
TY2239 |
RETAINER (1)/(2) |
8 |
|
|
|
|
? |
WB0926 |
CAPSCREW - 1" - 8NC X 10 1/2" - G8 (1)/(2) |
6 |
|
|
|
|
? |
VH8186 |
LOCKNUT - 1" - G8 (1)/(2) |
6 |
|
|
|
|
? |
PC0827 |
BUSHING, BALL |
2 |
|
|
|
|
? |
ED3846 |
RETAINER |
2 |
|
|
|
|
? |
C1540 |
LOCKWASHER - 1/2" |
16 |
|
|
|
|
? |
C1613 |
CAPSCREW - 1/2" - 13NC X 1 1/4" |
16 |
|
|
|
|
? |
ED6520 |
PIN (2) |
2 |
|
|
|
|
? |
ED7914 |
SLEEVE, BRACKET - STEERING CYLINDER (2) |
4 |
|
|
|
|
? |
ED5913 |
MOUNT, STEERING CYLINDER - L.H. |
1 |
|
|
|
|
? |
ED5912 |
MOUNT, STEERING CYLINDER - R.H. |
1 |
|
|
|
|
? |
EF2753 |
ARM, STEERING - L.H. |
1 |
|
|
|
|
? |
EF2754 |
ARM, STEERING - R.H. |
1 |
|
|
|
|
? |
WA4817 |
CAPSCREW - 1 1/4" 7NC X 5" (12 PT) |
38 |
|
|
|
|
? |
ED7912 |
PLATE, RETAINER |
1 |
|
|
|
|
? |
TY2149 |
FLAT WASHER (HARDENED) |
14 |
|
|
|
|
? |
EH7931 |
STEERING CYLINDER ASSEMBLY (SEE FIG 60018) |
2 |
|
60018 |
|
|
? |
AK3881 |
NOTE: (1) INCLUDED IN AK3881 TIE ROD AND |
|
|
|
|
|
? |
|
• • STEERING PIN KIT. |
|
|
|
|
|
? |
AK3882 |
• (2) INCLUDED IN AK3882 STEERING CYL PIN KIT. |
|
|
|
|
