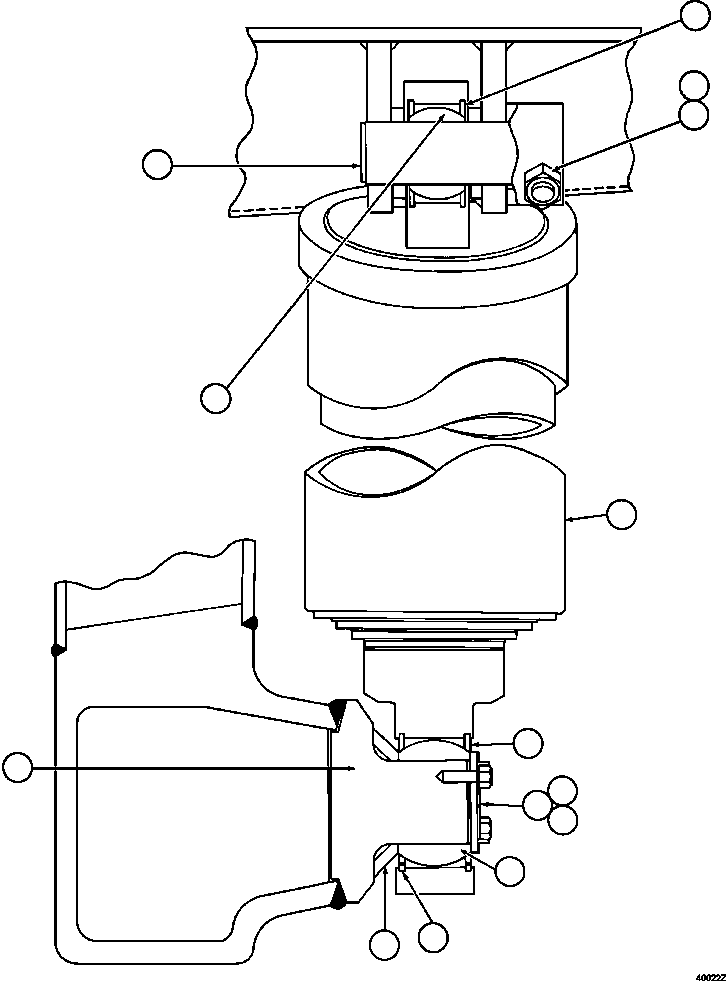

Номер на схеме |
Каталожный номер |
Название |
Количество |
Детали |
|
|
|
? |
ED0565 |
PIN, UPPER HOIST |
2 |
|
|
|
|
? |
VL4293 |
BUSHING, BALL |
2 |
|
|
|
|
? |
VN9350 |
RING, RETAINER |
4 |
|
|
|
|
? |
MM0149 |
CAPSCREW - M36 X 4.00 X 200 |
2 |
|
|
|
|
? |
MM0700 |
LOCKNUT - M36 X 4.00 |
2 |
|
|
|
|
? |
EH4449 |
HOIST CYLINDER ASSEMBLY (SEE INDEX) |
2 |
|
60304 |
|
|
? |
ED3070 |
SHAFT, HOIST BEARING |
2 |
|
|
|
|
? |
VN9353 |
RING, RETAINER |
4 |
|
|
|
|
? |
EF4836 |
PLATE, RETAINER |
2 |
|
|
|
|
? |
EF4837 |
PLATE, LOCKING |
2 |
|
|
|
|
? |
MM0021 |
CAPSCREW - M20 X 2.50 X 40 |
6 |
|
|
|
|
? |
PB8931 |
BUSHING, BALL |
2 |
|
|
|
|
? |
EF4835 |
SPACER, BEARING |
2 |
|
|
|
|
? |
|
NOTE: NS = NOT SHOWN |
|
|
|
|
|
? |
TZ2549 |
COVER, HOIST CYLINDER - HOSES |
2 |
|
|
|
|
? |
TZ3107 |
CLAMP, COVER |
2 |
|
|
|
|
? |
|
(QUANTITIES SHOWN ARE FOR ONE SIDE ONLY.) |
|
|
|
|
