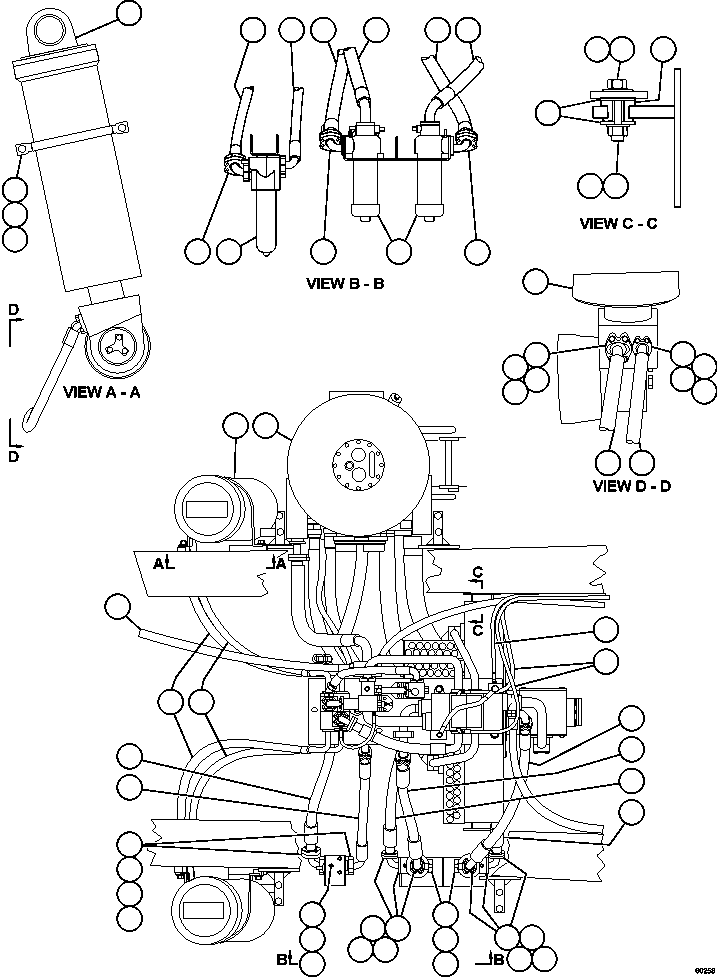

Номер на схеме |
Каталожный номер |
Название |
Количество |
Детали |
|
|
|
? |
EH4449 |
HOIST CYLINDER ASSEMBLY (SEE INDEX) |
2 |
|
60304 |
|
|
? |
EG5017 |
HYDRAULIC TANK ASSEMBLY (SEE FIG 60049) |
1 |
|
60049 |
|
|
? |
C1609 |
CAPSCREW - 7/16" - 14NC X 1 1/2" |
4 |
|
|
|
|
? |
C5775 |
LOCKWASHER - 7/16" |
4 |
|
|
|
|
? |
TF3237 |
CLAMP, SPLIT FLANGE |
2 |
|
|
|
|
? |
HA7288 |
HOSE |
1 |
|
|
|
|
? |
HA7075 |
HOSE |
2 |
|
|
|
|
? |
C1614 |
CAPSCREW - 1/2" - 13NC X 1 1/2" |
28 |
|
|
|
|
? |
C1540 |
LOCKWASHER - 1/2" |
28 |
|
|
|
|
? |
TF3231 |
CLAMP, SPLIT FLANGE |
14 |
|
|
|
|
? |
WA0187 |
O-RING |
8 |
|
|
|
|
? |
TL5327 |
CAPSCREW - 1/2" - 13NC X 1 1/2" |
11 |
|
|
|
|
? |
HA6340 |
HOSE |
2 |
|
|
|
|
? |
HA6330 |
HOSE |
2 |
|
|
|
|
? |
HA7405 |
HOSE |
1 |
|
|
|
|
? |
C1643 |
CAPSCREW - 3/4" - 10NC X 1 3/4" (1) |
4 |
|
|
|
|
? |
C1542 |
LOCKWASHER - 3/4" (1) |
4 |
|
|
|
|
? |
TY9627 |
CLAMP (1) |
2 |
|
|
|
|
? |
PB8318 |
ELBOW |
2 |
|
|
|
|
? |
EH1241 |
FILTER ASSEMBLY (HOIST/BRAKE COOLING) |
2 |
|
|
|
|
? |
AK3570 |
• ELEMENT |
2 |
|
|
|
|
? |
PB7797 |
• SWITCH, DIFFERENTIAL |
2 |
|
|
|
|
? |
TG4083 |
• O-RING, HEAD TO TUBE |
2 |
|
|
|
|
? |
BF2196 |
• RING, BACKUP - HEAT TO TUBE |
2 |
|
|
|
|
? |
PB6770 |
• COUPLING, DIAGNOSTIC |
2 |
|
|
|
|
? |
HA7590 |
HOSE |
1 |
|
|
|
|
? |
HA6250 |
HOSE |
1 |
|
|
|
|
? |
HA6253 |
HOSE |
1 |
|
|
|
|
? |
HA7602 |
HOSE |
1 |
|
|
|
|
? |
C1637 |
CAPSCREW - 5/8" - 11NC X 3 3/4" |
3 |
|
|
|
|
? |
WA0361 |
FLAT WASHER - 5/8" (HARDENED) |
3 |
|
|
|
|
? |
TD5915 |
FLAT WASHER |
6 |
|
|
|
|
? |
C1541 |
LOCKWASHER - 5/8" |
15 |
|
|
|
|
? |
C1525 |
NUT - 5/8" - 11NC |
2 |
|
|
|
|
? |
VG7000 |
MOUNTING, CENTER BONDED |
3 |
|
|
|
|
? |
EH1242 |
FILTER ASSEMBLY (STEERING) |
1 |
|
|
|
|
? |
AK3572 |
• ELEMENT |
1 |
|
|
|
|
? |
PB7797 |
• SWITCH, DIFFERENTIAL |
1 |
|
|
|
|
? |
BF4491 |
• KIT, CORE |
1 |
|
|
|
|
? |
WA0100 |
• O-RING - HEAD TO BOWL |
1 |
|
|
|
|
? |
PB6770 |
• COUPLING, DIAGNOSTIC |
1 |
|
|
|
|
? |
EH1249 |
TUBE |
1 |
|
|
|
|
? |
HA7588 |
HOSE |
1 |
|
|
|
|
? |
HA7587 |
HOSE |
1 |
|
|
|
|
? |
WA0360 |
FLAT WASHER |
11 |
|
|
|
|
? |
EH1551 |
PAD, RUBBER |
4 |
|
|
|
|
? |
EH1552 |
PAD, RUBBER |
1 |
|
|
|
|
? |
C1631 |
CAPSCREW - 5/8" - 11NC X 2 1/4" |
12 |
|
|
|
|
? |
WA5629 |
CLAMP, FLANGE |
6 |
|
|
|
|
? |
VG9095 |
O-RING |
3 |
|
|
|
|
? |
|
NOTE: (1) USED TO HOLDING CYLINDER FOR SHIPPING ONLY. |
|
|
|
|
