Номер на схеме |
Каталожный номер |
Название |
Количество |
Детали |
|
|
|
? |
EJ9951 |

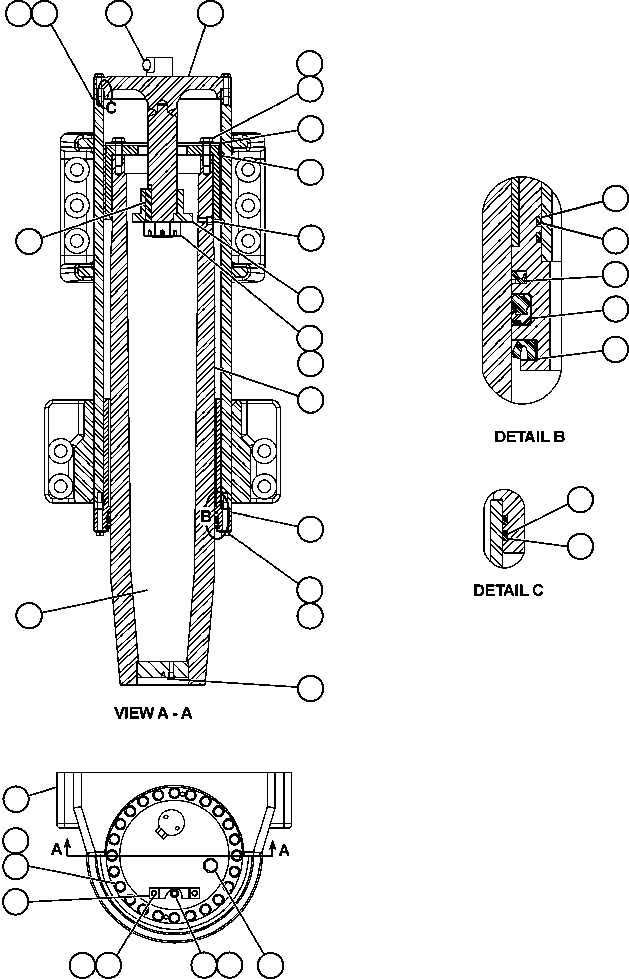

FRONT SUSPENSION ASSEMBLY (SEE FIG 55812) |
1 |
|
55812 |
|
|
? |
TZ9718 |
• HOUSING |
1 |
|
|
|
|
? |
VN9087 |
• CAPSCREW - 5/8" - 11NC X 2 1/2" |
24 |
|
|
|
|
? |
WA0361 |
• FLAT WASHER - 5/8" |
48 |
|
|
|
|
? |
TM9278 |
• PROTECTOR |
1 |
|
|
|
|
? |
C1602 |
• CAPSCREW - 3/8" - 16NC X 1" |
2 |
|
|
|
|
? |
C0312 |
• LOCKWASHER - 3/8" |
2 |
|
|
|
|
? |
PB2194 |
• CHARGING VALVE ASSEMBLY (1)/(2) |
1 |
|
|
|
|
? |
TD7179 |
• • CORE, VALVE |
1 |
|
|
|
|
? |
TR9993 |
• • CAP, VALVE |
1 |
|
|
|
|
? |
TF1144 |
• • O-RING (VALVE BODY) |
1 |
|
|
|
|
? |
WA0052 |
• • O-RING (VALVE STEM) |
1 |
|
|
|
|
? |
VD5076 |
• GASKET (1)/(2) |
1 |
|
|
|
|
? |
TY8879 |
• PLUG, VENT |
1 |
|
|
|
|
? |
WA2892 |
• PLATE, DANGER - HIGH PRESSURE CYLINDER |
2 |
|
|
|
|
? |
R1073 |
• DRIVE SCREW - #6 - 32NC X 3/16" |
8 |
|
|
|
|
? |
TZ8637 |
• PLUG, SENSOR |
1 |
|
|
|
|
? |
EH7341 |
• CAP, SUSPENSION |
1 |
|
|
|
|
? |
VN9105 |
• CAPSCREW - 7/8" - 9NC X 3" |
12 |
|
|
|
|
? |
WA0363 |
• FLAT WASHER - 7/8" |
12 |
|
|
|
|
? |
TZ1626 |
• PLATE |
1 |
|
|
|
|
? |
EH7342 |
• BEARING, UPPER |
1 |
|
|
|
|
? |
H2981 |
• BALL, STEEL - 3/4" |
2 |
|
|
|
|
? |
EH6529 |
• STOP, PISTON |
1 |
|
|
|
|
? |
VW4451 |
• NUT, WHEEL |
1 |
|
|
|
|
? |
VC2629 |
• PIN |
1 |
|
|
|
|
? |
EJ9024 |
• PISTON |
1 |
|
|
|
|
? |
EJ9021 |
• BEARING, LOWER |
1 |
|
|
|
|
? |
VN9129 |
• CAPSCREW - 5/8" - 11NC X 3 3/4" |
24 |
|
|
|
|
? |
VM0314 |
• PLUG, O-RING BOSS - 3/8" |
1 |
|
|
|
|
? |
VJ3911 |
• OIL, SUSPENSION (5 GALLON CAN) |
4 |
|
|
|
|
? |
AK3761 |
• ADDITIVE, OIL (5 GALLON CAN) |
1 |
|
|
|
|
? |
EH6536 |
• KEY, SQUARE |
1 |
|
|
|
|
? |
WA0105 |
• SEAL, O-RING (1) |
4 |
|
|
|
|
? |
WA1280 |
• RING, BACKUP (1) |
4 |
|
|
|
|
? |
PC1205 |
• SEAL, ROD BUFFER - 13.25" (1) |
1 |
|
|
|
|
? |
PC1204 |
• SEAL, ROD DOUBLE LIP - 13.25" (1) |
1 |
|
|
|
|
? |
PC1206 |
• SEAL, WIPER - 13.25" (1) |
1 |
|
|
|
|
? |
|
NOTE: NS = NOT SHOWN |
|
|
|
|
|
? |
WA3925 |
DECAL, HYDRAIR II |
1 |
|
|
|
|
? |
AK4942 |
NOTE: (1) INCLUDED IN AK4942 SUSPENSION SEAL KIT |
|
|
|
|
|
? |
RK1887 |
(2) INCLUDED IN RK1887 CHARGING VALVE KIT. |
|
|
|
|
|
? |
|
(QUANTITIES SHOWN ARE FOR ONE SIDE ONLY.) |
|
|
|
|
