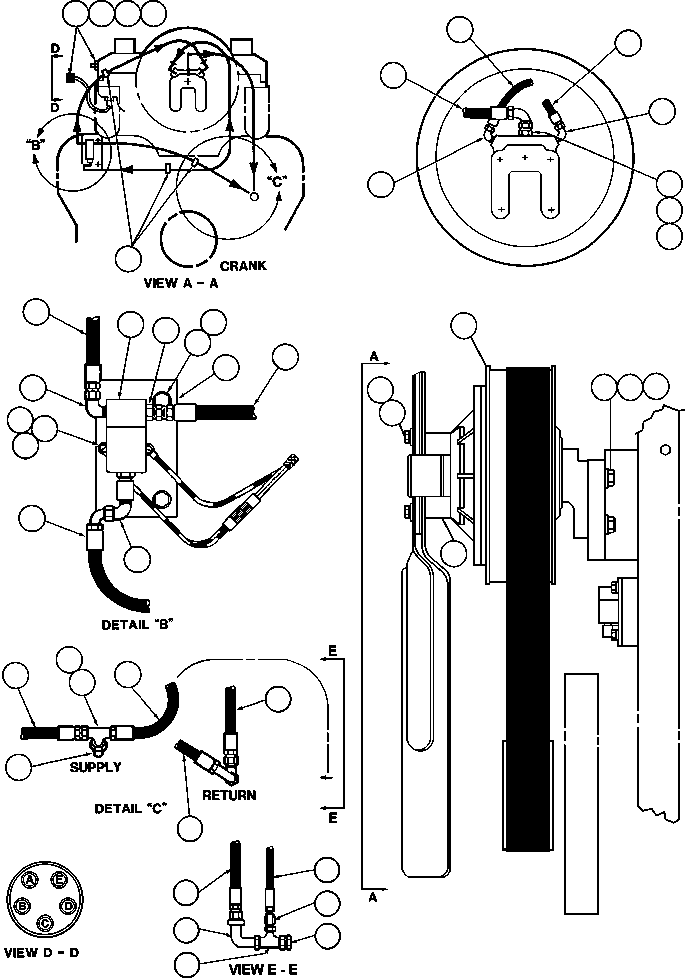

Номер на схеме |
Каталожный номер |
Название |
Количество |
Детали |
|
|
|
? |
|
CAPSCREW - 1/2" - 13NC X 4 1/2" (1) |
6 |
|
|
|
|
? |
|
LOCKWASHER - 1/2" (1) |
6 |
|
|
|
|
? |
AK1940 |
CLUTCH, FAN (SEE INDEX) |
1 |
|
15243 |
|
|
? |
|
CAPSCREW - 5/8" - 11NC X 2" (1) |
4 |
|
|
|
|
? |
|
LOCKWASHER - 5/8" (1) |
4 |
|
|
|
|
? |
|
FLAT WASHER - 5/8" (1) |
4 |
|
|
|
|
? |
|
FITTING, TUBE (1) |
3 |
|
|
|
|
? |
|
HOSE (1) |
1 |
|
|
|
|
? |
|
HOSE (1) |
1 |
|
|
|
|
? |
|
FITTING, STRAIGHT (1) |
2 |
|
|
|
|
? |
|
HOSE (1) |
1 |
|
|
|
|
? |
|
FITTING, TUBE (1) |
1 |
|
|
|
|
? |
|
SENSOR, THERMO (1) |
1 |
|
|
|
|
? |
|
(NOT USED THIS APPLICATION) |
|
|
|
|
|
? |
|
(NOT USED THIS APPLICATION) |
|
|
|
|
|
? |
|
(NOT USED THIS APPLICATION) |
|
|
|
|
|
? |
|
CLAMP (1) |
3 |
|
|
|
|
? |
|
VALVE, SOLENOID (1) |
1 |
|
|
|
|
? |
|
FITTING, TUBE (1) |
1 |
|
|
|
|
? |
|
CAPSCREW - 3/8" - 16NC X 1 1/2" (1) |
2 |
|
|
|
|
? |
|
LOCKWASHER - 3/8" (1) |
2 |
|
|
|
|
? |
|
PLATE, MOUNTING (1) |
1 |
|
|
|
|
? |
|
HOSE (1) |
1 |
|
|
|
|
? |
|
HOSE (1) |
1 |
|
|
|
|
? |
|
MACHINE SCREW - #8 X 32NC X 3/8" (1) |
2 |
|
|
|
|
? |
|
FLAT WASHER - #8 (1) |
2 |
|
|
|
|
? |
|
LOCKWASHER - #8 (1) |
2 |
|
|
|
|
? |
|
FITTING, TEE (1) |
1 |
|
|
|
|
? |
|
FITTING, FLARE (1) |
1 |
|
|
|
|
? |
|
FITTING, TEE (1) |
1 |
|
|
|
|
? |
|
ELBOW - 90 DEG (1) |
1 |
|
|
|
|
? |
|
FITTING, TUBE (1) |
1 |
|
|
|
|
? |
VS7850 |
SPACER, FAN |
1 |
|
|
|
|
? |
|
FITTING, FLARE (1) |
1 |
|
|
|
|
? |
|
COUPLING, PIPE (1) |
1 |
|
|
|
|
? |
|
NIPPLE, CLOSE (1) |
1 |
|
|
|
|
? |
|
NOTE: (1) SUPPLIED WITH ENGINE. |
|
|
|
|
