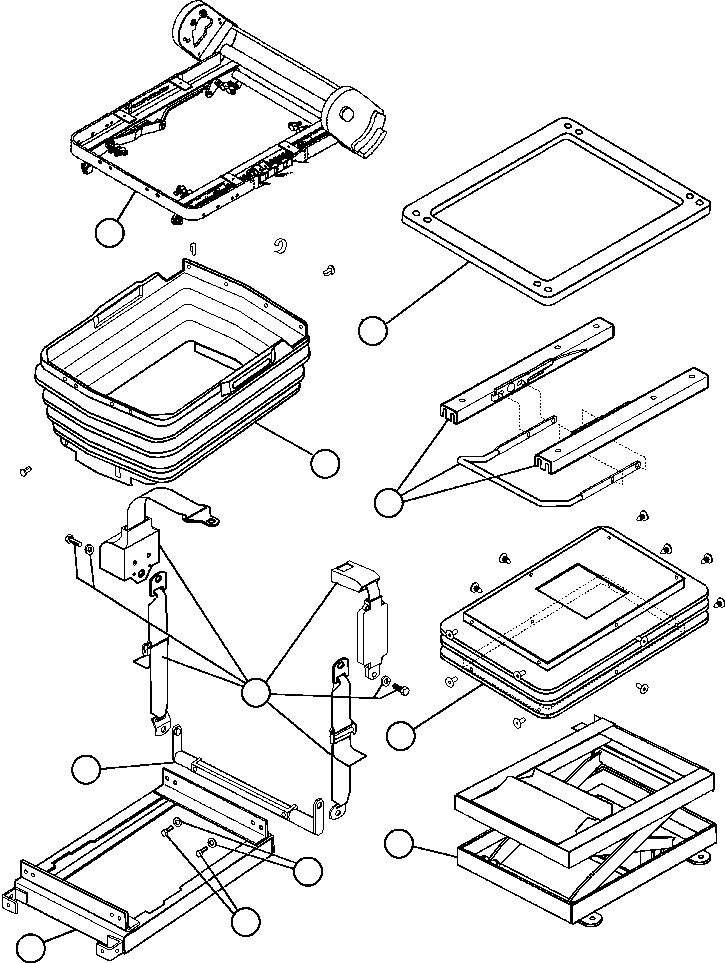

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | XA2237 | SEAT FRAME ASSEMBLY (SEE FOLLOWING THREE PAGES) | 1 | ||||
| ? | XA2240 | KIT, SEAT FRAME BOOT | 1 | ||||
| ? | • BOOT, SEAT FRAME (1) | 1 | |||||
| ? | BF0518 | • KIT, HARDWARE | 1 | ||||
| ? | VE8862 | SPACER, STATIC | 1 | ||||
| ? | VE8873 | SPACER, ADAPTOR PLATE | 4 | ||||
| ? | VE8871 | CAPSCREW - M8 X 25 | 4 | ||||
| ? | XA2239 | BAR, INTERMEDIATE CONNECTING POINTS | 1 | ||||
| ? | VE8866 | KIT, SEAT BELT | 1 | ||||
| ? | BF0513 | • KIT, SEAT BELT | 1 | ||||
| ? | BF0514 | • KIT, TETHER | 1 | ||||
| ? | VE8863 | KIT, SLIDE | 1 | ||||
| ? | BF0526 | • HANDLE, SLIDE | 1 | ||||
| ? | BF0527 | • SLIDE - R.H. | 1 | ||||
| ? | BF0528 | • SLIDE - L.H. | 1 | ||||
| ? | VE8708 | SPACER (HANDLE UP) | 4 | ||||
| ? | VE8870 | CAPSCREW - M8 X 20 (ADAPTOR PLATE & SLIDE MOUNTING) | 8 | ||||
| ? | VE8868 | PLATE, ADAPTOR | 1 | ||||
| ? | VE4565 | KIT, BOOT | 1 | ||||
| ? | • BOOT (1) | 1 | |||||
| ? | VE8747 | • KIT, HARDWARE | 1 | ||||
| ? | XA2238 | SEAT SUSPENSION ASSEMBLY (SEE FOLLOWING FOURTH PAGE) | 1 | ||||
| ? | VE8875 | CAPSCREW - M8 X 16 (ICP BAR MOUNTING) | 2 | ||||
| ? | VE8872 | LOCKWASHER - M8 (ICP BAR & SUSPENSION MOUNTING) | 6 | ||||
| ? | NOTE: NS = NOT SHOWN | ||||||
| ? | LA0323 | CAPSCREW - (SEAT BACK TO SEAT FRAME) | 2 | ||||
| ? | LA0325 | LOCKNUT, NYLON (SEAT PAN/SEAT FRAME) | 12 | ||||
| ? | LA0324 | SCREW, SEAT PAN | 2 | ||||
| ? | XA2252 | NUT, NYLOCK - M5 | 2 | ||||
| ? | XA2253 | SPACER | 4 | ||||
| ? | XA2254 | WASHER, SLIDE | 4 | ||||
| ? | XA2255 | CAPSCREW - M8 X 25 | 4 | ||||
| ? | NOTE: (1) NOT SERVICED SEPARATELY. |
