Содержание Dump Trucks Komatsu AFE47-BW 730E S/N A30230 & A30232-A30235 & A30238-A30242 ROBE RIVER(AFE47-BW)

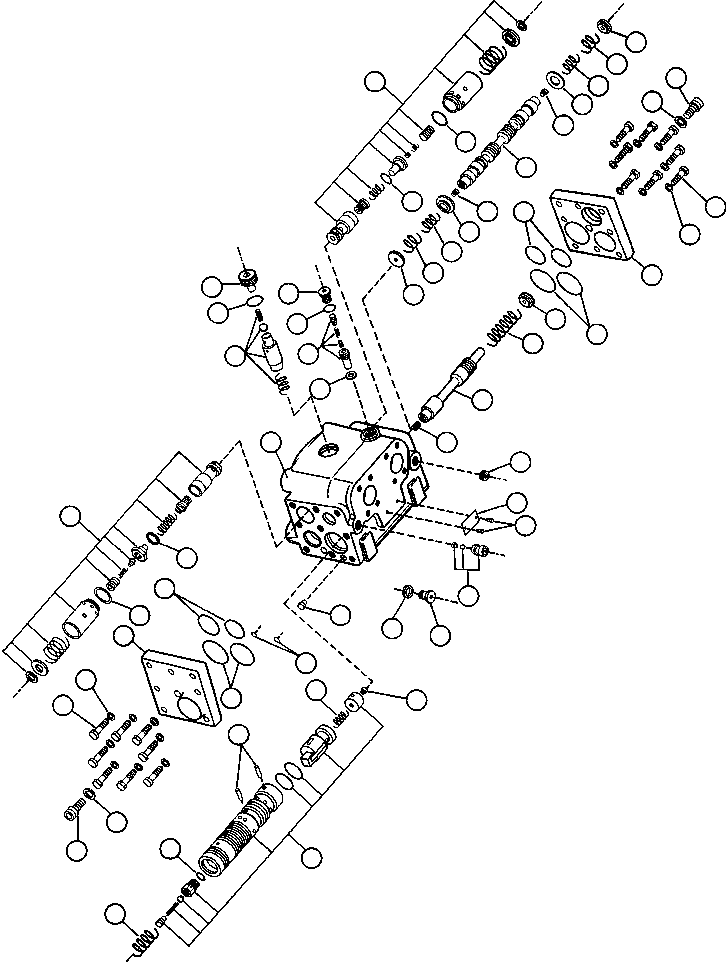

FLOW AMPLIFIER (PB9932)(122 : 35461)
Номер на схеме Каталожный номер Название Количество Детали
? VE4146 O-RING (1) 4
? VE4147 O-RING (1) 4
? VE4148 O-RING (1) 2
? VE4149 O-RING (1) 1
? VE4150 SEAL (1) 1
? VE4151 SEAL (1) 1
? VE4152 O-RING (1) 2
? VE4153 O-RING (1) 2
? VE4154 O-RING (1) 1
? HOUSING, SPOOLS (2) 1
? VE4155 SCREW, ALLENHEAD 2
? VE4156 WASHER, SPRING 2
? VE4157 CAPSCREW 16
? VE4158 WASHER, SPRING 16
? VE4159 COVER 1
? VE4160 COVER 1
? VE4181 SPRING 1
? VE4182 SPRING 1
? VE4163 VALVE, REGULATOR 1
? VE4164 PLUG 1
? VE7274 VALVE ASSEMBLY 2
? VE4166 STOP 1
? VE4167 STOP 2
? VE4168 CONTROL, SPRING 2
? DRIVE SCREW (2) 2
? NAME PLATE (2) 1
? VE4169 ORIFICE 1
? VE4170 SPRING 2
? VE4171 SPRING 2
? VE4172 SPRING 1
? VE4173 ORIFICE 2
? VE4174 ORIFICE 1
? VE4175 ORIFICE 1
? VE4176 VALVE, CHECK 1
? VE4177 PLUG 1
? VE4178 WASHER 1
? PLUG (2) 1
? VE7275 PLUG 1
? VE4180 VALVE 1
? VE4183 NOTE: (1) INCLUDED IN VE4183 SEAL KIT.
? (2) NOT SERVICED SEPARATELY.
