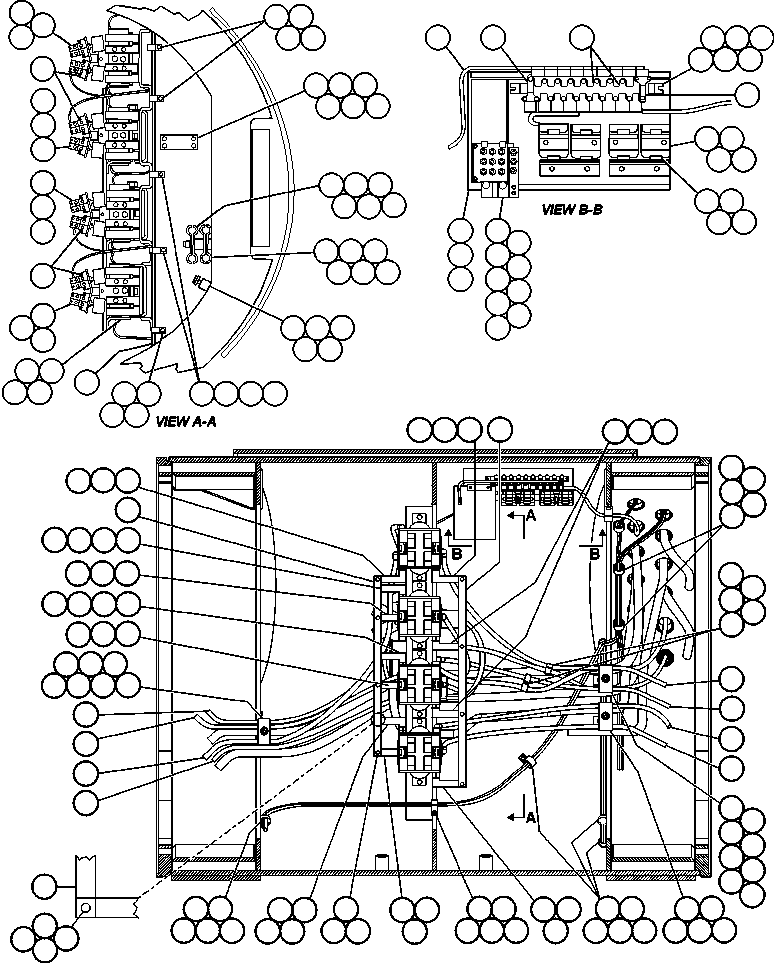

Номер на схеме |
Каталожный номер |
Название |
Количество |
Детали |
|
|
|
? |
CH2582 |
CABLE - 7S1 |
1 |
|
|
|
|
? |
CH2585 |
CABLE - 7SSX1 |
1 |
|
|
|
|
? |
CH2584 |
CABLE - 7SX1 |
1 |
|
|
|
|
? |
CH2583 |
CABLE - 7SS1 |
1 |
|
|
|
|
? |
EG0798 |
BAR, BUS |
3 |
|
|
|
|
? |
TG5720 |
CAPSCREW - 3/8" - 16NC X 1" |
38 |
|
|
|
|
? |
TC1231 |
LOCKWASHER - 3/8" |
49 |
|
|
|
|
? |
EG0799 |
BAR, BUS |
1 |
|
|
|
|
? |
EG0797 |
BAR, BUS - R.H. |
4 |
|
|
|
|
? |
EG0796 |
BAR, BUS - L.H. |
4 |
|
|
|
|
? |
EG0800 |
BAR, BUS |
1 |
|
|
|
|
? |
TC6058 |
CLAMP |
11 |
|
|
|
|
? |
VH9969 |
STUD, WELD - 3/8" - 16NC X 3/4" |
11 |
|
|
|
|
? |
TR4436 |
FLAT WASHER - 3/8" |
17 |
|
|
|
|
? |
TC1233 |
NUT - 3/8" - 16NC |
11 |
|
|
|
|
? |
CH2586 |
CABLE - 7S2 |
1 |
|
|
|
|
? |
CH2589 |
CABLE - 7SSX2 |
1 |
|
|
|
|
? |
CH2587 |
CABLE - 7SS2 |
1 |
|
|
|
|
? |
CH2588 |
CABLE - 7SX2 |
1 |
|
|
|
|
? |
ED8936 |
CLEAT, CABLE |
9 |
|
|
|
|
? |
TN2590 |
SPACER |
10 |
|
|
|
|
? |
VA0609 |
SPACER |
4 |
|
|
|
|
? |
WA4863 |
FLAT WASHER - 5/8" |
5 |
|
|
|
|
? |
VC1390 |
LOCKWASHER - 5/8" |
5 |
|
|
|
|
? |
ED8937 |
CLEAT, CABLE |
7 |
|
|
|
|
? |
TV1749 |
NUT - 5/8" - 11NC |
5 |
|
|
|
|
? |
VN6188 |
STUD |
1 |
|
|
|
|
? |
MM0056 |
CAPSCREW - M10 X 1.50 X 40 |
15 |
|
|
|
|
? |
MM0471 |
LOCKWASHER - M10 |
15 |
|
|
|
|
? |
MM0461 |
FLAT WASHER - M10 |
18 |
|
|
|
|
? |
EG2070 |
STUD |
1 |
|
|
|
|
? |
WA4649 |
CLAMP |
6 |
|
|
|
|
? |
MM0469 |
LOCKWASHER - M6 |
11 |
|
|
|
|
? |
MM0459 |
FLAT WASHER - M6 |
13 |
|
|
|
|
? |
MM0717 |
NUT - M6 X 1.00 |
5 |
|
|
|
|
? |
PB7875 |
RESISTOR |
1 |
|
|
|
|
? |
R3869 |
CAPSCREW - 5/16" - 18NC X 5/8" |
4 |
|
|
|
|
? |
EF2685 |
CABLE - 7SSX1 |
1 |
|
|
|
|
? |
EF2684 |
CABLE - 7S2 |
1 |
|
|
|
|
? |
TF7161 |
FLAT WASHER - 5/16" |
4 |
|
|
|
|
? |
C1538 |
LOCKWASHER - 5/16" |
4 |
|
|
|
|
? |
VN6187 |
STUD |
1 |
|
|
|
|
? |
724046 |
STUD |
1 |
|
|
|
|
? |
TG2960 |
CLAMP |
2 |
|
|
|
|
? |
VY8331 |
CLAMP |
1 |
|
|
|
|
? |
PB9229 |
REVERSER ASSEMBLY (SEE INDEX) |
1 |
|
55196 |
|
|
? |
C1614 |
CAPSCREW - 1/2" - 13NC X 1 1/2" |
8 |
|
|
|
|
? |
C1540 |
LOCKWASHER - 1/2" |
8 |
|
|
|
|
? |
PB0140 |
TIE, NYLON |
4 |
|
|
|
|
? |
EG2068 |
SWITCH, DTMF (1) |
2 |
|
|
|
|
? |
EG2069 |
SWITCH, DTMF (2) |
1 |
|
|
|
|
? |
EG2430 |
HARNESS - (DIESEL TROLLEY SWITCH TO TB61) |
1 |
|
|
|
|
? |
EB7417 |
BAR, BUS |
2 |
|
|
|
|
? |
EB7418 |
BAR, BUS |
2 |
|
|
|
|
? |
PB5732 |
BOARD, TERMINAL |
1 |
|
|
|
|
? |
VN7139 |
MACHINE SCREW - #10 - 24NC X 3/4" |
20 |
|
|
|
|
? |
H2643 |
LOCKWASHER - #10 |
20 |
|
|
|
|
? |
SC3117 |
FLAT WASHER - #10 |
20 |
|
|
|
|
? |
EG2063 |
ANGLE, INSULATOR |
4 |
|
|
|
|
? |
PB4255 |
MODULE, SUPPRESSION |
9 |
|
|
|
|
? |
VM0065 |
RELAY |
1 |
|
|
|
|
? |
C5746 |
CAPSCREW - 1/4" - 20NC X 3/4" |
4 |
|
|
|
|
? |
C5774 |
LOCKWASHER - 1/4" |
4 |
|
|
|
|
? |
EG2936 |
COVER |
1 |
|
|
|
|
? |
PB6200 |
ADAPTOR |
2 |
|
|
|
|
? |
MM0025 |
CAPSCREW - M6 X 1.00 X 20 |
4 |
|
|
|
|
? |
VC5344 |
FLAT WASHER - #10 |
38 |
|
|
|
|
? |
VD7143 |
GROMMET |
1 |
|
|
|
|
? |
WA3367 |
NUT ASSEMBLY |
22 |
|
|
|
|
? |
TV4966 |
SCREW, MACHINE - #10 - 32NF |
16 |
|
|
|
|
? |
EG2435 |
SHIELD, INSULATOR |
1 |
|
|
|
|
? |
MM0034 |
CAPSCREW - M6 X 1.00 X 30 |
2 |
|
|
|
|
? |
MM0176 |
NUT - M6 X 1.00 |
2 |
|
|
|
|
? |
EH3281 |
BAR, BUS |
1 |
|
|
|
|
? |
MM0178 |
NUT - M10 X 1.50 |
3 |
|
|
|
|
? |
|
NOTE: (1) MAKE FROM PB9229 REVERSER. REMOVE |
|
|
|
|
|
? |
|
ONE BUS BAR. |
|
|
|
|
|
? |
|
(2) MAKE FROM PB9229 REVERSER. REMOVE |
|
|
|
|
|
? |
|
BOTH BUS BARS. |
|
|
|
|
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
