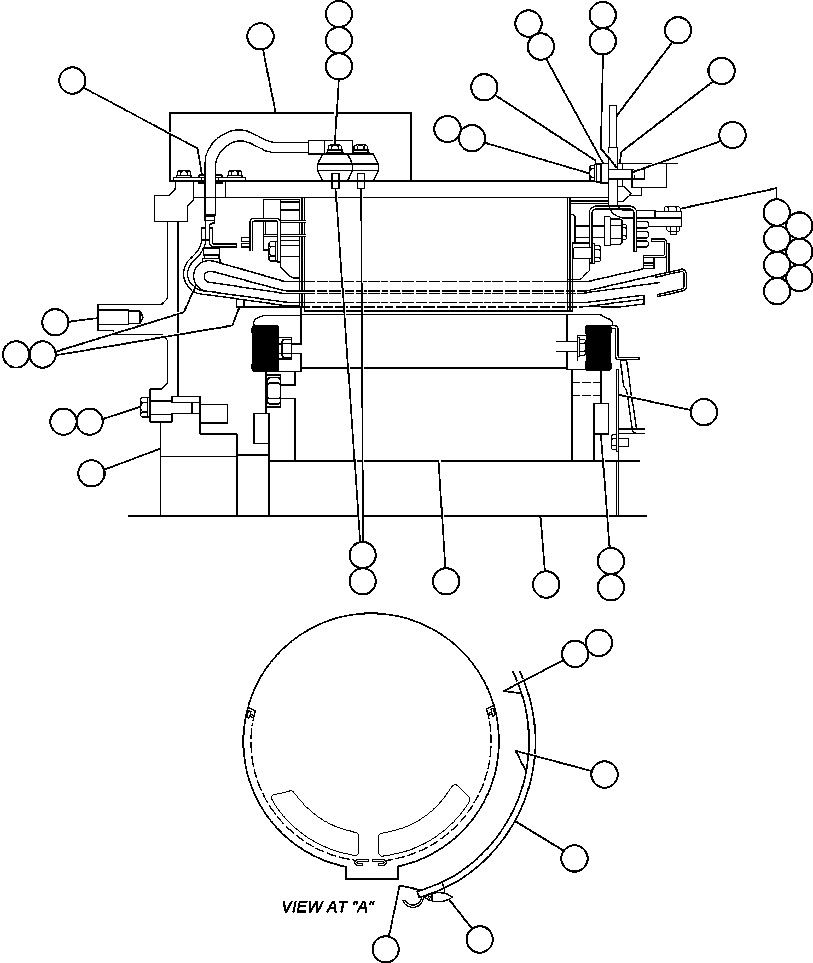

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | PB9266 | ALT/BLOWER ASSEMBLY | 1 | ||||
| ? | VS8253 | WEIGHT | |||||
| ? | VJ1071 | BALANCE WEIGHT | |||||
| ? | VE2756 | ROTOR CORE | 1 | ||||
| ? | VS7314 | SHAFT ROTOR | 1 | ||||
| ? | VE0688 | END PLATE | 1 | ||||
| ? | BF1481 | ADAPTOR | 1 | ||||
| ? | VJ2743 | ROLLPIN - .50 X 1.38 | 1 | ||||
| ? | VN7649 | CAPSCREW - 5/8" - 18NF X 2 1/4" | 15 | ||||
| ? | VE4489 | SCREW | 8 | ||||
| ? | VE1884 | STATOR REWIND KIT | 1 | ||||
| ? | VE0163 | TERTIARY KIT | 1 | ||||
| ? | TC1233 | NUT - 3/8" - 16NC | 4 | ||||
| ? | VE4515 | FLAT WASHER - 3/8" | 4 | ||||
| ? | VE4752 | CEMENT | |||||
| ? | VS6813 | INSULATION STUD | 4 | ||||
| ? | BF1483 | TERMINAL ASSEMBLY | 3 | ||||
| ? | BF0540 | NSS BLOCK, CLAMP | 1 | ||||
| ? | BF0541 | NSS BLOCK, CLAMP | 1 | ||||
| ? | BF0542 | NSS PLATE, CABLE | 1 | ||||
| ? | VE4696 | LOCKWASHER - 5/16" | 2 | ||||
| ? | BF0543 | CAP SCREW - .31C X 2.5 G5 | 2 | ||||
| ? | VE4648 | WASHER | 6 | ||||
| ? | VE4625 | CAPSCREW | 3 | ||||
| ? | VE4626 | NUT, HEX | 3 | ||||
| ? | VE3916 | PUTTY | |||||
| ? | VE4334 | TAPE | |||||
| ? | VE4335 | TAPE | |||||
| ? | VE3915 | VARNISH/GALLON | |||||
| ? | VE7272 | SEALANT | |||||
| ? | VS7945 | COVER | 2 | ||||
| ? | VS7026 | LATCH COVER | 2 | ||||
| ? | VS7946 | GASKET COVER | 2 | ||||
| ? | VS7947 | GASKET COVER | 2 | ||||
| ? | VS7948 | GASKET COVER | 2 | ||||
| ? | VE3035 | CEMENT | |||||
| ? | VS6838 | CONNECTION BOX | 1 | ||||
| ? | BF1480 | COLLECTOR RING ASSEMBLY | 1 | ||||
| ? | VE5185 | FLAT WASHER | |||||
| ? | VE4687 | LOCKWASHER - 3/8" | |||||
| ? | VE1200 | GROMMET | 4 | ||||
| ? | VE5184 | FLAT WASHER | |||||
| ? | (SEE FOLLOWING PAGES FOR BALANCE OF PB9266 ALTERNATOR | ||||||
| ? | ASSEMBLY COMPONENT PARTS.) |
