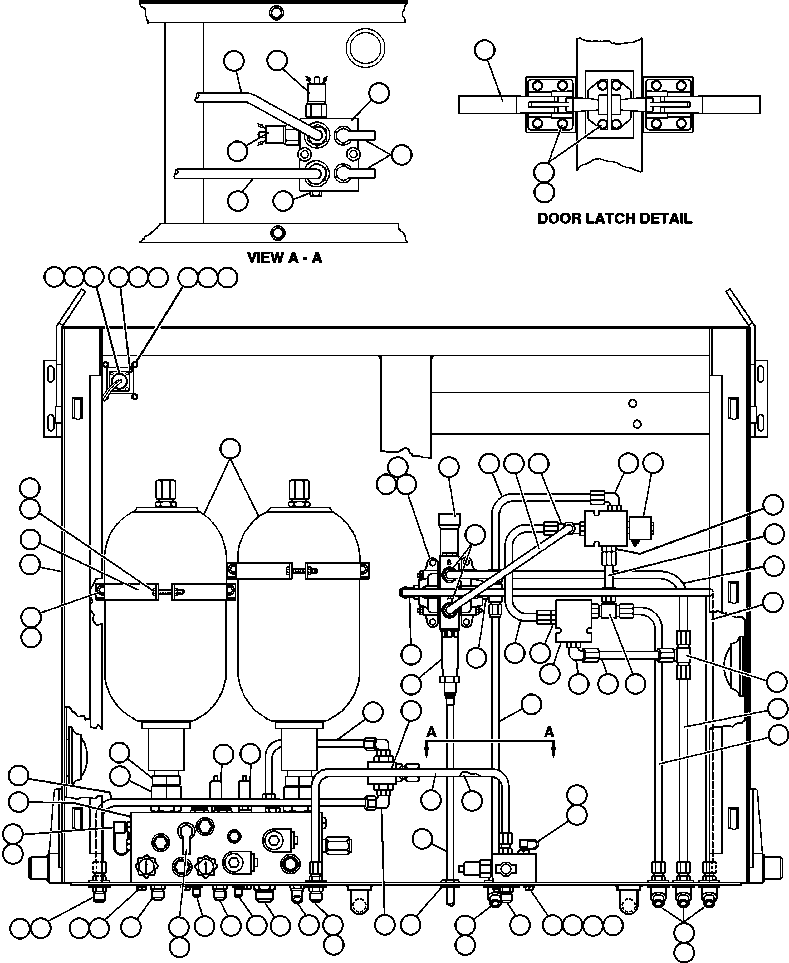

Номер на схеме |
Каталожный номер |
Название |
Количество |
Детали |
|
|
|
? |
WA5641 |
MACHINE SCREW - #4 - 40NC X 3/8" |
4 |
|
|
|
|
? |
SM2117 |
PLATE, NUT CONNECTOR SHELL |
1 |
|
|
|
|
? |
SM0721 |
GASKET |
1 |
|
|
|
|
? |
SF0542 |
MACHINE SCREW - #4 - 40NC X 5/16" |
1 |
|
|
|
|
? |
VD7129 |
LOCKWASHER - #4 |
1 |
|
|
|
|
? |
VN9717 |
NUT - #4 - 40NC |
1 |
|
|
|
|
? |
PB7058 |
ACCUMULATOR - 2.5 GAL (SEE INDEX) |
2 |
|
40016 |
|
|
? |
C1605 |
CAPSCREW - 3/8" - 16NC X 1 3/4" |
2 |
|
|
|
|
? |
TG9225 |
LOCKNUT - 3/8" - 16NC |
2 |
|
|
|
|
? |
TY8075 |
BRACKET, MOUNT |
2 |
|
|
|
|
? |
MM0056 |
CAPSCREW - M10 X 1.50 X 40 |
8 |
|
|
|
|
? |
MM0461 |
FLAT WASHER - M10 |
8 |
|
|
|
|
? |
MM0178 |
NUT - M10 X 1.50 |
4 |
|
|
|
|
? |
PB6922 |
HOIST PILOT VALVE (SEE INDEX) |
1 |
|
40064 |
|
|
? |
WB0567 |
FITTING, TEE |
1 |
|
|
|
|
? |
EK0677 |
TUBE |
1 |
|
|
|
|
? |
EC6227 |
TUBE |
1 |
|
|
|
|
? |
WB0557 |
FITTING, TEE |
2 |
|
|
|
|
? |
WB0508 |
FITTING, ELBOW - 90 DEG |
4 |
|
|
|
|
? |
PB7242 |
SOLENOID VALVE ASSEMBLY (SEE INDEX) |
1 |
|
40045 |
|
|
? |
EK0679 |
TUBE |
1 |
|
|
|
|
? |
EC6231 |
TUBE |
1 |
|
|
|
|
? |
EC6228 |
TUBE |
1 |
|
|
|
|
? |
WB0418 |
FITTING, TEE |
1 |
|
|
|
|
? |
EC3343 |
TUBE |
1 |
|
|
|
|
? |
EK0680 |
TUBE |
1 |
|
|
|
|
? |
EK0681 |
TUBE |
1 |
|
|
|
|
? |
PB8367 |
VALVE, PILOTED CHECK |
1 |
|
|
|
|
? |
EK0678 |
TUBE |
1 |
|
|
|
|
? |
EG0607 |
TUBE |
1 |
|
|
|
|
? |
PB6895 |
KIT, CONNECTOR |
1 |
|
|
|
|
? |
PB6894 |
CABLE |
1 |
|
|
|
|
? |
WB0602 |
FITTING, STRAIGHT ADAPTOR |
2 |
|
|
|
|
? |
WA4796 |
FITTING, O-RING |
2 |
|
|
|
|
? |
PB6528 |
COUPLING, DIAGNOSTIC |
5 |
|
|
|
|
? |
PB6041 |
CAP, DUST |
5 |
|
|
|
|
? |
EF8198 |
TUBE |
1 |
|
|
|
|
? |
EF8002 |
TUBE |
1 |
|
|
|
|
? |
PB6803 |
VALVE, SHUTTLE |
1 |
|
|
|
|
? |
VE2959 |
• O-RING |
2 |
|
|
|
|
? |
EF8197 |
TUBE |
1 |
|
|
|
|
? |
PB6784 |
SWITCH, PRESSURE - PARK BRAKE |
1 |
|
|
|
|
? |
PB6783 |
SWITCH, PRESSURE - ACCUMULATOR |
1 |
|
|
|
|
? |
EJ1726 |
CABINET, BRAKE |
1 |
|
|
|
|
? |
TY9260 |
TUBE |
1 |
|
|
|
|
? |
PB9654 |
MANIFOLD, BRAKE (SEE INDEX) |
1 |
|
55117 |
|
|
? |
WB0249 |
FITTING, ELBOW - 45 DEG |
4 |
|
|
|
|
? |
SR6301 |
CAPSCREW - 1/4" - 20NC X 2 3/4" |
2 |
|
|
|
|
? |
C5774 |
LOCKWASHER - 1/4" |
2 |
|
|
|
|
? |
VN9773 |
FLAT WASHER - 1/4" |
2 |
|
|
|
|
? |
C5780 |
NUT - 1/4" - 20NC |
2 |
|
|
|
|
? |
WB0585 |
FITTING, STRAIGHT ADAPTOR |
4 |
|
|
|
|
? |
SG2103 |
GROMMET, RUBBER |
1 |
|
|
|
|
? |
WB0430 |
FITTING, STRAIGHT ADAPTOR |
2 |
|
|
|
|
? |
TF2449 |
FLAT WASHER - 3/4" |
12 |
|
|
|
|
? |
WB0537 |
FITTING ELBOW - 45 DEG |
1 |
|
|
|
|
? |
WB0593 |
FITTING, STRAIGHT ADAPTOR |
1 |
|
|
|
|
? |
WB0581 |
FITTING, STRAIGHT ADAPTOR |
1 |
|
|
|
|
? |
WB0584 |
FITTING, STRAIGHT ADAPTOR |
9 |
|
|
|
|
? |
WB0574 |
FITTING, STRAIGHT ADAPTOR |
1 |
|
|
|
|
? |
C1601 |
CAPSCREW - 3/8" - 16NC X 3/4" |
4 |
|
|
|
|
? |
DF3042 |
FLAT WASHER - 3/8" |
4 |
|
|
|
|
? |
PB6785 |
SWITCH, PRESSURE - STOP LIGHT |
1 |
|
|
|
|
? |
TY7550 |
BLOCK, JUNCTION |
1 |
|
|
|
|
? |
VM0314 |
PLUG, O-RING |
2 |
|
|
|
|
? |
PB6992 |
SWITCH, PRESSURE - BRAKE LOCK LOW PRESSURE |
1 |
|
|
|
|
? |
PB1006 |
LATCH/KEEPER SET |
4 |
|
|
|
|
? |
MM0019 |
CAPSCREW - M6 X 1.00 X 16 |
24 |
|
|
|
|
? |
MM0702 |
FLAT WASHER - M6 |
24 |
|
|
|
|
? |
SM2784 |
PLATE, CONNECTOR MOUNTING |
1 |
|
|
|
|
? |
MM0581 |
CAPSCREW - M6 X 1.00 X 16 |
4 |
|
|
|
|
? |
MM0469 |
LOCKWASHER - M6 |
4 |
|
|
|
|
? |
|
NOTE: THIS BRAKE CABINET IS NOT SOLD AS AN ASSEMBLY. |
|
|
|
|
|
? |
|
ORDER INDIVIDUAL COMPONENT PARTS. |
|
|
|
|
