Номер на схеме |
Каталожный номер |
Название |
Количество |
Детали |
|
|
|
? |
EG3934 |

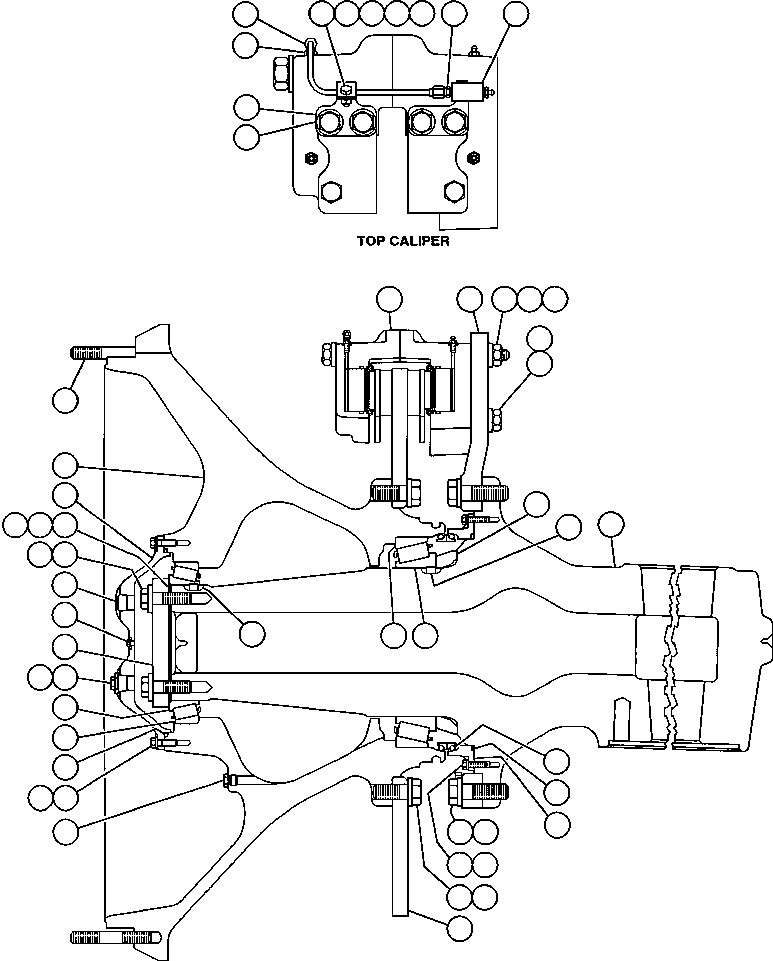

SPINDLE HUB & BRAKE ASSEMBLY |
1 |
|
|
|
|
? |
VM0315 |
• PLUG, O-RING |
1 |
|
|
|
|
? |
C1540 |
• LOCKWASHER - 1/2" |
16 |
|
|
|
|
? |
C1614 |
• CAPSCREW - 1/2" - 13NC X 1 1/2" |
16 |
|
|
|
|
? |
WA4795 |
• SEAL, O-RING (1) |
1 |
|
|
|
|
? |
PC0005 |
• BEARING CUP, SINGLE TAPERED ROLLER (1) |
1 |
|
|
|
|
? |
PB9999 |
• BEARING CONE, SINGLE TAPERED ROLLER (1) |
1 |
|
|
|
|
? |
PB7454 |
• GAUGE, SIGHT |
1 |
|
|
|
|
? |
SD5211 |
• BUSHING |
1 |
|
|
|
|
? |
TY2134 |
• RETAINER, BEARING |
1 |
|
|
|
|
? |
TH6916 |
• VALVE, CHECK |
1 |
|
|
|
|
? |
H6881 |
• PLUG, PIPE |
1 |
|
|
|
|
? |
TY2148 |
• FLAT WASHER (HARDENED) - 1" |
6 |
|
|
|
|
? |
VM8258 |
• CAPSCREW - 1" - 8NC X 3 3/4" |
18 |
|
|
|
|
? |
TY2136 |
• SHIM - .014 (1) |
2 |
|
|
|
|
? |
TY2137 |
• SHIM - .031 (1) |
3 |
|
|
|
|
? |
TY2135 |
• SHIM - .002 (1) |
5 |
|
|
|
|
? |
EC3702 |
• COVER |
1 |
|
|
|
|
? |
EB8390 |
• HUB, FRONT WHEEL |
1 |
|
|
|
|
? |
TY1633 |
• STUD - 1" - 14UNS X 7 1/4" |
35 |
|
|
|
|
? |
PB7362 |
• DISC BRAKE ASSEMBLY (SEE INDEX) |
3 |
|
11765 |
|
|
? |
EC3706 |
• ADAPTOR, BRAKE |
1 |
|
|
|
|
? |
WA4682 |
• CAPSCREW - 1" - 14NF X 14 1/2" |
18 |
|
|
|
|
? |
VN7703 |
• NUT - 1" - 14NF |
18 |
|
|
|
|
? |
WA0364 |
• FLAT WASHER - 1" |
30 |
|
|
|
|
? |
TX0808 |
• BLEEDER, REMOTE |
1 |
|
|
|
|
? |
562-22-32290 |
• PIN (1) |
2 |
|
|
|
|
? |
TF5190 |
• FITTING, TUBE |
1 |
|
|
|
|
? |
WA0362 |
• FLAT WASHER - 3/4" (HARDENED) |
4 |
|
|
|
|
? |
PC0003 |
• BEARING CUP, SINGLE TAPERED ROLLER (1) |
1 |
|
|
|
|
? |
PB9997 |
• BEARING CONE, SINGLE TAPERED ROLLER (1) |
1 |
|
|
|
|
? |
EC2056 |
• SPACER, BEARING |
1 |
|
|
|
|
? |
EF9319 |
• SPINDLE |
1 |
|
|
|
|
? |
WA5466 |
• SEAL, O-RING (1) |
1 |
|
|
|
|
? |
PB5756 |
• SEAL ASSEMBLY (1) |
1 |
|
|
|
|
? |
EC2057 |
• CARRIER, SEAL |
1 |
|
|
|
|
? |
WA4818 |
• CAPSCREW - 1 1/4" - 12NF X 4" |
30 |
|
|
|
|
? |
TY2149 |
• FLAT WASHER, HARDENED - 1 1/4" |
60 |
|
|
|
|
? |
WA4510 |
• CAPSCREW - 1 1/4" - 12NF X 3 1/4" |
30 |
|
|
|
|
? |
TY6050 |
• DISC, BRAKE |
1 |
|
|
|
|
? |
TX0807 |
• ANGLE |
1 |
|
|
|
|
? |
TH7593 |
• FITTING, ELBOW |
1 |
|
|
|
|
? |
TX0805 |
• TUBE, HYDRAULIC |
1 |
|
|
|
|
? |
VY8331 |
• CLAMP |
1 |
|
|
|
|
? |
DC7524 |
• CAPSCREW - 3/8" - 16NC X 7/8" |
1 |
|
|
|
|
? |
WA0720 |
• FLAT WASHER - 3/8" (HARDENED) |
1 |
|
|
|
|
? |
C0312 |
• LOCKWASHER - 3/8" |
1 |
|
|
|
|
? |
C1521 |
• NUT - 3/8" - 16NC |
1 |
|
|
|
|
? |
|
NOTE: NS = NOT SHOWN |
|
|
|
|
|
? |
PB6594 |
HUBODOMETER (2) |
1 |
|
|
|
|
? |
TX4849 |
PLATE, MOUNTING (2) |
1 |
|
|
|
|
? |
TC1234 |
CAPSCREW - 3/8" - 16NC X 3/4" (2) |
2 |
|
|
|
|
? |
TR4436 |
FLAT WASHER - 3/8" |
2 |
|
|
|
|
? |
AK4176 |
NOTE: (1) INCLUDED IN AK4176 SPINDLE MAINTENANCE KIT. |
|
|
|
|
|
? |
|
(2) OPTIONAL EQUIPMENT. |
|
|
|
|
|
? |
|
(QUANTITIES SHOWN ARE FOR ONE SIDE ONLY.) |
|
|
|
|
