Номер на схеме |
Каталожный номер |
Название |
Количество |
Детали |
|
|
|
? |

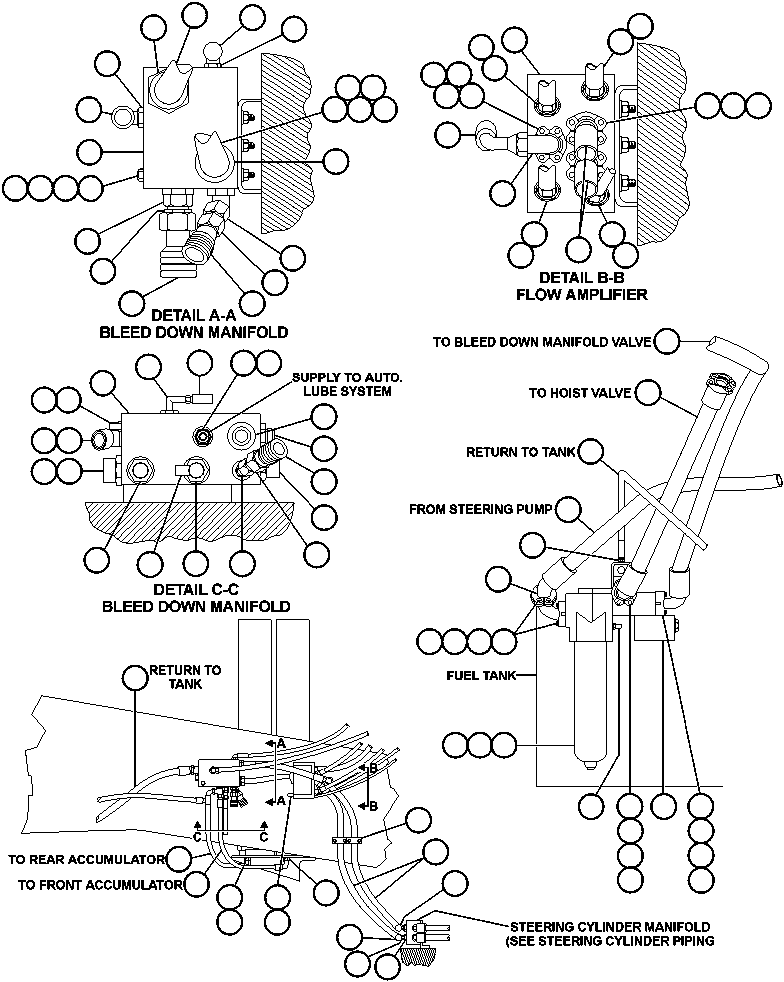

EH1235 |
• FILTER ASSEMBLY |
1 |
|
|
|
|
? |
PB9666 |
• • FILTER, HI-PRESSURE (SEE INDEX) |
1 |
|
|
|
|
? |
PB7034 |
• • SEAL, CABLE |
2 |
|
|
|
|
? |
PB7740 |
• • SLEEVE, TERMINAL |
2 |
|
|
|
|
? |
PB7743 |
• • CONNECTOR, FEMALE |
1 |
|
|
|
|
? |
C1603 |
• • CAPSCREW - 3/8" - 16NC X 1 1/4" |
15 |
|
|
|
|
? |
C0312 |
• • LOCKWASHER - 3/8" |
15 |
|
|
|
|
? |
TF8090 |
• • CLAMP, SPLIT |
8 |
|
|
|
|
? |
VG9095 |
• • O-RING |
4 |
|
|
|
|
? |
C1614 |
• • CAPSCREW - 1/2" - 13NC X 1 1/2" |
12 |
|
|
|
|
? |
C1540 |
• • LOCKWASHER - 1/2" |
14 |
|
|
|
|
? |
SR7215 |
• • CAPSCREW - 1/2" - 13 NC X 7 1/2" |
4 |
|
|
|
|
? |
PB6770 |
• • COUPLING, QUICK DISCONNECT - MALE |
1 |
|
|
|
|
? |
WB0993 |
• • SWIVEL, SPLIT |
1 |
|
|
|
|
? |
HA7608 |
• • HOSE |
1 |
|
|
|
|
? |
PB9977 |
• • VALVE, UNLOADER (SEE INDEX) |
1 |
|
|
|
|
? |
HA1124 |
• • HOSE |
1 |
|
|
|
|
? |
WB0581 |
• • FITTING, STRAIGHT |
1 |
|
|
|
|
? |
HA7576 |
• • HOSE |
1 |
|
|
|
|
? |
HA7603 |
• • HOSE |
1 |
|
|
|
|
? |
C1628 |
• • CAPSCREW - 1/2" - 13NC X 7" |
2 |
|
|
|
|
? |
WA0360 |
• • FLAT WASHER - 1/2" |
2 |
|
|
|
|
? |
C1523 |
• • NUT - 1/2" - 13NC |
2 |
|
|
|
|
? |
HA7333 |
• • HOSE |
1 |
|
|
|
|
? |
PB9774 |
• • VALVE, BLEEDDOWN MANIFOLD (SEE INDEX) |
1 |
|
|
|
|
? |
WB0510 |
• • FITTING, ELBOW - 90 DEG |
1 |
|
|
|
|
? |
HA6448 |
• • HOSE |
1 |
|
|
|
|
? |
WB0508 |
• • FITTING, ELBOW - 90 DEG |
1 |
|
|
|
|
? |
HA6319 |
• • HOSE |
5 |
|
|
|
|
? |
WB0600 |
• • FITTING, STRAIGHT |
1 |
|
|
|
|
? |
HA6226 |
• • HOSE |
1 |
|
|
|
|
? |
TZ5905 |
• • TUBE |
1 |
|
|
|
|
? |
TF3237 |
• • CLAMP, SPLIT |
2 |
|
|
|
|
? |
VG9096 |
• • O-RING |
1 |
|
|
|
|
? |
C1609 |
• • CAPSCREW - 7/16" - 14NC X 1 1/2" |
4 |
|
|
|
|
? |
C5775 |
• • LOCKWASHER - 7/16" |
7 |
|
|
|
|
? |
PB9932 |
• • VALVE, FLOW AMPLIFIER (SEE INDEX) |
1 |
|
|
|
|
? |
HA7334 |
• • HOSE |
1 |
|
|
|
|
? |
WB0574 |
• • ADAPTOR, STRAIGHT |
1 |
|
|
|
|
? |
HA2463 |
• • HOSE |
2 |
|
|
|
|
? |
WA4710 |
• • CLAMP - 1 1/2" |
2 |
|
|
|
|
? |
WB0522 |
• • FITTING, ELBOW - 90 DEG |
2 |
|
|
|
|
? |
WB0378 |
• • FITTING, ELBOW - 90 DEG |
1 |
|
|
|
|
? |
WB0599 |
• • FITTING, STRAIGHT |
2 |
|
|
|
|
? |
WA3568 |
• • FITTING, TUBE |
1 |
|
|
|
|
? |
VZ1061 |
• • ADAPTOR |
2 |
|
|
|
|
? |
WB0560 |
• • FITTING, TEE |
1 |
|
|
|
|
? |
HA2271 |
• • HOSE |
1 |
|
|
|
|
? |
HA1896 |
• • HOSE |
1 |
|
|
|
|
? |
WB0593 |
• • FITTING, STRAIGHT |
2 |
|
|
|
|
? |
WB0377 |
• • FITTING, ELBOW - 90 DEG |
1 |
|
|
|
|
? |
WB0602 |
• • FITTING, STRAIGHT |
1 |
|
|
|
|
? |
WB0542 |
• • FITTING, ELBOW - 45 DEG |
1 |
|
|
|
|
? |
VN3308 |
• • ADAPTOR, SWIVEL |
1 |
|
|
|
|
? |
PB4683 |
• • COUPLING, QUICK DISCONNECT |
1 |
|
|
|
|
? |
PB4685 |
• • COUPLING, HYDRAULIC |
1 |
|
|
|
|
? |
TF8077 |
• • CLAMP, SPLIT |
6 |
|
|
|
|
? |
VG9097 |
• • O-RING |
3 |
|
|
|
|
? |
WA4855 |
• • FITTING, ELBOW - 90 DEG |
1 |
|
|
|
|
? |
WB0537 |
• • FITTING, ELBOW - 45 DEG |
3 |
|
|
|
|
? |
C1608 |
• • CAPSCREW - 7/16" - 14NC X 1" |
3 |
|
|
|
|
? |
PB1255 |
• • FLAT WASHER - 7/16" |
3 |
|
|
|
|
? |
WB0584 |
• • FITTING, STRAIGHT |
1 |
|
|
|
|
? |
WB0603 |
• • FITTING, STRAIGHT |
1 |
|
|
|
|
? |
WB0549 |
• • FITTING, ELBOW - 45 DEG |
1 |
|
|
|
|
? |
PB6528 |
• • COUPLING, DIAGNOSTIC |
1 |
|
|
|
|
? |
PB6041 |
• • CAP, DUST |
1 |
|
|
|
|
? |
WB0589 |
• • FITTING, STRAIGHT |
1 |
|
|
|
|
? |
WB0645 |
• • FITTING, STRAIGHT |
1 |
|
|
|
