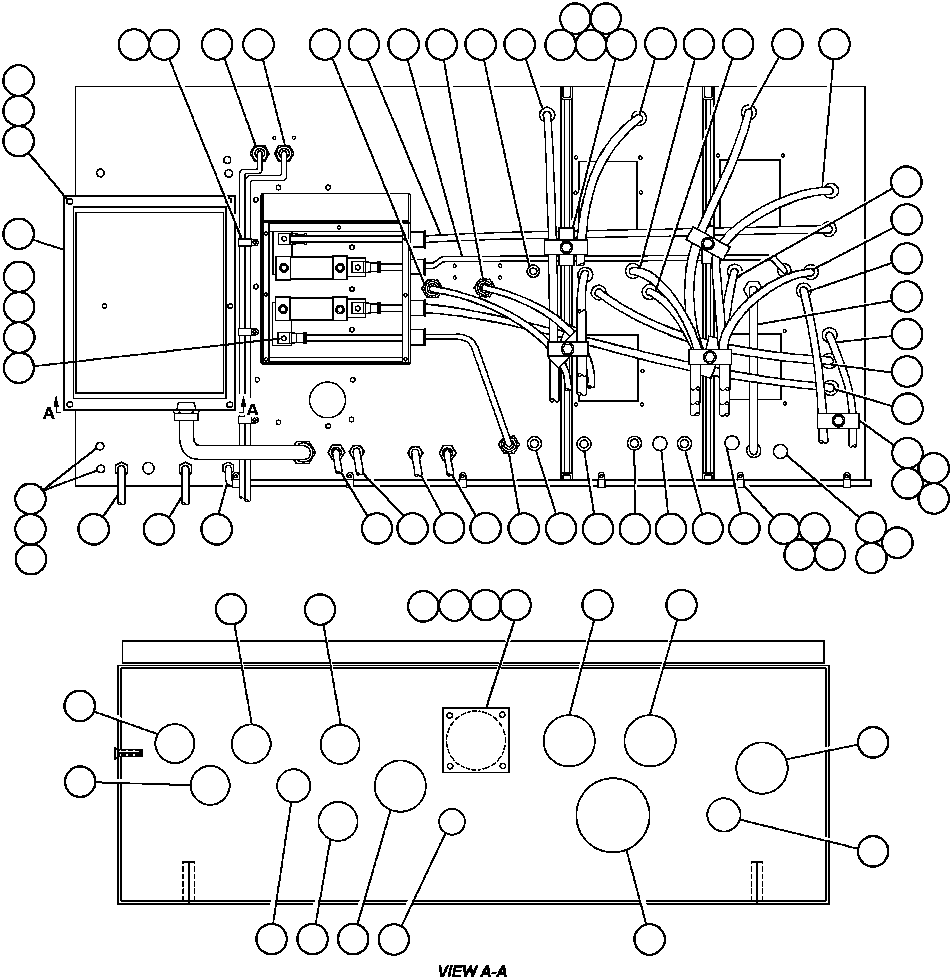

Номер на схеме |
Каталожный номер |
Название |
Количество |
Детали |
|
|
|
? |
EG4522 |
• JUNCTION BOX ASSEMBLY (SEE INDEX) |
1 |
|
|
|
|
? |
TD0791 |
• • CAPSCREW - 3/8" - 16NC X 1 1/4" |
4 |
|
|
|
|
? |
TC1231 |
• • LOCKWASHER - 3/8" |
4 |
|
|
|
|
? |
TC1233 |
• • NUT - 3/8" - 16NC |
4 |
|
|
|
|
? |
VN8565 |
• • CLAMP |
3 |
|
|
|
|
? |
TR4436 |
• • FLAT WASHER - 3/8" |
6 |
|
|
|
|
? |
CH2550 |
• • CABLE - 74AA |
1 |
|
|
|
|
? |
CH2562 |
• • CABLE - 71J |
1 |
|
|
|
|
? |
CH2572 |
• • CABLE - 7J4 |
1 |
|
|
|
|
? |
CH3150 |
• • CABLE - 7J1RS |
1 |
|
|
|
|
? |
CH3185 |
• • CABLE - 7TR10 |
1 |
|
|
|
|
? |
CH2564 |
• • CABLE - 74 |
1 |
|
|
|
|
? |
CH3167 |
• • CABLE - 7RC5 |
1 |
|
|
|
|
? |
ED8937 |
• • CLEAT, CABLE |
8 |
|
|
|
|
? |
EB9886 |
• • STUD, THREADED |
4 |
|
|
|
|
? |
MM0464 |
• • FLAT WASHER - M16 |
4 |
|
|
|
|
? |
MM0474 |
• • LOCKWASHER - M16 |
5 |
|
|
|
|
? |
MM0181 |
• • NUT - M16 X 2.00 |
5 |
|
|
|
|
? |
CH3177 |
• • CABLE - 7GA2 |
1 |
|
|
|
|
? |
CH3171 |
• • CABLE - 7J2 |
1 |
|
|
|
|
? |
CH3162 |
• • CABLE - 7J8 |
1 |
|
|
|
|
? |
CH3163 |
• • CABLE - 7J7 |
1 |
|
|
|
|
? |
CH3170 |
• • CABLE - 7J1R |
1 |
|
|
|
|
? |
CH3166 |
• • CABLE - 7J18 |
1 |
|
|
|
|
? |
CH3169 |
• • CABLE - 7TR10 |
1 |
|
|
|
|
? |
CH2698 |
• • CABLE - 7TR2 - PANTOGRAPH |
1 |
|
|
|
|
? |
CH3155 |
• • CABLE - 7J30 |
1 |
|
|
|
|
? |
CH3174 |
• • CABLE - 7J1L |
1 |
|
|
|
|
? |
CH3172 |
• • CABLE - 7J8 |
1 |
|
|
|
|
? |
CH3152 |
• • CABLE - 7J1LS |
1 |
|
|
|
|
? |
EB9885 |
• • STUD, THREADED |
1 |
|
|
|
|
? |
MM0706 |
• • FLAT WASHER (HARDENED) - M16 |
1 |
|
|
|
|
? |
CH3157 |
• • CABLE - 7J30 |
1 |
|
|
|
|
? |
TG2562 |
• • CLAMP |
6 |
|
|
|
|
? |
MM0460 |
• • FLAT WASHER - M8 |
6 |
|
|
|
|
? |
MM0470 |
• • LOCKWASHER - M8 |
6 |
|
|
|
|
? |
MM0177 |
• • NUT - M8 X 1.25 |
6 |
|
|
|
|
? |
CH3156 |
• • CABLE - 7GA1 - TO BLOWN GRID |
1 |
|
|
|
|
? |
CH3173 |
• • CABLE - 7GA1 - TO LH WHEEL MOTOR |
1 |
|
|
|
|
? |
CH3176 |
• • CABLE - 7GA1 - TO RECTIFIER |
1 |
|
|
|
|
? |
CH3159 |
• • CABLE - 7RC4 |
1 |
|
|
|
|
? |
CH3158 |
• • CABLE - 7RC6 |
1 |
|
|
|
|
? |
CH3175 |
• • CABLE - 7TR9 |
1 |
|
|
|
|
? |
CH3129 |
• • CABLE - 7TR2 - PANTOGRAPH |
1 |
|
|
|
|
? |
CH3184 |
• • CABLE - 7TR9 |
1 |
|
|
|
|
? |
CH2560 |
• • CABLE - 7J9 |
1 |
|
|
|
|
? |
CH2541 |
• • CABLE - 71G |
1 |
|
|
|
|
? |
CH2563 |
• • CABLE - 74D |
1 |
|
|
|
|
? |
CH2561 |
• • CABLE - 75X |
1 |
|
|
|
|
? |
VC1387 |
• • CAPSCREW - 1/2" - 13NC X 1" |
4 |
|
|
|
|
? |
TR5445 |
• • LOCKWASHER - 1/2" |
4 |
|
|
|
|
? |
TR6008 |
• • FLAT WASHER - 1/2" |
4 |
|
|
|
|
? |
TR6643 |
• • NUT - 1/2" - 13NC |
4 |
|
|
|
|
? |
EG1412 |
• • HARNESS - ERR |
1 |
|
|
|
|
? |
ED3913 |
• • CABLE, CONDUIT (WHEEL SPEED & TEMP SENSOR WRG) |
1 |
|
|
|
|
? |
EG1411 |
• • CABLE - DTS |
1 |
|
|
|
|
? |
VG4399 |
• • BUSHING, CONDULET |
1 |
|
|
|
|
? |
VM5587 |
• • LOCKNUT, CONDULET - 1/2" |
1 |
|
|
|
|
? |
VM5736 |
• • GRIP, CORD |
1 |
|
|
|
|
? |
EG1418 |
• • HARNESS - LH DECK |
1 |
|
|
|
|
? |
EG1417 |
• • HARNESS - RH DECK |
1 |
|
|
|
|
? |
EG1414 |
• • HARNESS - LH FRAME RAIL |
1 |
|
|
|
|
? |
EG1421 |
• • HARNESS - RH FRAME RAIL |
1 |
|
|
|
|
? |
VW4875 |
• • BUTTON, PLUG |
1 |
|
|
|
|
? |
EF8495 |
• • HARNESS - P229 CAB POWER |
1 |
|
|
|
|
? |
EG1413 |
• • HARNESS - JUNCTION BOX INTERFACE |
1 |
|
|
|
|
? |
EG0008 |
• • HARNESS - ACCUMULATOR PRESSURE SWITCH |
1 |
|
|
|
|
? |
EF8497 |
• • HARNESS - P218 CAB INTERFACE |
1 |
|
|
|
|
? |
EG5415 |
• • HARNESS - CAB/SYSTEM DIAGNOSTIC |
1 |
|
|
|
|
? |
EF8498 |
• • HARNESS - P233 CAB INTERFACE |
1 |
|
|
|
|
? |
EG5410 |
• • HARNESS - INTERNAL DDEC INTERFACE |
1 |
|
|
|
|
? |
EF8492 |
• • HARNESS - BRAKE CABINET TO JUNCTION BOX |
1 |
|
|
|
|
? |
EG5414 |
• • HARNESS - ENGINE/CONTROL CABINET |
1 |
|
|
|
|
? |
EG5392 |
• • HARNESS - EXTERNAL DDEC INTERFACE |
1 |
|
|
|
|
? |
|
• • (J-BOX TO ENGINE ECM) |
65535 |
|
|
|
|
? |
WB0908 |
• • PLATE, CONNECTOR NUT |
1 |
|
|
|
|
? |
HD1538 |
• • MACHINE SCREW - #6 - 32NC |
4 |
|
|
|
