Содержание Dump Trucks Komatsu AFE47-AD 730E SISHEN (A30095 & A30098)(AFE47-AD)

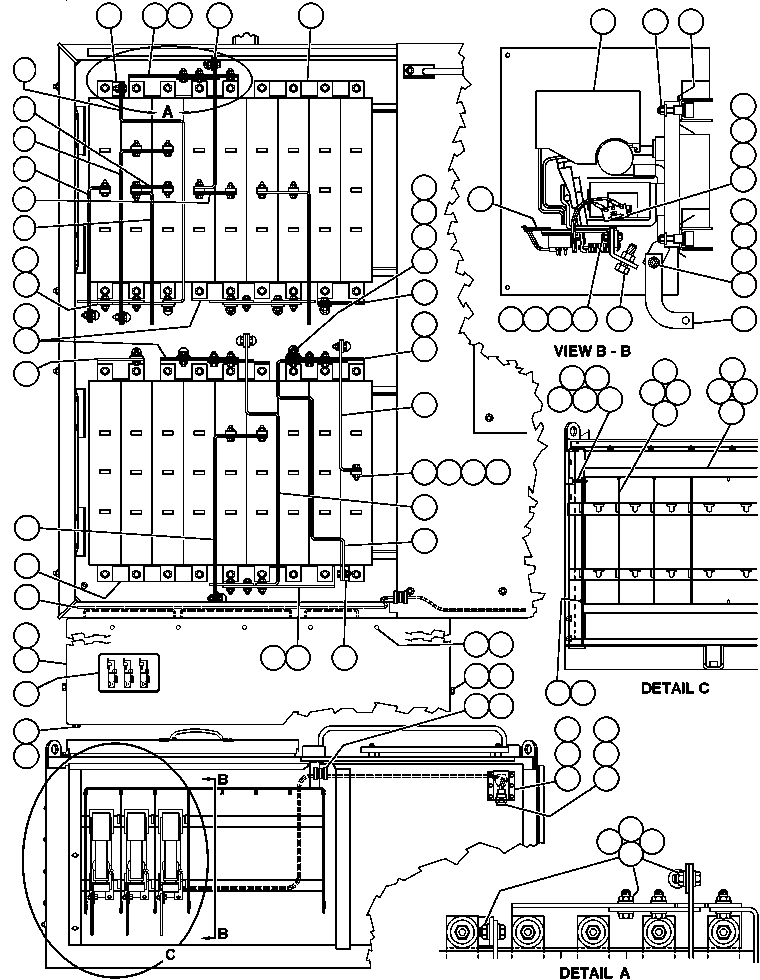

BLOWN GRID - 3 STEP, 18 ELEMENT - 3(510 : 55362)
Наименование Страница Код страницы
POSITION SENSOR (VE3530) 428 64035
CONTACTOR (VE1317) 530 64069

Номер на схеме Каталожный номер Название Количество Детали
? TY4273 • BAR, BUS 2
? EG0782 • • BAR, BUS 1
? TY4272 • • INSULATOR 6
? EB1299 • • BAR, BUS 4
? TN4945 • • BAR, BUS 2
? ED4518 • • BAR, BUS 1
? ED4521 • • BAR, BUS 2
? EB0747 • • BAR, BUS 2
? MM0621 • • CAPSCREW - M12 X 1.75 X 45 14
? MM0462 • • FLAT WASHER - M12 51
? MM0472 • • LOCKWASHER - M12 51
? MM0179 • • NUT - M12 X 1.75 51
? EG4277 • • BAR, BUS 2
? ED4517 • • BAR, BUS 1
? MM0022 • • CAPSCREW - M8 X 1.25 X 20 6
? MM0460 • • FLAT WASHER - M8 6
? MM0603 • • CAPSCREW - M10 X 1.50 X 16 4
? MM0461 • • FLAT WASHER - M10 4
? C1601 • • CAPSCREW - 3/8" - 16NC X 3/4" 8
? C1547 • • FLAT WASHER - 3/8" 8
? WB2085 • • DECAL, SCHEMATIC 1
? EF8699 • • ENCLOSURE, CONTACTOR 1
? EF8273 • • DOOR 1
? EG0025 • • HARNESS - 3 STEP 1
? ED8263 • • BAR, BUS 2
? EG0783 • • BAR, BUS 2
? TZ0891 • • BAR, BUS 1
? EC0191 • • CONDULET, BUSHING 2
? WA5483 • • BUSHING, SNAP 1
? EG1083 • • ENTRANCE 1
? MM0580 • • CAPSCREW - M6 X 1.00 X 14 10
? MM0469 • • LOCKWASHER - M6 10
? VH5017 • • STRAP, TIE 20
? MM0326 • • MACHINE SCREW - M3 X .5 X 6 4
? MM0176 • • NUT - M6 X 1.00 8
? EB9882 • • ARC BARRIER ASSEMBLY 5
? EB9878 • • BRACKET 10
? EB9880 • • SHEET 5
? VC5344 • • FLATWASHER - #10 20
? MM0373 • • NUT - M5 20
? EC1120 • • BRACKET 4
? VW6069 • • CAPSCREW, INSULATED 6
? VW6070 • • SHIELD 12
? PB6200 • • ADAPTOR 3
? PB4255 • • MODULE, SUPPRESSION 3
? PB4265 • • ADAPTOR 3
? WA3367 • • NUT ASSEMBLY 3
? MM0619 • • CAPSCREW - M12 X 1.75 X 35 37
? VJ9357 • • BAR, BUS 3
? TY5603 • • BAR, BUS 3
? PB5754 • • SPACER 3
? PB6137 • • CONTACTOR ASSEMBLY 3
? VE1317 • • CONTACTOR (SEE INDEX) (1)/(2) 3
? VE3530 • • SENSOR, POSITION (SEE INDEX) 3
? EG4276 • • SPACER, INSULATOR 1
? EF3092 • • INSULATOR 1
? EG9964 • • BRACKET 2
? MM0459 • • FLAT WASHER - M6 4
? PC0326 • • MOUNT, SANDWICH 2
? EG9966 • • ROD, THREADED 2
? TD1549 • • NUT - 1/4" - 20NC 4
? SP8417 • • FLAT WASHER - 1/4" 4
? VN2882 • • JAM NUT - 1/4" - 20NC 2
? AK0938 • • NOTE: (1) CONTACTOR TIP KIT (STANDARD). 65535
? AK0939 • • (2) CONTACTOR TIP KIT (SILVER-TIP). 65535

Dump Trucks Komatsu / AFE47-AD 730E SISHEN (A30095 & A30098)(AFE47-AD) / BLOWN GRID - 3 STEP, 18 ELEMENT - 3(510 : 55362)
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
