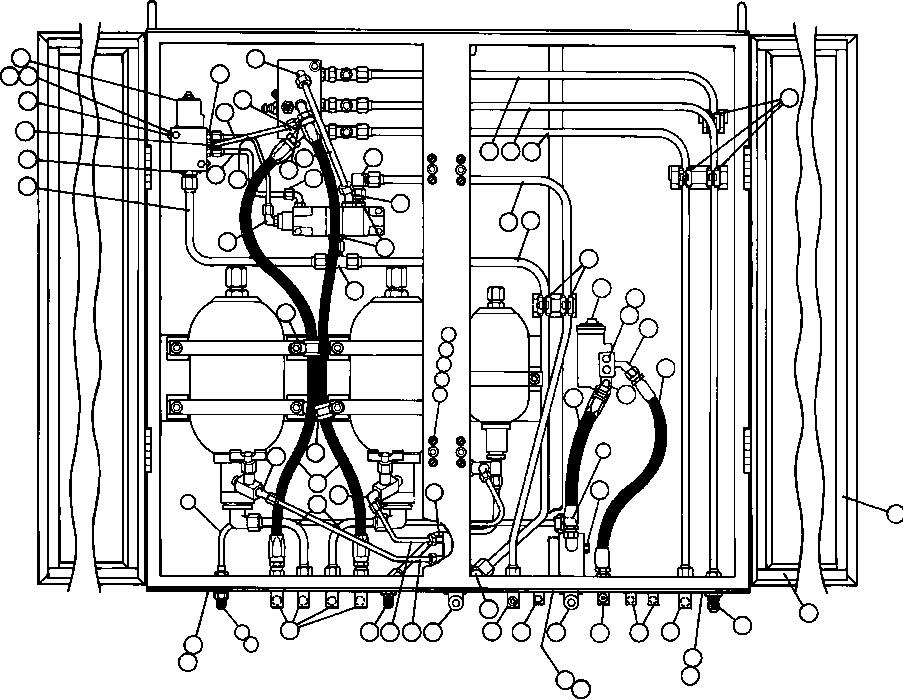

Номер на схеме |
Каталожный номер |
Название |
Количество |
Детали |
|
|
|
? |
TX2783 |
TUBE |
1 |
|
|
|
|
? |
WA2549 |
ADAPTOR |
3 |
|
|
|
|
? |
TX2786 |
SPACER |
1 |
|
|
|
|
? |
C5774 |
LOCKWASHER - 1/4" |
4 |
|
|
|
|
? |
SR6303 |
CAPSCREW - 1/4" - 20NC X 4" |
2 |
|
|
|
|
? |
TK6933 |
SOLENOID VALVE ASSEMBLY |
1 |
|
|
|
|
? |
PB5566 |
• VALVE, SOLENOID (SEE INDEX) |
1 |
|
13299 |
|
|
? |
TK0253 |
• VARISTOR |
1 |
|
|
|
|
? |
TK6932 |
• HOUSING, VARISTOR |
1 |
|
|
|
|
? |
VH5020 |
• CONNECTOR |
1 |
|
|
|
|
? |
TF5190 |
ADAPTOR, STRAIGHT |
2 |
|
|
|
|
? |
TH7593 |
ADAPTOR, 90 DEG |
1 |
|
|
|
|
? |
VM3976 |
ADAPTOR |
2 |
|
|
|
|
? |
VM3994 |
ADAPTOR |
2 |
|
|
|
|
? |
TX2781 |
TUBE |
1 |
|
|
|
|
? |
TX6247 |
TUBE |
1 |
|
|
|
|
? |
TX6248 |
TUBE |
1 |
|
|
|
|
? |
TH7593 |
ADAPTOR - 90 DEG |
3 |
|
|
|
|
? |
TX2779 |
TUBE |
1 |
|
|
|
|
? |
VN1705 |
TEE, TUBE |
1 |
|
|
|
|
? |
VN0393 |
ELBOW - 90 DEG |
1 |
|
|
|
|
? |
TX3505 |
TUBE |
1 |
|
|
|
|
? |
TX3506 |
TUBE |
1 |
|
|
|
|
? |
TX3507 |
TUBE |
1 |
|
|
|
|
? |
TX3520 |
TUBE |
1 |
|
|
|
|
? |
TX3162 |
TUBE |
1 |
|
|
|
|
? |
SD2969 |
PLUG, PIPE |
1 |
|
|
|
|
? |
DL2660 |
ELBOW - 45 DEG |
1 |
|
|
|
|
? |
TF6925 |
CLAMP, VINYL |
2 |
|
|
|
|
? |
WA4596 |
PLATE, IDENTIFICATION |
1 |
|
|
|
|
? |
WA2753 |
CLAMP |
5 |
|
|
|
|
? |
HA5739 |
HOSE |
2 |
|
|
|
|
? |
VW5504 |
VALVE, GOVERNOR (SEE INDEX) |
1 |
|
40039 |
|
|
? |
SR6301 |
CAPSCREW - 1/4" - 20NC X 2 3/4" |
2 |
|
|
|
|
? |
TH7863 |
ELBOW - 45 DEG |
1 |
|
|
|
|
? |
VD9705 |
ELBOW - 45 DEG |
1 |
|
|
|
|
? |
VM4123 |
HOSE |
1 |
|
|
|
|
? |
VN4215 |
HOSE |
4 |
|
|
|
|
? |
TX3157 |
STRIP, SEAL |
4 |
|
|
|
|
? |
TX3156 |
STRIP, SEAL |
4 |
|
|
|
|
? |
TX2792 |
TUBE |
2 |
|
|
|
|
? |
WA4924 |
PLATE, IDENTIFICATION |
1 |
|
|
|
|
? |
R1073 |
DRIVE SCREW - #6 |
8 |
|
|
|
|
? |
VY0936 |
FITTING, BULKHEAD - 90 DEG |
5 |
|
|
|
|
? |
121077 |
PLUG |
3 |
|
|
|
|
? |
DA3620 |
FITTING, BULKHEAD - 90 DEG |
1 |
|
|
|
|
? |
VD4675 |
TEE |
2 |
|
|
|
|
? |
WA4598 |
PLATE, IDENTIFICATION |
1 |
|
|
|
|
? |
VY3709 |
FITTING, BULKHEAD |
2 |
|
|
|
|
? |
DL2676 |
TUBE |
1 |
|
|
|
|
? |
TF3035 |
ELBOW - 45 DEG |
1 |
|
|
|
|
? |
VH4145 |
ELBOW - 45 DEG |
2 |
|
|
|
|
? |
TX3171 |
TUBE |
1 |
|
|
|
|
? |
TX3515 |
TUBE |
1 |
|
|
|
|
? |
WA2563 |
FITTING, BULKHEAD - 45 DEG |
1 |
|
|
|
|
? |
VY4490 |
FITTING, BULKHEAD |
1 |
|
|
|
|
? |
VN9780 |
FLAT WASHER - 9/16" |
2 |
|
|
|
|
? |
TD5556 |
FITTING, TUBE |
1 |
|
|
|
|
? |
TX3513 |
TUBE |
1 |
|
|
|
|
? |
HD8578 |
FLAT WASHER - #8 |
8 |
|
|
|
|
? |
H5466 |
MACHINE SCREW - #8 - 32NC |
8 |
|
|
|
|
? |
R4948 |
NUT - #8 - 32NC |
8 |
|
|
|
|
? |
SD2599 |
LOCKWASHER - #8 |
8 |
|
|
|
|
? |
PB6050 |
RECEPTACLE |
4 |
|
|
|
|
? |
WA4611 |
TEE, BULKHEAD |
1 |
|
|
|
