Содержание Dump Trucks Komatsu AFE43-AD 685E ARCH MINERAL(AFE43-AD)

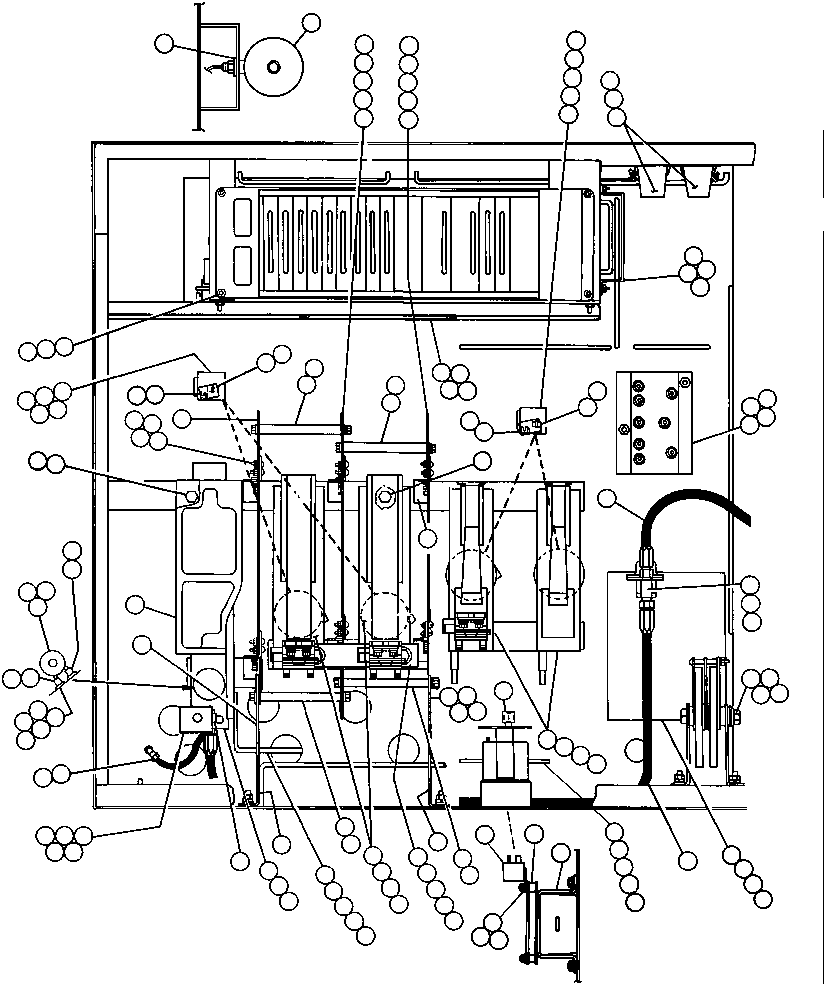

CONTROL CABINET ASSM(222 : 30481)
Наименование Страница Код страницы
PRESSURE REGULATOR (VY7272) 240 40115

Номер на схеме Каталожный номер Название Количество Детали
? TD1684 • NUT - 5/16" - 18NC 18
? SC4174 • • LOCKWASHER - 5/16" 18
? PB5504 • • PANEL 1
? PB4255 • • MODULE,SUPPRESSION 3
? TG1929 • • MACHINE SCREW - # -24NC 32
? VC5344 • • FLAT WASHER - #10 40
? SD4245 • • LOCKWASHER - #10(EXTERNAL TOOTH) 10
? DF0017 • • NUT - #10 _ 24NC 36
? PB6200 • • ADAPTOR 2
? WA3367 • • NUT ASSM 10
? PB4265 • • ADAPTOR 4
? EC3872 • • SHEET,INSULATION 1
? EC2038 • • SPACER 2
? TD0794 • • CAPSCREW - 5/16" - 18NC X 3/4" 8
? TV0177 • • FLAT WASHER - 5/16" 10
? JG6469 • • SHEET,INSULATION 1
? EC2037 • • SPACER 2
? EC4859 • • ARC BARRIER ASSM 1
? PB6117 • • PANEL,FAULT DETECTION 1
? DC3584 • • LOCKWASHWER - 1/4" 10
? SP8417 • • FLAT WASHER 10
? TD1549 • • NUT - 1/4" - 20NC 10
? PB3506 • • ADAPTOR 2
? VM4229 • • HOSE 1
? PB5907 • • PANEL,TERTIARY PROTECTION 1
? PB5509 • • PANEL 1
? PB5887 • • PANEL,RESISTOR 1
? WA0284 • • FITTING,TEE 1
? VY7326 • • CONNECTOR,PIPE 1
? VY7272 • • VALVE,PRESSURE REGULATOR (SEE INDEX) 1
? PB5593 • • CONTACTOR 2
? PB5590 • • SENSOR,POSITION 2
? TR4436 • • FLAT WASHER - 3/8" 14
? TC1231 • • LOCKWASHER - 3/8" 10
? TC1233 • • NUT - 3/8" - 16NC 10
? TA0603 • • FITTING,NYLON 1
? DC3101 • • LOCKWASHER - #10 26
? PB4767 • • RELAY 1
? VM4249 • • HOSE 1
? PB5230 • • RESISTOR 1
? VW6070 • • SHIELD,INSULATED 18
? PB5754 • • SPACER 4
? VW6069 • • BOLT,INSULATED 11
? EC3854 • • BRACKET 2
? PB5594 • • CONTACTOR 2
? PB5590 • • SENSOR,POSITION 2
? VC6500 • • CAPSCREW - 1/2" - 13NC X 2" 2
? VC7836 • • FLAT WASHER -1/2" 6
? TR5445 • • LOCKWASHER - 1/2" 3
? TR6643 • • NUT - 1/2" - 13NC 3
? EB3459 • • BAR,BUS 1
? JG9364 • • BAR,BUS 1
? VC8762 • • CAPSCREW - 3/8" - 16NC X 1 1/2" 2
? PB2052 • • INSULATION 2
? TH6086 • • CONNECTOR 1
? TN9637 • • BAR,BUS 1
? VC6561 • • CAPSCREW - 1/2" - 13NC X 1 1/2" 1
? TA0602 • • FITTING 1
? TK1977 • • GASKET 1
? EC3858 • • BAR,FLAT 1
? TM4559 • • TUBE 1
? TD1684 • • NUT -5/16" -18NC 2
? PB4263 • • ADAPTOR 1
? PB4264 • • BRACKET 1
? PB5592 • • CONTACTOR 1
? PB5506 • • SENSOR,POSITION 1
? VS8479 • • BOARD,TERMINAL 1
? PB3167 • • TRANSFORMER,RIPPLE 1
? PB3606 • • SPACER 2
? PB3605 • • CLAMP 1
? SF2755 • • NUT 2
? EC2043 • • STUD 2
? EC2044 • • STUD 2
? EC3871 • • SHEET,INSULATION 1
? EC4858 • • SPACER 2
? EC3870 • • BRACKET 6
? PB8371 • • LIGHT,DOUBLE FACED 1

Dump Trucks Komatsu / AFE43-AD 685E ARCH MINERAL(AFE43-AD) / CONTROL CABINET ASSM(222 : 30481)
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
