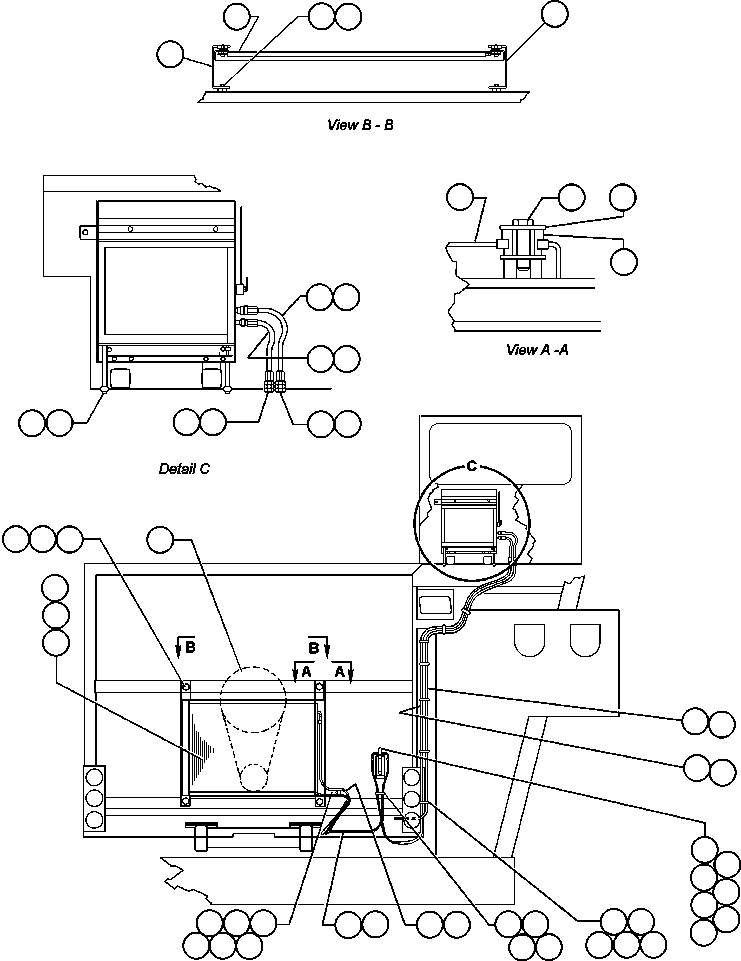

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | EF3540 | MOUNT, CONDENSER | 1 | ||||
| ? | PB9510 | CONDENSER | 1 | ||||
| ? | TG5720 | CAPSCREW - 3/8" - 16NC X 1" | 6 | ||||
| ? | TC1232 | FLATWASHER - 3/8" | 14 | ||||
| ? | (NOT USED THIS APPLICATION) | ||||||
| ? | VY9850 | MOUNT, RUBBER | 4 | ||||
| ? | DA0557 | FLATWASHER | 8 | ||||
| ? | C1615 | CAPSCREW - 1/2" - 13NC X 1 3/4" | 4 | ||||
| ? | HA7216 | HOSE - DISCHARGE | 1 | ||||
| ? | WA1732 | O-RING | 2 | ||||
| ? | HA7166 | HOSE | 1 | ||||
| ? | WA1731 | O-RING | 4 | ||||
| ? | HA7167 | HOSE | 1 | ||||
| ? | WA1733 | O-RING | 4 | ||||
| ? | PB9352 | ADAPTOR | 1 | ||||
| ? | PB9354 | NUT, JAM | 1 | ||||
| ? | PB9351 | ADAPTOR | 1 | ||||
| ? | PB9353 | NUT, JAM | 1 | ||||
| ? | TN9748 | HOSE, DRAIN | 2 | ||||
| ? | VP4693 | GROMMET | 2 | ||||
| ? | HA7175 | HOSE | 1 | ||||
| ? | HA7174 | HOSE | 1 | ||||
| ? | WA0720 | FLATWASHER - 3/8" (HARDENED) | 17 | ||||
| ? | VN2997 | WELD STUD - 3/8" - 16NC X 1 1/4" | 6 | ||||
| ? | TF6925 | CLAMP | 16 | ||||
| ? | C1521 | NUT - 3/8" | 16 | ||||
| ? | VN9913 | CLAMP | 6 | ||||
| ? | HA7169 | HOSE | 1 | ||||
| ? | TG2568 | CLAMP | 1 | ||||
| ? | 892124C1 | SPACER | 1 | ||||
| ? | C1602 | CAPSCREW - 3/8" - 16NC X 1" | 3 | ||||
| ? | C1604 | CAPSCREW - 3/8" - 16NC X 1 1/2" | 1 | ||||
| ? | PB8689 | RECEIVER, DRIER | 1 | ||||
| ? | PB2216 | BRACKET, DRIER | 1 | ||||
| ? | PB7620 | SWITCH, PRESSURE | 1 | ||||
| ? | PB7619 | ADPATOR | 1 | ||||
| ? | WA0192 | WELD STUD - 1/4" - 20NC X 3/4" | 2 | ||||
| ? | C5774 | LOCKWASHER - 1/4" | 2 | ||||
| ? | C5780 | NUT - 1/4" | 2 | ||||
| ? | EF5362 | CHANNEL, L.H. | 1 | ||||
| ? | EF5360 | CHANNEL, R.H. | 1 | ||||
| ? | VN9027 | CAPSCREW - 1/2" - 13NC X 7/8" | 4 | ||||
| ? | EF3874 | HARNESS - RECEIVER DRIER | 1 |
