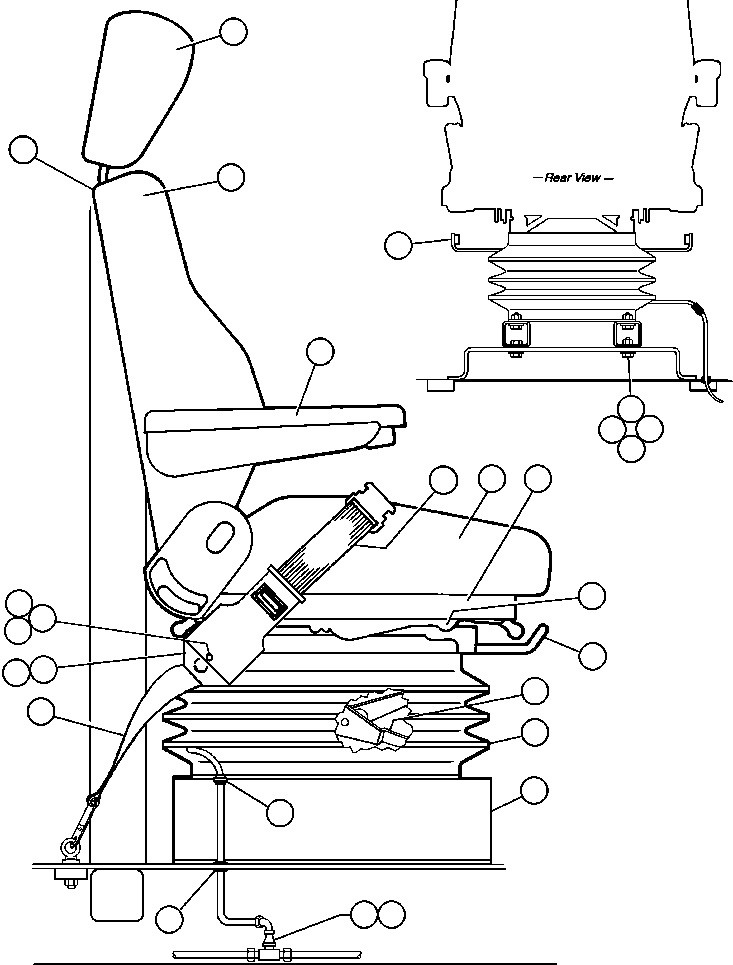

Номер на схеме |
Каталожный номер |
Название |
Количество |
Детали |
|
|
|
? |
PB8742 |
SEAT ASSEMBLY (SEE INDEX) |
1 |
|
35534 |
|
|
? |
SF4691 |
FITTING, PIPE |
1 |
|
|
|
|
? |
TA0602 |
FITTING, NYLON |
1 |
|
|
|
|
? |
TF6380 |
GROMMET, RUBBER |
1 |
|
|
|
|
? |
TD0794 |
CAPSCREW - 5/16" - 18NC X 3/4" |
4 |
|
|
|
|
? |
WA4725 |
FLATWASHER - 5/16" |
4 |
|
|
|
|
? |
SC4174 |
LOCKWASHER - 5/16" |
4 |
|
|
|
|
? |
TD1684 |
NUT - 5/16" - 18NC |
4 |
|
|
|
|
? |
PB7240 |
BELT, TETHER |
1 |
|
|
|
|
? |
WA3135 |
CAPSCREW - 7/16" - 14NC X 1" |
2 |
|
|
|
|
? |
WA4727 |
FLATWASHER - 7/16" |
2 |
|
|
|
|
? |
PB7239 |
BELT, SEAT |
1 |
|
|
|
|
? |
WA3135 |
CAPSCREW - 7/16" - 14NC X 1" |
2 |
|
|
|
|
? |
WA4727 |
FLATWASHER - 7/16" |
2 |
|
|
|
|
? |
TF8136 |
LOCKNUT - 7/16" - 14NC |
2 |
|
|
|
|
? |
WA4065 |
UNION, TUBE |
1 |
|
|
|
|
? |
EB2790 |
TUBE (SEAT SPACER) |
2 |
|
|
|
|
? |
VE2962 |
HEADREST (1) |
1 |
|
|
|
|
? |
VE4557 |
ARMREST SET (1) |
1 |
|
|
|
|
? |
VE8365 |
BACKREST ASSEMBLY (1) |
1 |
|
|
|
|
? |
VE8359 |
SEAT PAN ASSEMBLY (1) |
1 |
|
|
|
|
? |
VE8370 |
SEAT FRAME ASSEMBLY (1) |
1 |
|
|
|
|
? |
VE8361 |
SPACER, STATIC (1) |
1 |
|
|
|
|
? |
LA0319 |
KIT, SLIDE (1) |
1 |
|
|
|
|
? |
VE8362 |
KIT, SUSPENSION (1) |
1 |
|
|
|
|
? |
VE4564 |
BAR, ICP (1) |
1 |
|
|
|
|
? |
VE4565 |
BOOT (1) |
1 |
|
|
|
|
? |
|
NOTE: (1) INCLUDED IN PB8742 SEAT ASSEMBLY. |
|
|
|
|
|
? |
|
SEE FOLLOWING PAGES. |
|
|
|
|
