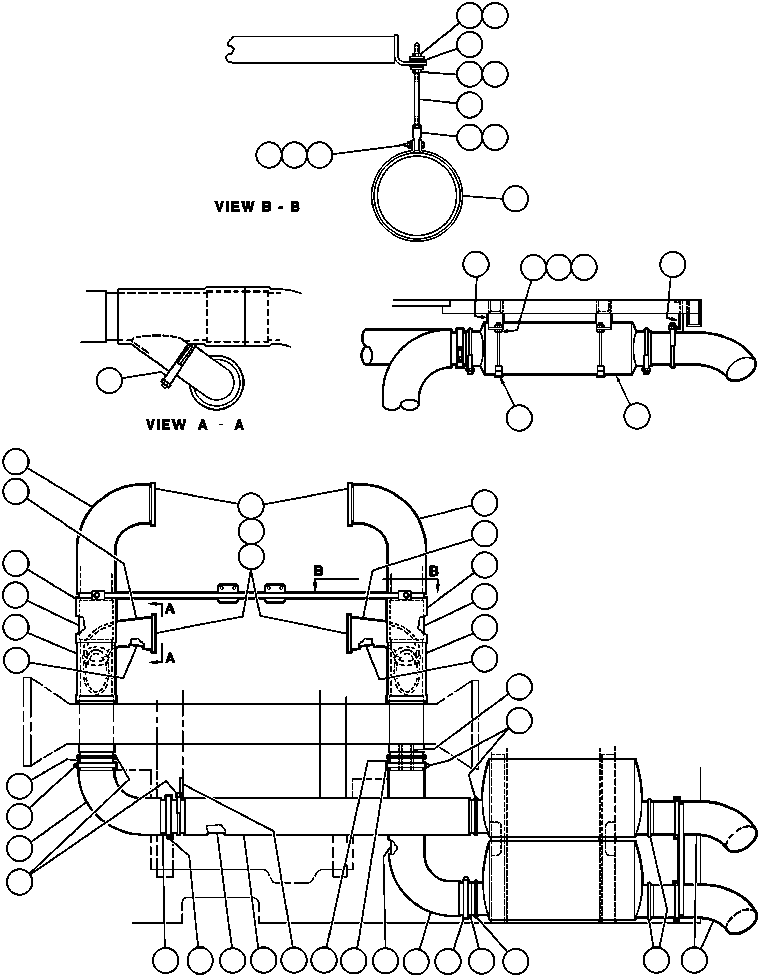

EXHAUST PIPING(050 : 40801)
Номер на схеме Каталожный номер Название Количество Детали
? C1617 • CAPSCREW - 1/2" - 13NC X 2 1/4" 32
? C1540 • • LOCKWASHER - 1/2" 34
? C1523 • • NUT - 1/2" - 13NC 34
? PB8746 • • BLANKET, EXHAUST - R.H. 1
? PB8153 • • BLANKET, EXHAUST 1
? PB8152 • • BLANKET, EXHAUST 2
? EB6370 • • TUBE, SMALL - R.H. 1
? EB6368 • • TUBE, LARGE - R.H. 1
? PB8148 • • BLANKET, EXHAUST 1
? JG8908 • • CHANNEL, FORMED 2
? TA6490 • • CLAMP ASSM 9
? C0312 • • LOCKWASHER - 3/8" 18
? C1521 • • NUT - 3/8" - 16NC 18
? TA6483 • • CLAMP 9
? TA6491 • • U - BOLT 9
? EB4759 • • TUBE, EXHAUST 2
? PB7997 • • CLAMP, V-BAND 4
? EB4764 • • TUBE, EXHAUST 2
? EB4755 • • TUBE, EXHAUST 1
? EB4772 • • BLANKET, EXHAUST 1
? EB4757 • • TUBE, EXHAUST 1
? PB7803 • • BLANKET, EXHAUST 1
? EB4761 • • TUBE, EXHAUST 1
? EB4763 • • TUBE, EXHAUST 1
? EB4773 • • BLANKET, EXHAUST 1
? EB4765 • • HANGER, EXHAUST 1
? EB6372 • • TUBE, SMALL - L.H. 1
? PB8154 • • BLANKET, EXHAUST 1
? PB8149 • • BLANKET, EXHAUST 1
? EB6369 • • TUBE, LARGE - L.H. 1
? PB8747 • • BLANKET, EXHAUST - L.H. 1
? EB5861 • • CLAMP ASSM 2
? C0312 • • LOCKWASHER - 3/8" 4
? C1521 • • NUT - 3/8" - 16NC 4
? EB5315 • • CLAMP, SMALL - R.H. 2
? EB5316 • • U - BOLT 2
? TY4017 • • CLAMP 2
? TY4023 • • BOLT, TEE 8
? SD4572 • • JAM NUT - 3/8" - 16NC 8
? C1521 • • NUT - 3/8" - 16NC 8
? TZ5938 • • CHANNEL 1
? PB8431 • • MUFFLER, EXHAUST 2
? TY4020 • • CLAMP 4
? H0749 • • JAM NUT - 1/2" - 20NF 2
? ED1172 • • CLAMP 2
? C1615 • • CAPSCREW - 1/2" - 13NC X 1 3/4" 2
? TG7496 • • LOCKNUT - 1/2" - 20NF 4
? DA0557 • • WASHER 4
? VY9850 • • MOUNT, RUBBER 2
? ED3881 • • ROD, THREADED 2
? WA1604 • • ROD END 2
