Содержание Dump Trucks Komatsu AFE32-DW 830E COLLAHUASI(AFE32-DW)

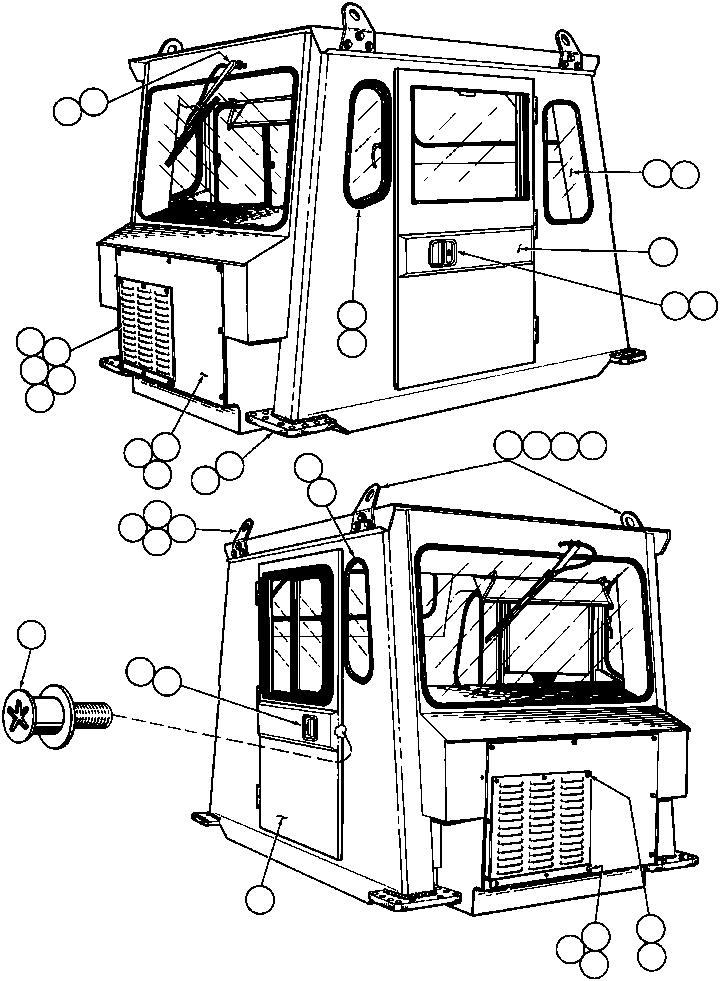

CAB ASSM - 1 (EF7079)(144 : 40266)
Наименование Страница Код страницы
DOOR ASSM - L.H. (BF2300) 150 41129
DOOR ASSM - R.H. (VE6684) 152 40245
WINDSHIELD WIPER INSTL 190 40063
WINDSHIELD WIPER INSTL 190 40063

Номер на схеме Каталожный номер Название Количество Детали
? TZ0655 • EYE, LIFTING 4
? C1616 • • CAPSCREW - 1/2" - 13NC X 2" 12
? DD5640 • • FLAT WASHER - 1/2" 12
? TR5445 • • LOCKWASHER - #6 16
? PB7524 • • ARM, WIPER (SEE FIG 40063) 1
? PB7523 • • BLADE, WIPER (SEE FIG 40063) 1
? VE6686 • • GLASS, REAR SIDE 1
? VE6687 • • CHANNEL, RUBBER 1
? VE6684 • • DOOR ASSM - R.H. (SEE INDEX) 1
? BF2300 • • DOOR ASSM - L.H. (SEE INDEX) 1
? VS6018 • • HANDLE, OUTSIDE DOOR - R.H. 1
? VS6010 • • HANDLE, OUTSIDE DOOR - L.H. 1
? VS6021 • • LOCK W/ 2 KEYS 2
? VS6259 • • KEY 2
? VE6689 • • GLASS, LEFT FRONT 1
? VE5812 • • HANDLE 1
? VM2203 • • CAPSCREW - 1" - 8NC X 3" 40
? TY2148 • • FLAT WASHER (HARDENED) 40
? VE6688 • • PANEL, ACCESS 1
? VE6695 • • KIT, SEAL 1
? TD0794 • • CAPSCREW - 5/16" - 18NC X 3/4" 10
? TV0177 • • FLAT WASHER - 5/16" 10
? VE6690 • • COVER, AIR FILTER 1
? VE6695 • • KIT, SEAL 1
? PB7001 • • FILTER, AIR 1
? VE6694 • • HINGE 1
? TD1809 • • CAPSCREW - 1/4" - 20NC X 3/4" 4
? SP8417 • • FLAT WASHER - 1/4" 4
? SH7597 • • CAPSCREW - 1/4" - 20NC X 1/2" 3
? SD4235 • • LOCKWASHER - 1/4" (EXTERNAL TOOTH) 3
? VE0453 • • NUT, ACORN - 1/4" - 20NC 3
? VE6691 • • GLASS, RIGHT FRONT (INSULATED) 1
? VE6692 • • CHANNEL, RUBBER 1
? VS6013 • • STRIKER, DOOR 2
? TZ0201 • • CAP (BRAKE CABINET MOUNTING HARDWARE) 2
? VC4898 • • CAPSCREW - 1/2" - 13NC X 2 1/2" 4
? TR5445 • • LOCKWASHER - #6 4
? PB2850 • • BRACKET (FIRE EXTINGUISHER) (OPTIONAL) 1
? PB2849 • • FIRE EXTINGUISHER (OPTIONAL) 1
? C0312 • • LOCKWASHER - 3/8" 3
? H8524 • • CAPSCREW - 3/8" - 16NC X 5/8" 3
