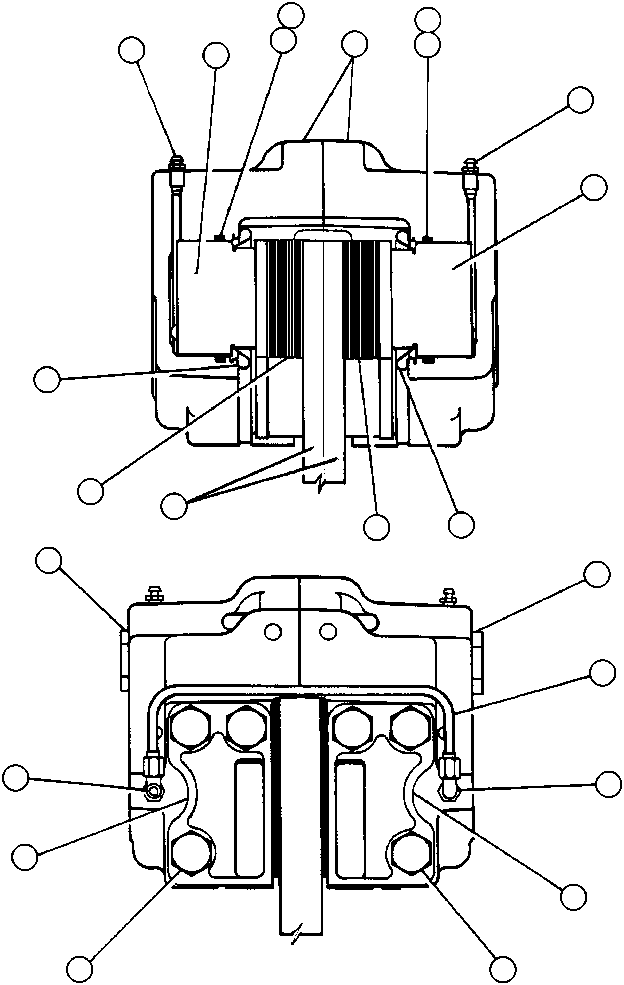

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | • HOUSING (1) | 1 | |||||
| ? | VS7864 | • • PISTON | 6 | ||||
| ? | VE1791 | • • O-RING | 6 | ||||
| ? | VE1792 | • • RING, BACKUP | 6 | ||||
| ? | TR6102 | • • SCREW, BLEEDER | 2 | ||||
| ? | VS5263 | • • (NOT USED THIS APPLICATION) | 65535 | ||||
| ? | VE3909 | • • LINING ASSEMBLY | 2 | ||||
| ? | TX4848 | • • DISC (SEE SPINDLE, HUB & BRAKE PG) | 2 | ||||
| ? | VS5264 | • • LINING, END PLATE - L.H. | 2 | ||||
| ? | VS5265 | • • LINING, END PLATE - R.H. | 2 | ||||
| ? | VH2851 | • • CAPSCREW - 3/4" - 16NF X 2" | 12 | ||||
| ? | VS5271 | • • FLAT WASHER (RECESSED) | 16 | ||||
| ? | VE1794 | • • CROSS-OVER TUBE ASSM | 1 | ||||
| ? | • • SLEEVE (1) | 2 | |||||
| ? | • • NUT (1) | 2 | |||||
| ? | VE1796 | • • FITTING, ELBOW | 1 | ||||
| ? | VE1795 | • • FITTING, TEE | 1 | ||||
| ? | VE1797 | • • CONNECTOR | 2 | ||||
| ? | VE1793 | • • BLEEDER SCREW (OPPOSITE SIDE OF CALIPER FROM #14) | 2 | ||||
| ? | • • NOTE: (1) NOT SVCD SEPARATELY. | 65535 | |||||
| ? | • • (QUANTITIES SHOWN ARE FOR ONE CALIPER ASSM ONLY) | 65535 |
