Содержание Dump Trucks Komatsu AFE32-DW 830E COLLAHUASI(AFE32-DW)

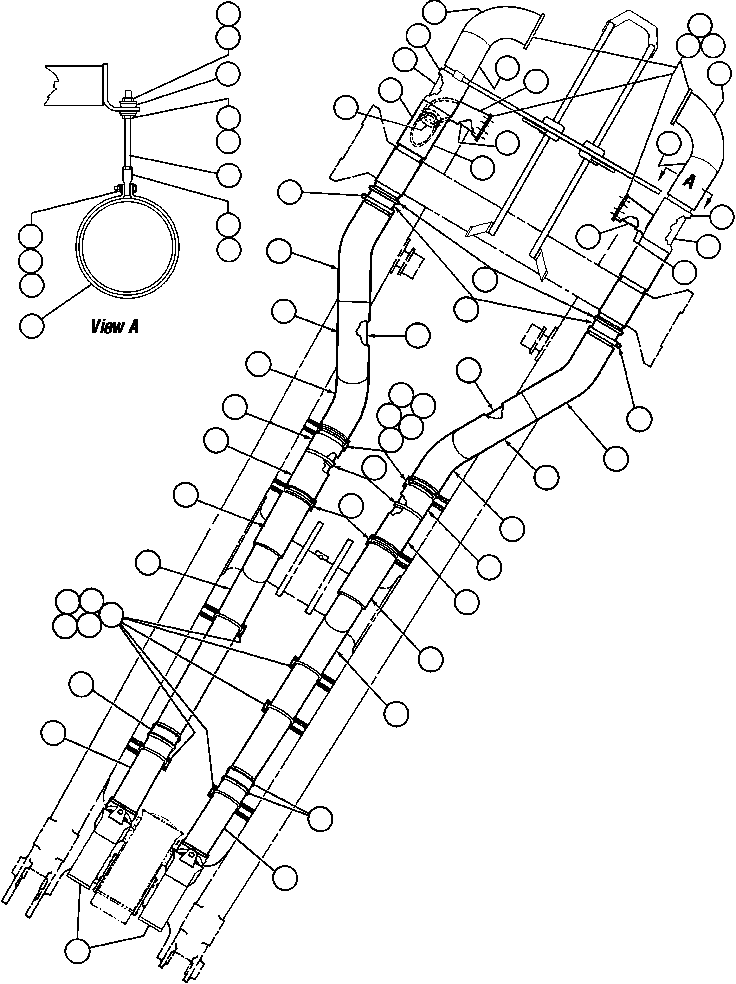

EXHAUST PIPING(050 : 41178)
Номер на схеме Каталожный номер Название Количество Детали
? C1523 • NUT - 1/2" - 13NC 32
? C1617 • • CAPSCREW - 1/2" - 13NC X 2 1/4" 32
? C1540 • • LOCKWASHER - 1/2" 32
? PB8154 • • BLANKET, EXHAUST 1
? EB6372 • • TUBE, EXHAUST - L.H. (SMALL) 1
? PB8153 • • BLANKET, EXHAUST 1
? EB6370 • • TUBE, EXHAUST - R.H. (SMALL) 1
? TA6490 • • CLAMP ASSM 8
? C0312 • • LOCKWASHER - 3/8" 2
? C1521 • • NUT - 3/8" - 16NC 2
? TA6483 • • CLAMP 1
? TA6491 • • U-BOLT 1
? EB4759 • • TUBE, EXHAUST 2
? PB7997 • • CLAMP, V-BAND 4
? PB8112 • • BLANKET, EXHAUST 1
? PB8113 • • BLANKET, EXHAUST 2
? EB7369 • • TUBE, EXHAUST - L.H. 1
? EB7368 • • TUBE, EXHAUST - R.H. 1
? PB8115 • • BLANKET, EXHAUST 1
? PB8116 • • BLANKET, EXHAUST 1
? PB8114 • • BLANKET, EXHAUST 1
? EB7735 • • SUPPORT, TUBE 9
? TZ3931 • • ROD, BENT 9
? PB8129 • • BLANKET, EXHAUST 2
? PB8128 • • BLANKET, EXHAUST 2
? PB8127 • • BLANKET, EXHAUST 2
? EG1605 • • TUBE, EXHAUST 2
? EF1737 • • ADAPTOR 1
? C0312 • • LOCKWASHER - 3/8" 18
? C1521 • • NUT - 3/8" - 16NC 18
? C1547 • • FLAT WASHER - 3/8" 18
? EF1045 • • BOX, EXHAUST 1
? EF1044 • • BOX, EXHAUST 1
? PB8747 • • BLANKET, EXHAUST 1
? EB6369 • • TUBE, EXHAUST - L.H. (LARGE) 1
? PB8149 • • BLANKET, EXHAUST 1
? PB8746 • • BLANKET, EXHAUST 1
? EB6368 • • TUBE, EXHAUST - R.H. (LARGE) 1
? PB8148 • • BLANKET, EXHAUST 1
? PB8152 • • BLANKET, EXHAUST 2
? EB5861 • • CLAMP ASSM 2
? C0312 • • LOCKWASHER - 3/8" 4
? C1521 • • NUT - 3/8" - 16NC 4
? EB5315 • • CLAMP, SMALL - R.H. 2
? EB5316 • • U-BOLT 2
? TG7496 • • LOCKNUT - 1/2" 4
? DA0557 • • WASHER 4
? VY9850 • • MOUNT, RUBBER 2
? ED3881 • • ROD, THREADED 2
? WA1604 • • END, ROD 2
? H0749 • • NUT, JAM 2
? ED1172 • • CLAMP 2
? C1615 • • CAPSCREW - 1/2" - 13NC X 1 3/4" 2
? EF1741 • • TUBE, L.H. 1
? EF1735 • • TUBE, R.H. 1
