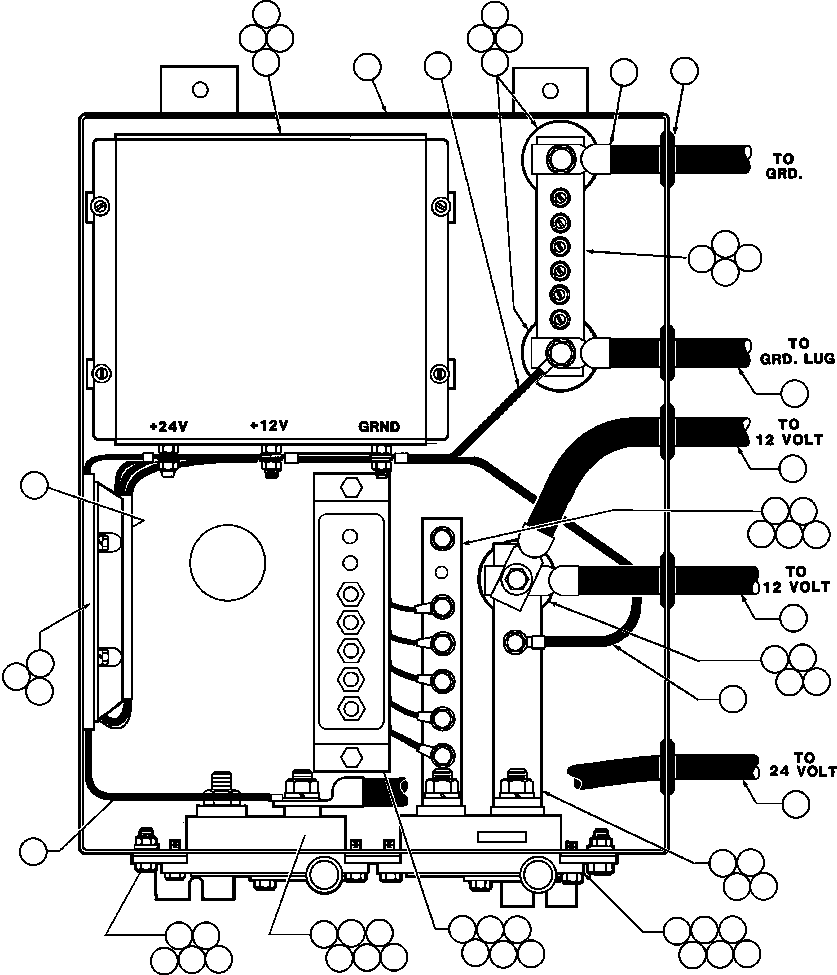

BATTERY EQUALIZER BOX ASSM (EC6396)(352 : 40509)
Номер на схеме Каталожный номер Название Количество Детали
? PB6233 SWITCH, BATTERY DISCONNECT 2
? TR1306 CAPSCREW - 1/4" - 20NC X 1" 8
? DC3584 LOCKWASHER - 1/4" 18
? SP8417 FLAT WASHER - 1/4" 8
? TD1549 NUT - 1/4" - 20NC 15
? TR5445 LOCKWASHER - 1/2" 4
? EC7202 BRACKET 1
? EC7203 STRIP, RUBBER 2
? PB7104 BREAKER, CIRCUIT - 20 AMP 7
? TD1548 CAPSCREW - 1/4" - 20NC X 5/8" 2
? EC7201 WIRE 7
? WB0756 LABEL, BREAKER 1
? TG5720 CAPSCREW - 3/8" - 16NC X 1" 15
? TC1231 LOCKWASHER - 3/8" 15
? TC1233 NUT - 3/8" - 16NC 12
? TZ6939 PLATE, MOUNTING 1
? TZ6940 GASKET 1
? EC8230 CABLE, BATTERY 1
? TZ0527 WIRE 1
? PB7924 MONITOR, BATTERY 1
? VC9144 MACHINE SCREW - #8 - 32NC X 1/2" 4
? VM9910 LOCKWASHER - #8 4
? TZ0526 WIRE 1
? PB6977 EQUALIZER, BATTERY 1
? TG1929 MACHINE SCREW - #10 - 24NC X 1/2" 4
? DC3101 LOCKWASHER - #10 10
? VC5344 FLAT WASHER - #10 4
? EC6324 BOX, EQUALIZER 1
? EC0442 BAR, BUS 1
? VM1464 MACHINE SCREW - #10 - 24NC X 5/8" 6
? DF0017 NUT - #10 - 24NC 6
? TZ0538 SPACER 3
? PB0429 INSULATOR, STAND-OFF 3
? EC7744 CABLE, BATTERY 1
? DL1371 GROMMET 5
? TZ0546 CABLE 1
? TD1809 CAPSCREW - 1/4" - 20NC X 3/4" 8
? EC1345 BAR, BUS 1
? TA7409 INSULATOR, STAND-OFF 1
? TZ0528 WIRE 1
? EC8232 CABLE, BATTERY 1
? EC8231 CABLE, BATTERY 1
? TZ6936 BAR, BUS 1
? EC3117 WIRE 1
? (DDEC II ONLY)
