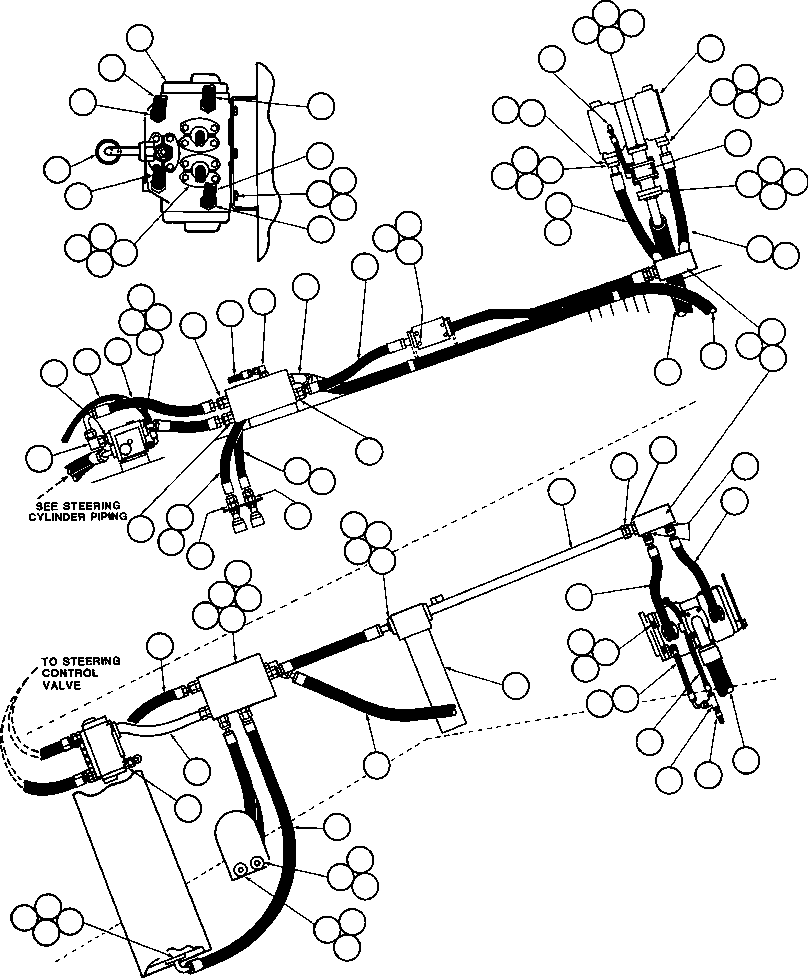

Номер на схеме |
Каталожный номер |
Название |
Количество |
Детали |
|
|
|
? |
WB0378 |
ELBOW - 90 DEG |
1 |
|
|
|
|
? |
WA4850 |
FITTING |
1 |
|
|
|
|
? |
HA6225 |
HOSE |
1 |
|
|
|
|
? |
HA6226 |
HOSE |
1 |
|
|
|
|
? |
TF3237 |
CLAMP, SPLIT |
8 |
|
|
|
|
? |
VG9096 |
SEAL, O-RING |
4 |
|
|
|
|
? |
C1609 |
CAPSCREW - 7/16" - 14NC X 1 1/2" |
16 |
|
|
|
|
? |
C5775 |
LOCKWASHER - 7/16" |
19 |
|
|
|
|
? |
WB0600 |
ADAPTOR, STRAIGHT |
1 |
|
|
|
|
? |
HA6295 |
HOSE |
1 |
|
|
|
|
? |
WB0510 |
FITTING, ELBOW - 90 DEG |
1 |
|
|
|
|
? |
WB0549 |
FITTING, ELBOW - 45 DEG |
1 |
|
|
|
|
? |
HA6457 |
HOSE |
1 |
|
|
|
|
? |
TF8077 |
FLANGE, SPLIT |
10 |
|
|
|
|
? |
VG9097 |
SEAL, O-RING |
6 |
|
|
|
|
? |
C0312 |
LOCKWASHER - 3/8" |
24 |
|
|
|
|
? |
C5751 |
CAPSCREW - 3/8" - 16NC X 2 1/2" |
4 |
|
|
|
|
? |
TY8359 |
ADAPTOR, FLANGE |
1 |
|
|
|
|
? |
PB6528 |
COUPLING, DIAGNOSTIC |
1 |
|
|
|
|
? |
PB6041 |
CAP, DUST |
1 |
|
|
|
|
? |
WB0506 |
FITTING, ELBOW - 90 DEG |
1 |
|
|
|
|
? |
PB6729 |
STEERING PUMP ASSM (SEE INDEX) |
1 |
|
40328 |
|
|
? |
C1603 |
CAPSCREW - 3/8" - 16NC X 1 1/4" |
20 |
|
|
|
|
? |
TY8353 |
VALVE, SHUT-OFF (SEE INDEX) |
1 |
|
40166 |
|
|
? |
VH6718 |
FLANGE, SPLIT |
4 |
|
|
|
|
? |
WA0232 |
SEAL, O-RING |
2 |
|
|
|
|
? |
C1615 |
CAPSCREW - 1/2" - 13NC X 1 3/4" |
8 |
|
|
|
|
? |
C1540 |
LOCKWASHER - 1/2" |
22 |
|
|
|
|
? |
HA6457 |
HOSE |
1 |
|
|
|
|
? |
HA6227 |
HOSE |
1 |
|
|
|
|
? |
HA6229 |
HOSE |
1 |
|
|
|
|
? |
WA0720 |
FLAT WASHER - 3/8" |
4 |
|
|
|
|
? |
HA4165 |
HOSE |
1 |
|
|
|
|
? |
WB0601 |
ADAPTOR, STRAIGHT |
3 |
|
|
|
|
? |
HA6242 |
HOSE |
1 |
|
|
|
|
? |
WB0433 |
FITTING, BULKHEAD STRAIGHT |
1 |
|
|
|
|
? |
WB0432 |
FITTING, BULKHEAD STRAIGHT |
1 |
|
|
|
|
? |
HA0155 |
HOSE |
1 |
|
|
|
|
? |
WB0602 |
FITTING, STRAIGHT ADAPTOR |
1 |
|
|
|
|
? |
WB0593 |
FITTING, STRAIGHT ADAPTOR |
1 |
|
|
|
|
? |
WB0599 |
FITTING, STRAIGHT ADAPTOR |
3 |
|
|
|
|
? |
WB0574 |
FITTING, STRAIGHT ADAPTOR |
1 |
|
|
|
|
? |
TZ5905 |
TUBE |
1 |
|
|
|
|
? |
VN3308 |
ADAPTOR, SWIVEL |
1 |
|
|
|
|
? |
PB4683 |
COUPLING, QUICK DISCONNECT (FEMALE) |
1 |
|
|
|
|
? |
PB4686 |
PLUG, DUST |
1 |
|
|
|
|
? |
PB4685 |
COUPLING, QUICK DISCONNECT (FEMALE) |
1 |
|
|
|
|
? |
WA3568 |
FITTING, TUBE |
1 |
|
|
|
|
? |
TA2968 |
PLUG, DUST |
1 |
|
|
|
|
? |
HA6245 |
HOSE |
1 |
|
|
|
|
? |
PB6923 |
BLEEDDOWN MANIFOLD VALVE (SEE INDEX) |
1 |
|
40002 |
|
|
? |
C1628 |
CAPSCREW - 1/2" - 13NC X 7" |
2 |
|
|
|
|
? |
WA0360 |
FLAT WASHER - 1/2" |
2 |
|
|
|
|
? |
C1523 |
NUT - 1/2" - 13NC |
2 |
|
|
|
|
? |
C1614 |
CAPSCREW - 1/2" - 13NC X 1 1/2" |
8 |
|
|
|
|
? |
TF8090 |
FLANGE, SPLIT |
4 |
|
|
|
|
? |
VG9095 |
SEAL, O-RING |
2 |
|
|
|
|
? |
PB7056 |
HIGH-PRESSURE FILTER ASSM |
1 |
|
|
|
|
? |
|
• HEAD ASSM (1) |
1 |
|
|
|
|
? |
VE1750 |
• • KIT, SEAL |
1 |
|
|
|
|
? |
VE4206 |
• INDICATOR - 24 VDC |
1 |
|
|
|
|
? |
VE3431 |
• • KIT, SEAL |
1 |
|
|
|
|
? |
VE0731 |
• ELEMENT |
1 |
|
|
|
|
? |
VE4207 |
• HOUSING |
1 |
|
|
|
|
? |
VE3434 |
• PLUG |
1 |
|
|
|
|
? |
VE3435 |
• O-RING |
1 |
|
|
|
|
? |
HA6458 |
HOSE |
1 |
|
|
|
|
? |
WA4710 |
CLAMP |
1 |
|
|
|
|
? |
C1616 |
CAPSCREW - 1/2" - 13NC X 2" |
4 |
|
|
|
|
? |
VL5418 |
SEAL, O-RING |
1 |
|
|
|
|
? |
WB0580 |
FITTING, STRAIGHT ADAPTOR |
1 |
|
|
|
|
? |
HA1508 |
HOSE |
1 |
|
|
|
|
? |
WB0417 |
TEE |
1 |
|
|
|
|
? |
HA0726 |
HOSE |
1 |
|
|
|
|
? |
HA0383 |
HOSE |
1 |
|
|
|
|
? |
HA6235 |
HOSE (SEE HYD TANK/CABINET PIPING PG) |
1 |
|
|
|
|
? |
WB0584 |
FITTING, STRAIGHT ADAPTOR |
3 |
|
|
|
|
? |
HA6238 |
HOSE (SEE HYD TANK/CABINET PIPING PG) |
1 |
|
|
|
|
? |
PB6908 |
FLOW AMPLIFIER (SEE INDEX) |
1 |
|
40361 |
|
|
? |
HA6236 |
HOSE (SEE HYD TANK/CABINET PIPING PG) |
1 |
|
|
|
|
? |
HA6235 |
HOSE (SEE HYD TANK/CABINET PIPING PG) |
1 |
|
|
|
|
? |
C1608 |
CAPSCREW - 7/16" - 14NC X 1" |
3 |
|
|
|
|
? |
PB1255 |
FLAT WASHER - 7/16" |
3 |
|
|
|
|
? |
WB0537 |
FITTING, ELBOW - 45 DEG |
1 |
|
|
|
|
? |
TZ9122 |
MANIFOLD |
1 |
|
|
|
|
? |
WA2551 |
CAPSCREW - 3/8" - 16NC X 3 1/2" |
2 |
|
|
|
|
? |
TC1233 |
NUT - 3/8" - 16NC |
2 |
|
|
|
|
? |
|
NOTE: (1) NOT SVCD SEPARATELY. |
|
|
|
|
