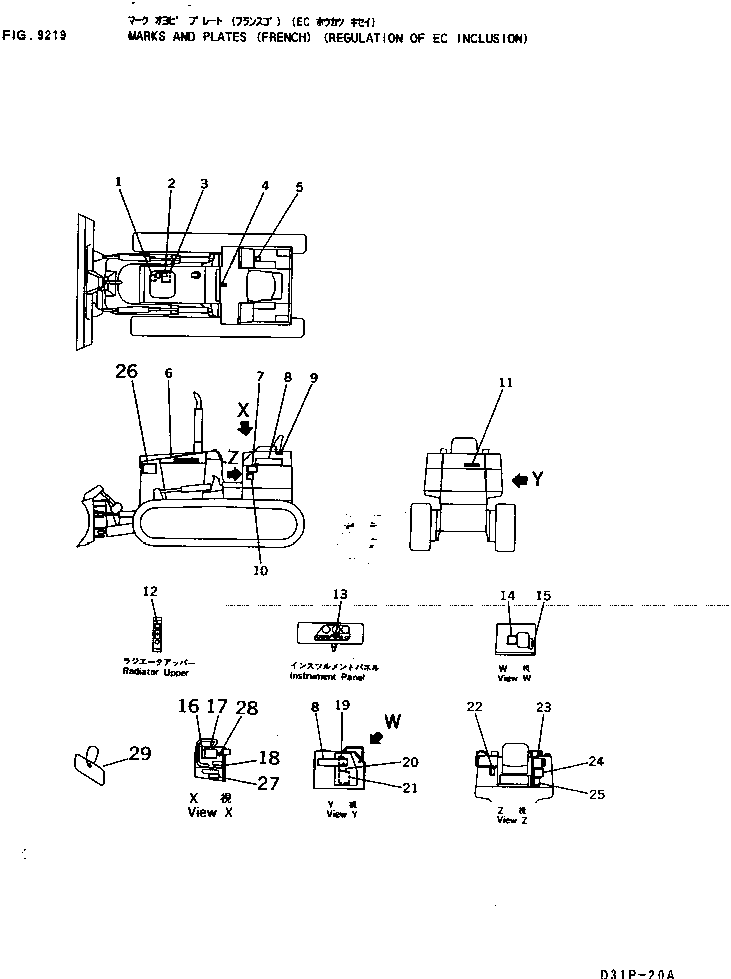

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 09650-52103 | • PLATE_ INSTRUCTION_RADIATOR | 1 | ||||
| ? | 09667-05000 | • • PLATE_ SAFETY_ENGINE ROOM | 1 | ||||
| ? | 09637-30262 | • • PLATE_ INSTRUCTION_AIR CLEANER | 1 | ||||
| ? | 113-98-41570 | • • PLATE_ OPERATING_PARKING BRAKE_ LEVER LOCK | 1 | ||||
| ? | 114-98-44250 | • • PLATE_ OPERATING_PARKING BRAKE_ LEVER LOCK | 1 | ||||
| ? | 09651-05001 | • • PLATE_ SAFETY_BEFORE OPERATING | 1 | ||||
| ? | 09651-05000 | • • PLATE_ SAFETY_BEFORE OPERATING | 1 | ||||
| ? | 114-98-44420 | • • PLATE_ MARK_KOMATSU_ L.H. | 1 | ||||
| ? | 114-98-44430 | • • PLATE_ MARK_KOMATSU_ R.H. | 1 | ||||
| ? | 09602-00000 | • • PLATE_ NAME_(LIMITED SUPPLY) | 1 | ||||
| ? | 09602-52635 | • • PLATE_ NAME_(LIMITED SUPPLY) | 1 | ||||
| ? | 04418-13060 | • • SCREW | 4 | ||||
| ? | 114-98-44971 | • • PLATE_ MARK_D37E | 2 | ||||
| ? | 09652-51101 | • • PLATE_ CAUTION_FUEL TANK | 1 | ||||
| ? | 09696-00106 | • • PLATE_ MARK_(FOR EC) | 1 | ||||
| ? | 09690-C0224 | • • PLATE_ MARK_KOMATSU | 1 | ||||
| ? | 14X-98-11630 | • • PLATE_ SAFETY_RADIATOR WATER | 1 | ||||
| ? | 09668-05000 | • • PLATE_ SAFETY_RADIATOR WATER | 1 | ||||
| ? | 09683-51050 | • • PLATE_ OPERATING_STARTING SWITCH | 1 | ||||
| ? | 114-54-48611 | • • PLATE_ OPERATING_DOZER LEVER | 1 | ||||
| ? | 114-98-44250 | • • PLATE_ OPERATING_WORK EQUIPMENT_ LEVER LOCK | 1 | ||||
| ? | 114-98-44170 | • • PLATE_ OPERATING_TURN | 1 | ||||
| ? | 114-98-44180 | • • PLATE_ OPERATING_STEERING LEVER | 1 | ||||
| ? | 114-98-44220 | • • PLATE_ OPERATING_TRANSMISSION LEVER | 1 | ||||
| ? | 14X-98-11620 | • • PLATE_ SAFETY_HYDRAULIC TANK | 1 | ||||
| ? | 09653-05000 | • • PLATE_ SAFETY_HYDRAULIC TANK | 1 | ||||
| ? | 103-98-21451 | • • PLATE_ CAUTION_HYDRAULIC FILTER | 1 | ||||
| ? | 114-98-43431 | • • CHART_ OIL | 1 | ||||
| ? | 09173-05000 | • • PLATE_ SAFETY_INSPECTION AND MAINTENANCE | 1 | ||||
| ? | 114-98-44250 | • • PLATE_ OPERATING_TRANSMISSION LEVER LOCK | 1 | ||||
| ? | 14X-98-11650 | • • PLATE_ SAFETY_TRACK ADJUSTING | 1 | ||||
| ? | 09657-05011 | • • PLATE_ SAFETY_TRACK ADJUSTING | 1 | ||||
| ? | 14X-98-11640 | • • PLATE_ CAUTION_STARTING AND AFTER OPERATING | 1 | ||||
| ? | 114-98-44530 | • • PLATE_ SAFETY_STARTING AND AFTER OPERATING | 1 | ||||
| ? | 17A-98-11640 | • • PLATE_ MARK_KEEP A SAFE DISTANCE | 2 | ||||
| ? | 362-54-17320 | • • PLATE_ OPERATING_FUEL CONTROL LEVER | 1 | ||||
| ? | 09679-02002 | • • PLATE_ OPERATING_HORN SWITCH | 1 | ||||
| ? | 09963-05000 | • • TAG_DO NOT OPERATE | 1 |
