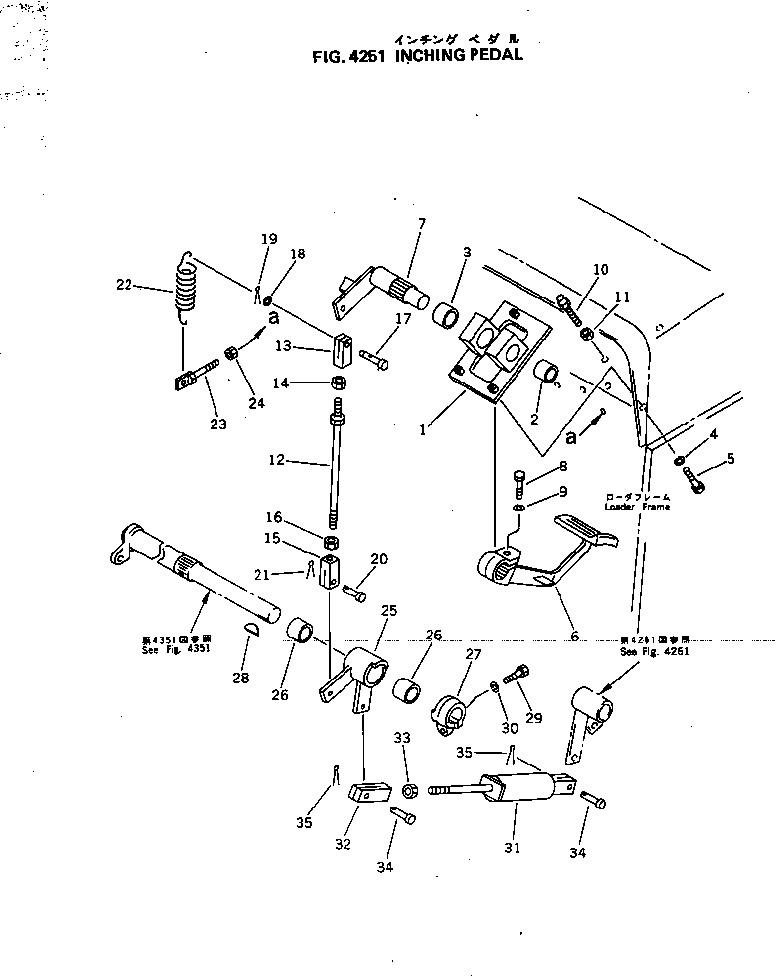

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 103-43-00330 | • BRACKET ASS'Y | 1 | ||||
| ? | ☆103-43-33110 | • • BRACKET | 1 | ||||
| ? | 09350-02520 | • • BUSHING | 1 | ||||
| ? | 09350-03020 | • • BUSHING | 1 | ||||
| ? | 01010-51030 | • • BOLT | 2 | ||||
| ? | 01602-21030 | • • WASHER_SPRING | 2 | ||||
| ? | 103-43-33190 | • • PEDAL \ | 1 | ||||
| ? | 103-43-33210 | • • LEVER \ | 1 | ||||
| ? | 01010-51030 | • • BOLT | 1 | ||||
| ? | 01602-21030 | • • WASHER_SPRING | 1 | ||||
| ? | 113-43-21340 | • • BUMPER | 1 | ||||
| ? | 01580-11008 | • • NUT | 1 | ||||
| ? | 04248-31223 | • • ROD | 1 | ||||
| ? | 113-43-21670 | • • YOKE | 1 | ||||
| ? | 01582-11210 | • • NUT | 1 | ||||
| ? | 113-43-21680 | • • YOKE_L.H. THREAD | 1 | ||||
| ? | 01508-41207 | • • NUT_L.H. THREAD | 1 | ||||
| ? | 103-43-21170 | • • PIN | 1 | ||||
| ? | 01641-21016 | • • WASHER | 1 | ||||
| ? | 04050-13020 | • • PIN_COTTER | 1 | ||||
| ? | 04205-11028 | • • PIN | 1 | ||||
| ? | 04050-13020 | • • PIN_COTTER | 1 | ||||
| ? | 230-43-14151 | • • SPRING | 1 | ||||
| ? | 113-43-31430 | • • BOLT | 1 | ||||
| ? | 01580-11008 | • • NUT | 1 | ||||
| ? | 113-43-00610 | • • LEVER ASS'Y | 1 | ||||
| ? | ☆113-43-33221 | • • LEVER | 1 | ||||
| ? | 09350-02820 | • • BUSHING | 2 | ||||
| ? | 113-43-33451 | • • BOSS | 1 | ||||
| ? | 04010-00732 | • • KEY | 1 | ||||
| ? | 01010-51245 | • • BOLT | 1 | ||||
| ? | 01602-21236 | • • WASHER_SPRING | 1 | ||||
| ? | 113-43-33470 | • • SPRING_LOOSE | 1 | ||||
| ? | 04210-21040 | • • YOKE | 1 | ||||
| ? | 01582-11008 | • • NUT | 1 | ||||
| ? | 04205-11028 | • • PIN | 2 | ||||
| ? | 04050-13020 | • • PIN_COTTER | 2 |
