Содержание Bulldozers Komatsu D31E-20 S/N 40087-42000 & A40523-UP(D31E_20)

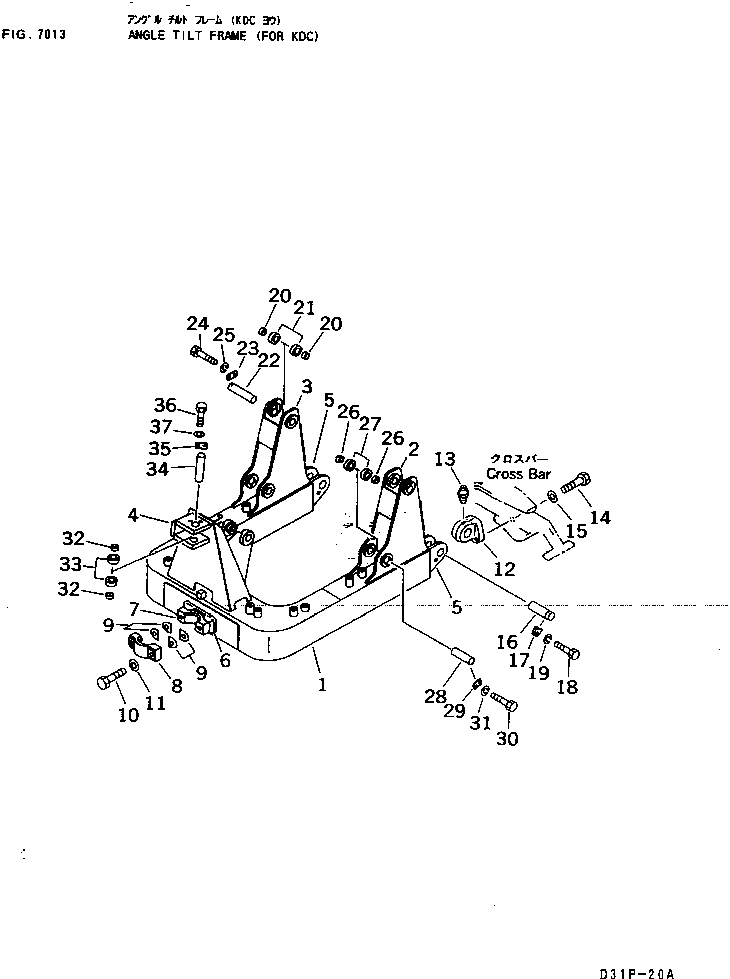

ANGLE TILT FRAME (FOR KDC)(7013 : 70003)
Номер на схеме Каталожный номер Название Количество Детали
? 114-72-00130 • FRAME ASS'Y 1
? 114-72-43400 • • FRAME 1
? 114-72-43230 • • BRACKET_L.H._(WELDED) 1
? 114-72-43240 • • BRACKET_R.H._(WELDED) 1
? 114-72-43220 • • BRACKET_(WELDED) 1
? 114-72-31250 • • BRACKET_(WELDED) 2
? 114-72-43460 • • SUPPORT_(WELDED)_(KIT) 1
? 114-72-43470 • • CAP_(KIT) 1
? 114-72-43470 • • CAP_(KIT) 1
? 114-72-31281 • • SHIM_ 0.5MM_(KIT) 4
? 114-72-31290 • • SHIM_ 1.0MM_(KIT) 4
? 01011-82430 • • BOLT_(KIT) 2
? 01643-32460 • • WASHER_(KIT) 2
? 114-72-31260 • • BRACKET 2
? 07020-00000 • • FITTING_GREASE 2
? 01010-52470 • • BOLT 6
? 01643-32460 • • WASHER 6
? 114-72-21820 • • PIN 2
? 114-72-21980 • • LOCK 2
? 01010-51435 • • BOLT 2
? 01602-21442 • • WASHER_SPRING 2
? 114-72-21950 • • COLLAR 4
? 114-72-23450 • • BUSHING 4
? 114-72-43330 • • PIN 2
? 113-70-21280 • • LOCK 2
? 01010-51025 • • BOLT 4
? 01602-21030 • • WASHER_SPRING 4
? 114-72-21950 • • COLLAR 4
? 114-72-23450 • • BUSHING 4
? 114-72-43330 • • PIN 2
? 113-70-21280 • • LOCK 2
? 01010-51025 • • BOLT 4
? 01602-21030 • • WASHER_SPRING 4
? 114-72-21950 • • COLLAR 2
? 114-72-23450 • • BUSHING 2
? 114-72-43330 • • PIN 1
? 113-70-21280 • • LOCK 1
? 01010-51025 • • BOLT 2
? 01602-21030 • • WASHER_SPRING 2
? • • SERVICE KIT 65535
? 114-72-05010 • • PIVOT ASS'Y 1
? ☆114-72-43460 • • SUPPORT 1
? 114-72-43470 • • CAP 1
? 114-72-31270 • • CAP 1
? 114-72-31281 • • SHIM_ 0.5MM 4
? 114-72-31290 • • SHIM_ 1.0MM 4
? 01010-52490 • • BOLT 2
? 01643-32460 • • WASHER 2
