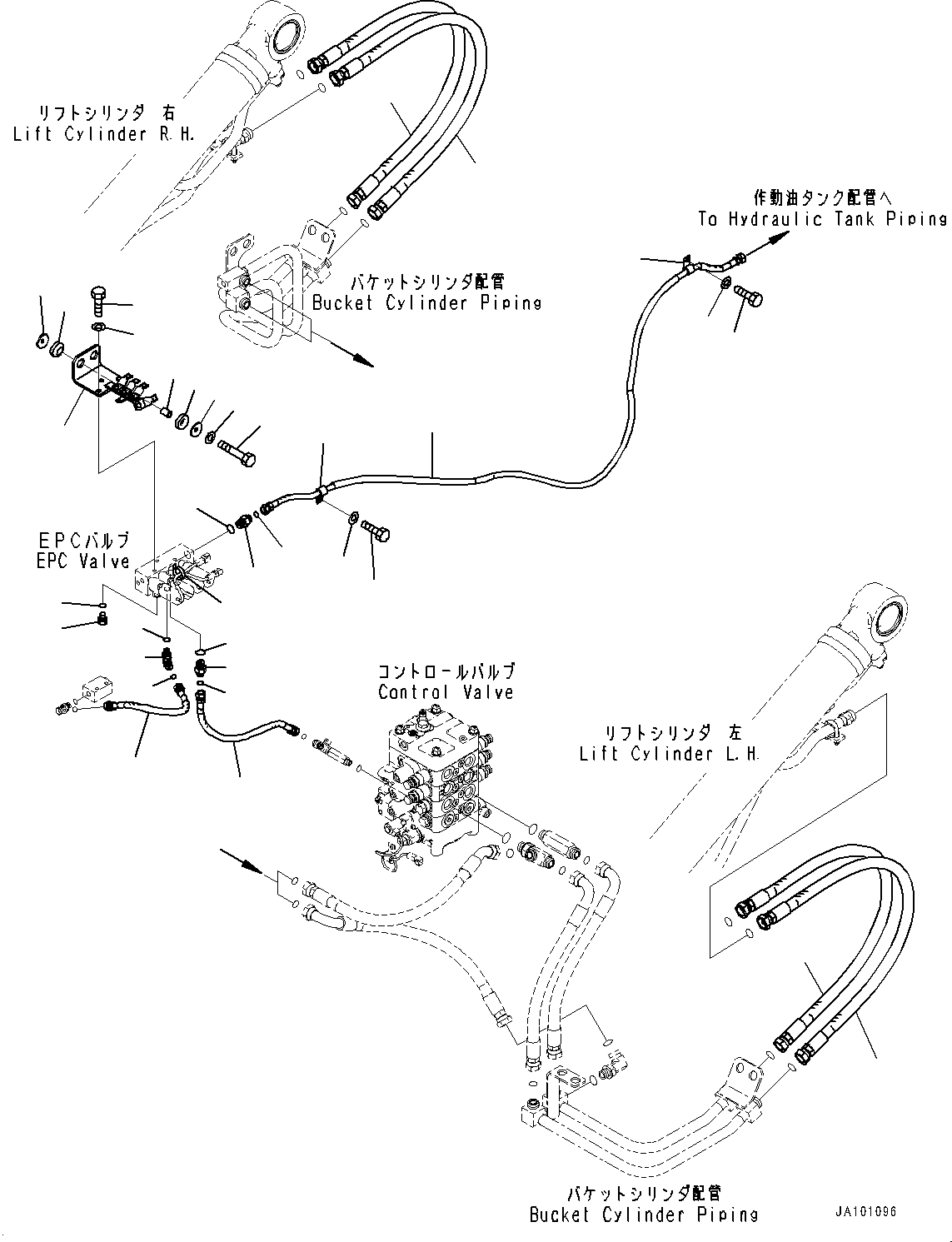

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 419-877-5110 | Bracket | 1 | SN: H70051-@ KIT-FLAG: _- SCC: SERIALNO: H70051-@ |
|||
| ? | 01010-81025 | Bolt | 3 | SN: H70051-@ KIT-FLAG: _- SCC: SERIALNO: H70051-@ |
|||
| ? | 01643-31032 | Washer | 3 | SN: H70051-@ KIT-FLAG: _- SCC: SERIALNO: H70051-@ |
|||
| ? | 419-43-17930 | Cushion | 2 | SN: H70051-@ KIT-FLAG: _- SCC: SERIALNO: H70051-@ |
|||
| ? | 415-64-13130 | Cushion | 2 | SN: H70051-@ KIT-FLAG: _- SCC: SERIALNO: H70051-@ |
|||
| ? | 417-54-13470 | Spacer | 2 | SN: H70051-@ KIT-FLAG: _- SCC: SERIALNO: H70051-@ |
|||
| ? | 415-64-13120 | Washer | 4 | SN: H70051-@ KIT-FLAG: _- SCC: SERIALNO: H70051-@ |
|||
| ? | 01010-81050 | Bolt | 2 | SN: H70051-@ KIT-FLAG: _- SCC: SERIALNO: H70051-@ |
|||
| ? | 01643-31032 | Washer | 2 | SN: H70051-@ KIT-FLAG: _- SCC: SERIALNO: H70051-@ |
|||
| ? | 02781-00315 | Union | 2 | SN: H70051-@ KIT-FLAG: _- SCC: SERIALNO: H70051-@ |
|||
| ? | 07002-12034 | O-Ring | 2 | SN: H70051-@ KIT-FLAG: _- SCC: SERIALNO: H70051-@ |
|||
| ? | 02896-11009 | O-Ring | 2 | SN: H70051-@ KIT-FLAG: _- SCC: SERIALNO: H70051-@ |
|||
| ? | 419-62-54850 | Hose | 1 | SN: H70051-@ KIT-FLAG: _- SCC: SERIALNO: H70051-@ |
|||
| ? | 419-62-54890 | Hose | 1 | SN: H70051-@ KIT-FLAG: _- SCC: SERIALNO: H70051-@ |
|||
| ? | 04434-51510 | Clip | 1 | SN: H70051-@ KIT-FLAG: _- SCC: SERIALNO: H70051-@ |
|||
| ? | 01010-81020 | Bolt | 1 | SN: H70051-@ KIT-FLAG: _- SCC: SERIALNO: H70051-@ |
|||
| ? | 01643-31032 | Washer | 1 | SN: H70051-@ KIT-FLAG: _- SCC: SERIALNO: H70051-@ |
|||
| ? | 02781-0031D | Union | 2 | SN: H70051-H70133 KIT-FLAG: _- SCC: SERIALNO: H70051-H70133 |
|||
| ? | 07002-11423 | O-Ring | 2 | SN: H70051-H70133 KIT-FLAG: _- SCC: SERIALNO: H70051-H70133 |
|||
| ? | 02896-11009 | O-Ring | 2 | SN: H70051-H70133 KIT-FLAG: _- SCC: SERIALNO: H70051-H70133 |
|||
| ? | 02782-10311 | Elbow | 1 | SN: H70051-@ KIT-FLAG: _- SCC: SERIALNO: H70051-@ |
|||
| ? | 07002-11423 | O-Ring | 1 | SN: H70051-@ KIT-FLAG: _- SCC: SERIALNO: H70051-@ |
|||
| ? | 02896-11009 | O-Ring | 1 | SN: H70051-@ KIT-FLAG: _- SCC: SERIALNO: H70051-@ |
|||
| ? | 419-62-54870 | Hose | 1 | SN: H70051-H70133 KIT-FLAG: _- SCC: SERIALNO: H70051-H70133 |
|||
| ? | 419-62-54880 | Hose | 1 | SN: H70051-H70133 KIT-FLAG: _- SCC: SERIALNO: H70051-H70133 |
|||
| ? | 419-62-53520 | Hose | 1 | SN: H70051-@ KIT-FLAG: _- SCC: SERIALNO: H70051-@ |
|||
| ? | 07040-11409 | Plug | 1 | SN: H70051-@ KIT-FLAG: _- SCC: SERIALNO: H70051-@ |
|||
| ? | 07002-11423 | O-Ring | 1 | SN: H70051-@ KIT-FLAG: _- SCC: SERIALNO: H70051-@ |
|||
| ? | 08059-00310 | Clamp | 1 | SN: H70051-@ KIT-FLAG: _- SCC: SERIALNO: H70051-@ |
|||
| ? | 04434-51510 | Clip | 1 | SN: H70051-@ KIT-FLAG: _- SCC: SERIALNO: H70051-@ |
|||
| ? | 01010-81025 | Bolt | 1 | SN: H70051-@ KIT-FLAG: _- SCC: SERIALNO: H70051-@ |
|||
| ? | 01643-31032 | Washer | 1 | SN: H70051-@ KIT-FLAG: _- SCC: SERIALNO: H70051-@ |
|||
| ? | 02777-00612 | Hose, Face Seal Type | 2 | SN: H70051-@ KIT-FLAG: _- SCC: SERIALNO: H70051-@ |
|||
| ? | 02777-00612 | Hose, Face Seal Type | 2 | SN: H70051-@ KIT-FLAG: _- SCC: SERIALNO: H70051-@ |
|||
| ? | (419-T90-5430) | Tube | KIT-FLAG: _- SCC: SERIALNO: - |
H4200-002008 | |||
| ? | (419-T90-5420) | Tube | KIT-FLAG: _- SCC: SERIALNO: - |
H4200-002008 | |||
| ? | (419-62-52860) | Tee | KIT-FLAG: _- SCC: SERIALNO: - |
H4200-002010 |
