Содержание Excavators Komatsu PC58MR-5E0 S/N F60001 AND UP(PC58MR5E)

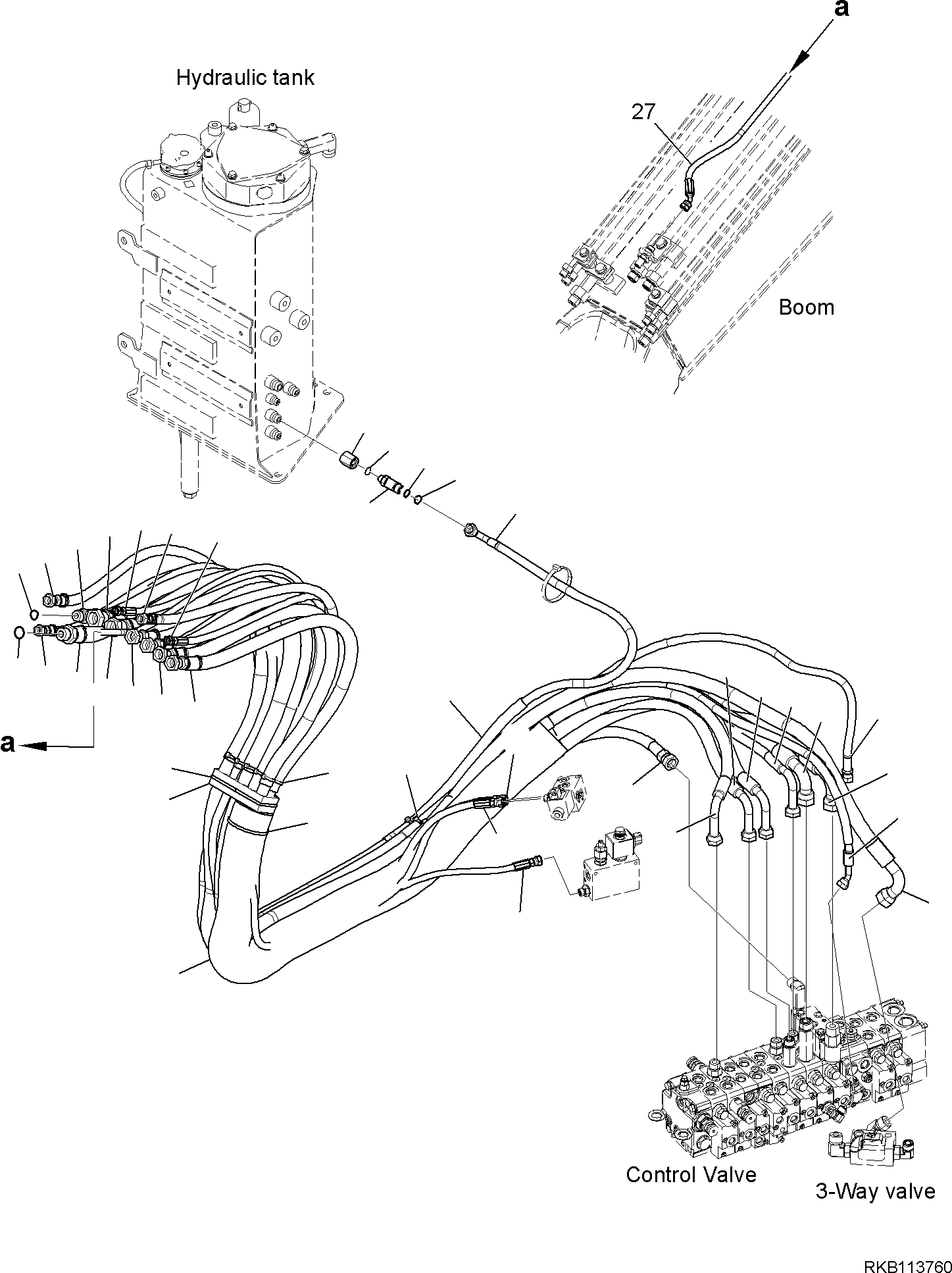

ACTUATOR PIPING, BOOM, ARM, BUCKET, ATTACHMENT PIPING(H1100-006002 : H1100-006002)
Номер на схеме Каталожный номер Название Количество Детали
? 22M-62-37961 HOSE, YELLOW 1
SN: F60001-
 A
? 22F-62-32460 • BAND, METAL 1
SN: F60001-
 B
? 08210-01806 • SPIRAL TUBE 1
SN: F60001-
 C
? 02896-11015 • O-RING 1
SN: F60001-
? 22M-62-37951 HOSE, BROWN 1
SN: F60001-
 A
? 22F-62-32460 • BAND, METAL 1
SN: F60001-
 B
? 08210-01806 • SPIRAL TUBE 1
SN: F60001-
 C
? 02896-11012 • O-RING 1
SN: F60001-
? 22M-62-35941 HOSE, GREEN 1
SN: F60001-
 A
? 22F-62-32460 • BAND, METAL 1
SN: F60001-
 B
? 08210-01806 • SPIRAL TUBE 1
SN: F60001-
 C
? 22M-62-35931 HOSE, ORANGE 1
SN: F60001-
 A
? 22F-62-32460 • BAND, METAL 1
SN: F60001-
 B
? 08210-01809 • PROTECTION 1
SN: F60001-
 C
? 22M-62-37921 HOSE, BLUE 1
SN: F60001-
 A
? 22F-62-32460 • BAND, METAL 1
SN: F60001-
 B
? 08210-01806 • SPIRAL TUBE 1
SN: F60001-
 C
? 22M-62-35911 HOSE, RED 1
SN: F60001-
 A
? 22F-62-32460 • BAND, METAL 1
SN: F60001-
 B
? 08210-01806 • SPIRAL TUBE 1
SN: F60001-
 C
? 22M-62-38862 HOSE, ASSY. 1
SN: F60001-
 A
? 22F-62-32460 • BAND, METAL 1
SN: F60001-
 B
? 08210-01202 • TUBE, SPIRAL 1
SN: F60001-
 C
? 08210-01206 • TUBE, SPIRAL 1
SN: F60001-
 D
? 22N-62-56830 HOSE, ASSY. 1
SN: F60001-
 A
? 22F-62-32460 • BAND, METAL 1
SN: F60001-
 B
? 21U-62-34730 • BAND, GREEN 2
SN: F60001-
 C
? 08210-01206 • TUBE, SPIRAL 2
SN: F60001-
 D
? 22M-62-38881 HOSE, YELLOW 1
SN: F60001-
 A
? 22F-62-32460 • BAND, METAL 1
SN: F60001-
 B
? 08210-01806 • SPIRAL TUBE 1
SN: F60001-
 C
? 22M-973-3432 HOSE, WHITE 1
SN: F60001-
 A
? 22M-973-3460 • COVER 1
SN: F60001-
 B
? 22F-62-32460 • BAND, METAL 1
SN: F60001-
 C
? 22M-973-3442 HOSE, BLACK 1
SN: F60001-
 A
? 22M-973-3450 • COVER 1
SN: F60001-
 B
? 22F-62-32460 • BAND, METAL 1
SN: F60001-
 C
? 08210-01806 • SPIRAL TUBE 1
SN: F60001-
 D
? 22N-973-5810 CUSHION 1
SN: F60001-
? 08034-20536 BAND 2
SN: F60001-
? 22N-973-3220 COVER 1
SN: F60001-
? 08034-20536 BAND 1
SN: F60001-
? 22N-62-51230 COVER 9
SN: F60001-
? 08034-20536 BAND 8
SN: F60001-
? 08034-20536 BAND 13
SN: F60001-
? 22F-62-35570 TEE 1
SN: F60001-
? 02896-11009 • O-RING 2
SN: F60001-
? 07002-11423 • O-RING 1
SN: F60001-
? 22L-62-25260 JOINT 1
SN: F60001-
? 22N-973-4050 HOSE, ASSEMBLY 1
SN: F60001-
 A
? 08210-00606 • SPIRAL TUBE 1
SN: F60001-
 B
? 22F-62-32460 • BAND, METAL 1
SN: F60001-
 C
? 21U-62-34720 • BAND, BLACK 6
SN: F60001-
 D
? 22N-973-4060 HOSE, ASSEMBLY 1
SN: F60001-
 A
? 08210-00606 • SPIRAL TUBE 1
SN: F60001-
 B
? 22F-62-32460 • BAND, METAL 1
SN: F60001-
 C
? 21U-62-34770 • BAND, WHITE 6
SN: F60001-
 D
? 22N-973-4080 HOSE, ASSEMBLY 1
SN: F60001-
 A
? 08210-00606 • SPIRAL TUBE 1
SN: F60001-
 B
? 22F-62-32460 • BAND, METAL 1
SN: F60001-
 C
