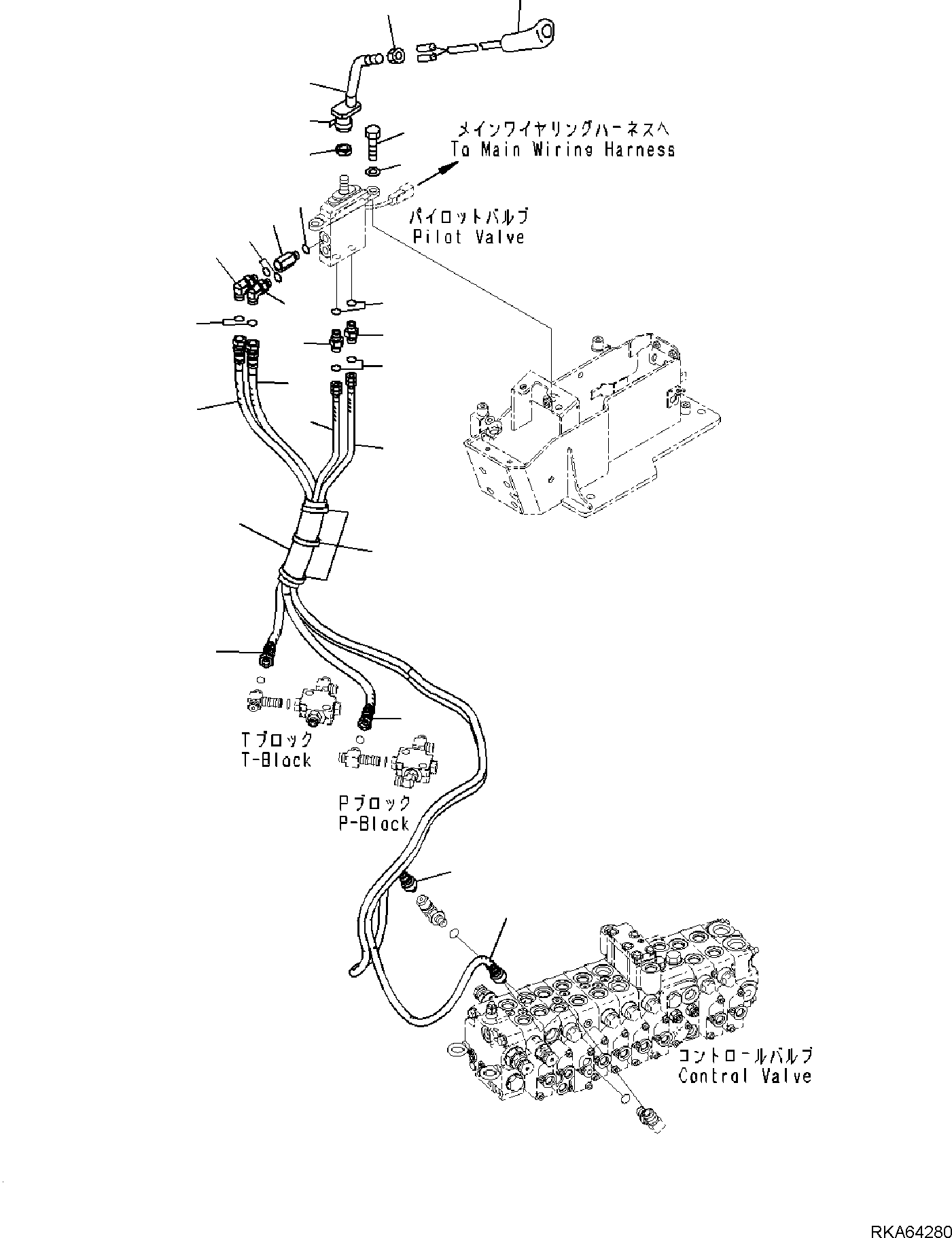

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 01010-81025 | BOLT | 2 | SN: F40001- |
|||
| ? | 01643-31032 | WASHER | 2 | SN: F40001- |
|||
| ? | 22F-43-31550 | LEVER | 1 | SN: F40001- |
|||
| ? | 22F-06-31421 | KNOB | 1 | SN: F40001- |
|||
| ? | 20T-43-71190 | NUT | 1 | SN: F40001- |
|||
| ? | 01583-11408 | NUT | 1 | SN: F40001- |
|||
| ? | 08034-40521 | BAND | 1 | SN: F40001- |
|||
| ? | 21K-62-R3110 | ELBOW | 2 | SN: F40001- |
|||
| ? | 07000-12011 | • O-RING | 1 | SN: F40001- |
|||
| ? | 02896-11008 | • O-RING | 1 | SN: F40001- |
|||
| ? | 20T-910-R660 | UNION | 1 | SN: F40001- |
X | ||
| ? | 07000-12011 | • O-RING | 1 | SN: F40001- |
|||
| ? | 11Y-62-R2140 | NIPPLE | 2 | SN: F40001- |
|||
| ? | 07000-12011 | • O-RING | 1 | SN: F40001- |
|||
| ? | 02896-11008 | • O-RING | 1 | SN: F40001- |
|||
| ? | 22N-62-R4620 | HOSE, ASSEMBLY | 1 | SN: F40001- |
A | ||
| ? | 21U-62-34750 | • BAND, BLUE | 2 | SN: F40001- |
B | ||
| ? | 21U-62-34710 | • BAND, YELLOW | 2 | SN: F40001- |
C | ||
| ? | 22N-62-R4630 | HOSE, ASSEMBLY | 1 | SN: F40001- |
A | ||
| ? | 21U-62-34760 | • BAND, RED | 2 | SN: F40001- |
B | ||
| ? | 21U-62-34710 | • BAND, YELLOW | 2 | SN: F40001- |
C | ||
| ? | 22N-62-54640 | HOSE, ASSEMBLY | 1 | SN: F40001- |
A | ||
| ? | 21U-62-34730 | • BAND, GREEN | 2 | SN: F40001- |
B | ||
| ? | 21U-62-34760 | • BAND, RED | 2 | SN: F40001- |
C | ||
| ? | 22N-62-54650 | HOSE, ASSEMBLY | 1 | SN: F40001- |
A | ||
| ? | 21U-62-34750 | • BAND, BLUE | 2 | SN: F40001- |
B | ||
| ? | 21U-62-34770 | • BAND, WHITE | 2 | SN: F40001- |
C | ||
| ? | 20P-62-72380 | SHEET | 1 | SN: F40001- |
|||
| ? | 08034-20834 | CLAMP | 3 | SN: F40001- |
