| Наименование | Страница | Код страницы |
|---|---|---|

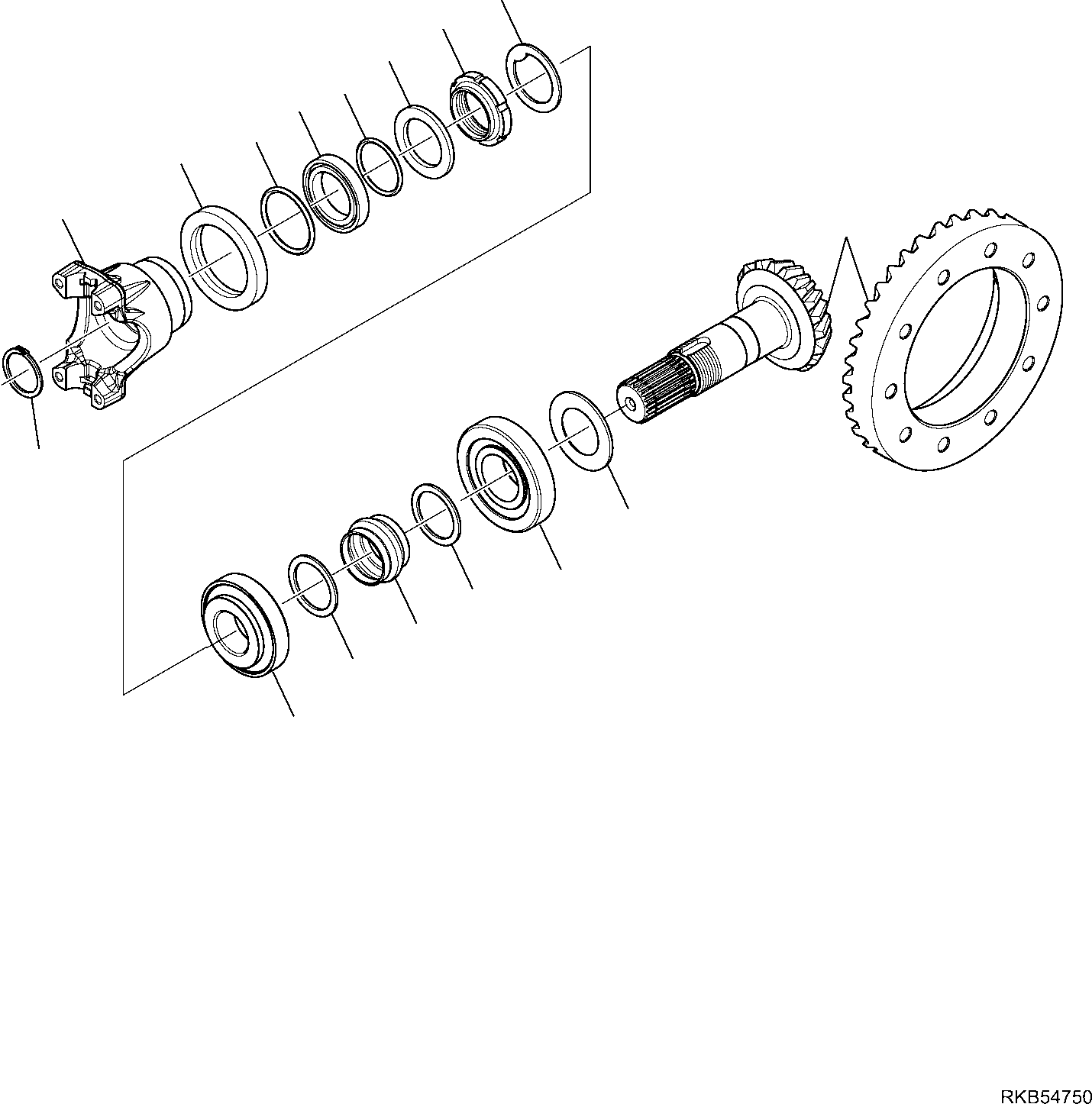

| REAR AXLE (1/10) | C-3460 | 3460 |
| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | (42N-23-11301) | REAR AXLE, ASSEMBLY | 1 | SN: F30541- |
3460 | ||
| ? | CA0024789 | • SNAP, RING | 1 | SN: F30541- |
|||
| ? | CA0137959 | • FLANGE | 1 | SN: F30541- |
|||
| ? | CA0145050 | • SEAL, RING | 1 | SN: F30541- |
|||
| ? | CA0028523 | • O-RING | 1 | SN: F30541- |
|||
| ? | CA0137517 | • SPACER | 1 | SN: F30541- |
|||
| ? | CA0028532 | • O-RING | 1 | SN: F30541- |
|||
| ? | CA0123402 | • WASHER | 1 | SN: F30541- |
|||
| ? | CA0066941 | • KIT, BEVEL GEAR | 1 | SN: F30541- |
|||
| ? | CA0115054 | • • RING, NUT | 1 | SN: F30541- |
|||
| ? | CA0113717 | • • LOCK, WASHER | 1 | SN: F30541- |
|||
| ? | ☆ | • • BEVEL GEAR | 1 | SN: F30541- |
|||
| ? | CA0125829 | • • WASHER | 2 | SN: F30541- |
|||
| ? | CA0138692 | • • SPACER | 1 | SN: F30541- |
|||
| ? | CA0273500 | • BEARING | 1 | SN: F30541- |
|||
| ? | CA0027351 | • BEARING | 1 | SN: F30541- |
|||
| ? | CA0134186 | • SHIM, 2.500 mm | 1 | SN: F30541- |
A | ||
| ? | CA0134187 | • SHIM, 2.600 MM | 1 | SN: F30541- |
B | ||
| ? | CA0134188 | • SHIM, 2.700 MM | 1 | SN: F30541- |
C | ||
| ? | CA0134189 | • SHIM, 2.800 MM | 1 | SN: F30541- |
D | ||
| ? | CA0134190 | • SHIM, 2.900 MM | 1 | SN: F30541- |
E | ||
| ? | CA0134191 | • SHIM, 3.000 MM | 1 | SN: F30541- |
F | ||
| ? | CA0134192 | • SHIM, 3.100 MM | 1 | SN: F30541- |
G | ||
| ? | CA0134193 | • SHIM, 3.200 MM | 1 | SN: F30541- |
H | ||
| ? | CA0134194 | • SHIM, 3.300 MM | 1 | SN: F30541- |
I | ||
| ? | CA0134195 | • SHIM, 3.400 MM | 1 | SN: F30541- |
J |
