| Наименование | Страница | Код страницы |
|---|---|---|
| Travel Motor, Inner Parts (2/5) | P013002 | P1410-001002 |
| Travel Motor, Inner Parts (3/5) | P013003 | P1410-001003 |
| Travel Motor, Inner Parts (5/5) | P013005 | P1410-001005 |

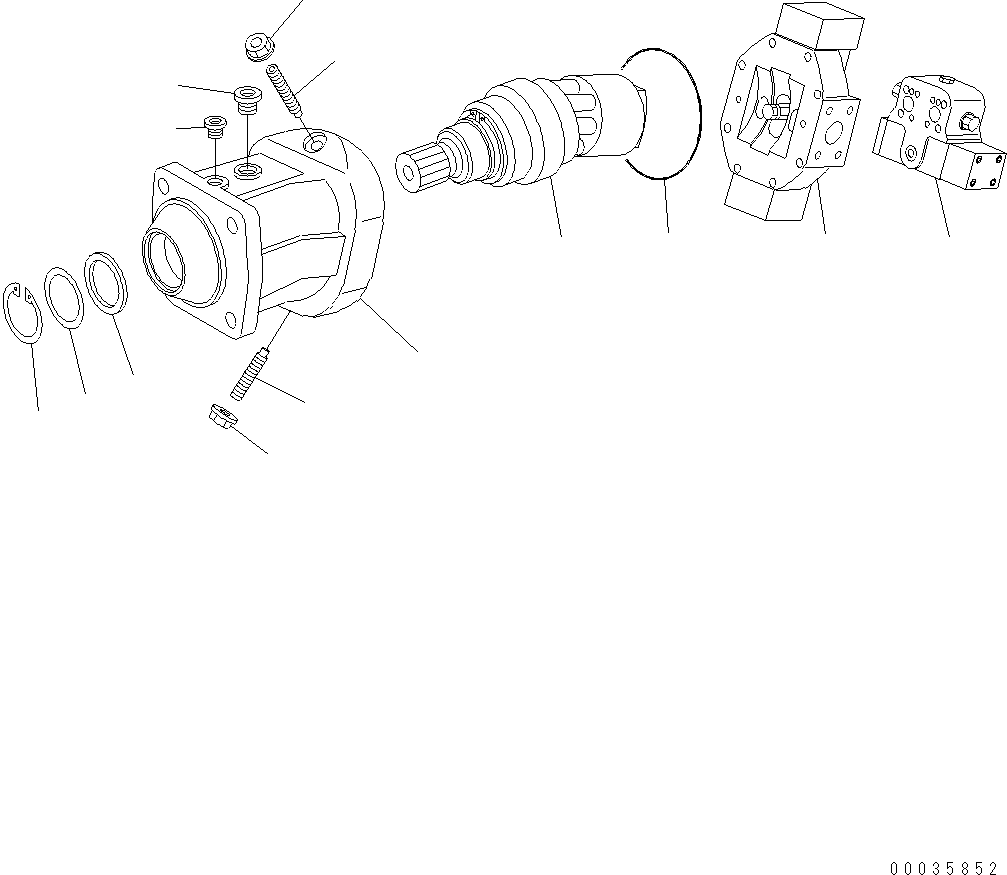

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 20E-60-31170 | Motor Assembly, Travel | 1 | SN: H52051- KIT-FLAG: _- SCC: SERIALNO: H52051- |
|||
| ? | (20K-60-31850) | • End Cover Sub Assembly | 1 | SN: H52051- KIT-FLAG: _- SCC: SERIALNO: H52051- |
P1410-001005 | ||
| ? | (20G-60-31630) | • Rotary Group | 1 | SN: H52051- KIT-FLAG: _- SCC: SERIALNO: H52051- |
P1410-001002 | ||
| ? | (20G-60-H0P10) | • Control Assembly | 1 | SN: H52051- KIT-FLAG: _- SCC: SERIALNO: H52051- |
P1410-001003 | ||
| ? | 20E-60-K2570 | • Housing | 1 | SN: H52051- KIT-FLAG: _- SCC: SERIALNO: H52051- |
|||
| ? | 20G-60-K4450 | • Screw | 1 | SN: H52051- KIT-FLAG: _- SCC: SERIALNO: H52051- |
|||
| ? | 20G-60-K4460 | • Ring | 1 | SN: H52051- KIT-FLAG: _- SCC: SERIALNO: H52051- |
|||
| ? | 20E-60-K6640 | • Seal | 1 | SN: H52051- KIT-FLAG: _- SCC: SERIALNO: H52051- |
|||
| ? | 20G-60-K4480 | • Plate, Back-Up | 1 | SN: H52051- KIT-FLAG: _- SCC: SERIALNO: H52051- |
|||
| ? | 20E-60-K2580 | • O-Ring | 1 | SN: H52051- KIT-FLAG: _- SCC: SERIALNO: H52051- |
|||
| ? | 20G-60-K4450 | • Screw | 1 | SN: H52051- KIT-FLAG: _- SCC: SERIALNO: H52051- |
|||
| ? | 20K-60-32860 | • Pin, Thread | 1 | SN: H52051- KIT-FLAG: _- SCC: SERIALNO: H52051- |
|||
| ? | 20G-60-K1480 | • Nut, Lock | 1 | SN: H52051- KIT-FLAG: _- SCC: SERIALNO: H52051- |
|||
| ? | 20K-60-32860 | • Pin, Thread | 1 | SN: H52051- KIT-FLAG: _- SCC: SERIALNO: H52051- |
|||
| ? | 20E-60-H0P08 | • Seal, Kit | 1 | SN: H52051- KIT-FLAG: _- SCC: SERIALNO: H52051- |
