Содержание Forestry Komatsu XT445L-3 A3101 - UP(XT445L-3)

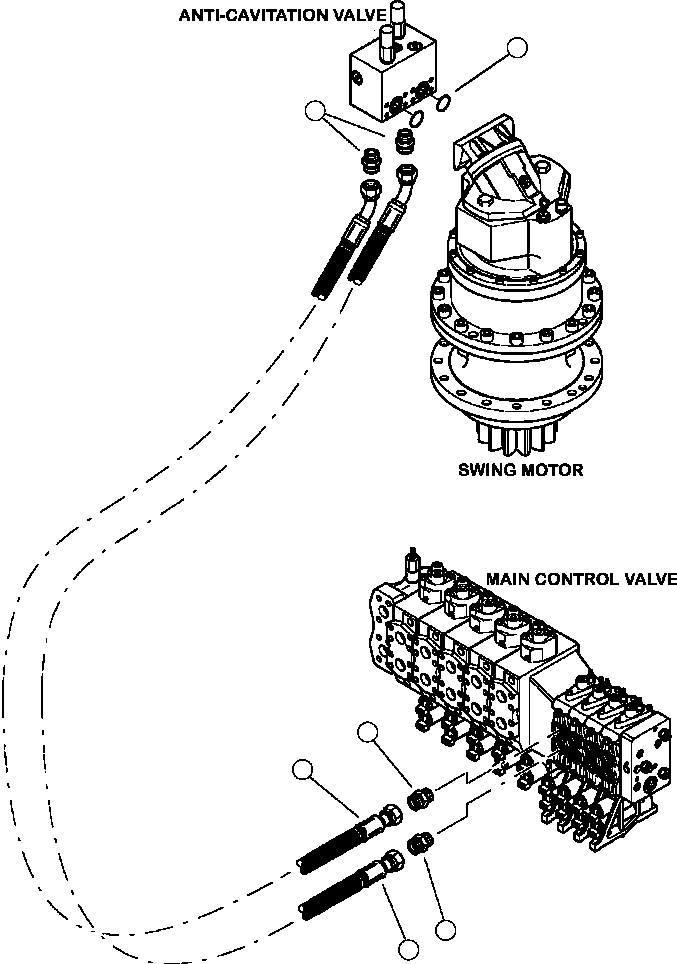

N0202-01A0 MAIN CONTROL VALVE TO SWING MOTOR LINES(N-004 : N0202-01A0)
Номер на схеме Каталожный номер Название Количество Детали
? 15152KF CONNECTOR, STR 2
? 4A1-62-20190 HOSE ASSEMBLY 1
? 4A1-62-20180 HOSE ASSEMBLY 1
? 15152KF CONNECTOR, STR 2
? O-RING ( SEE FIG. N0700-01A0 )

Forestry Komatsu / XT445L-3 A3101 - UP(XT445L-3) / N0202-01A0 MAIN CONTROL VALVE TO SWING MOTOR LINES(N-004 : N0202-01A0)
?
?
?
?
?
?
