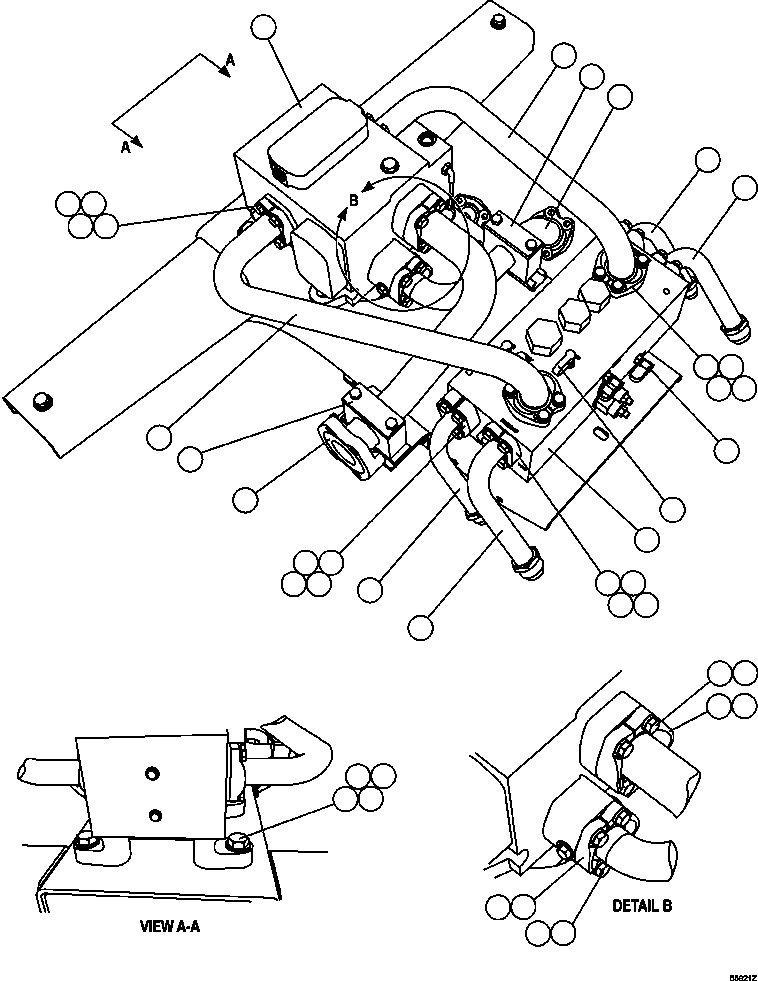

| Наименование | Страница | Код страницы |
|---|---|---|
| HOIST CONTROL VALVE ASSM PB8267 | 418 | 55008 |
| OVERCENTER MANIFOLD VALVE ASSM PC0522 | 422 | 55589 |
| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | PB8267 | HOIST VALVE ASSEMBLY (SEE INDEX) | 1 | 55008 | |||
| ? | EH3589 | TUBE | 1 | ||||
| ? | WA4712 | CLAMP, HYDRA ZORB - 2" | 1 | ||||
| ? | EC1209 | TUBE | 1 | ||||
| ? | EH3594 | TUBE | 2 | ||||
| ? | EC1880 | TUBE | 2 | ||||
| ? | C1614 | CAPSCREW - 1/2" - 13NC X 1 1/2" | 16 | ||||
| ? | C1540 | LOCKWASHER - 1/2" | 24 | ||||
| ? | TF3231 | CLAMP, SPLIT FLANGE | 6 | ||||
| ? | WA0187 | O-RING | 3 | ||||
| ? | PB6770 | COUPLING, MALE QUICK DISCONNECT | 5 | ||||
| ? | 162144 | • CAP, DUST | 1 | ||||
| ? | PB5862 | • COUPLING, MALE QUICK DISCONNECT | 1 | ||||
| ? | TF5194 | • • O-RING | 1 | ||||
| ? | PC0522 | OVERCENTER MANIFOLD VALVE ASSM (SEE INDEX) | 1 | 55589 | |||
| ? | TF8090 | CLAMP, SPLIT FLANGE | 2 | ||||
| ? | VG9095 | O-RING | 1 | ||||
| ? | C1615 | CAPSCREW - 1/2" - 13NC X 1 3/4" | 12 | ||||
| ? | WA5630 | CLAMP, SPLIT FLANGE | 2 | ||||
| ? | VG9096 | O-RING | 1 | ||||
| ? | EC1210 | TUBE | 1 | ||||
| ? | WA5460 | CLAMP, HEAVY DUTY | 1 | ||||
| ? | EH3590 | TUBE | 1 | ||||
| ? | VH6718 | CLAMP, SPLIT FLANGE | 2 | ||||
| ? | WA0232 | O-RING | 1 | ||||
| ? | C1663 | CAPSCREW - 7/8" - 9NC X 3" | 3 | ||||
| ? | C1543 | LOCKWASHER - 7/8" | 3 | ||||
| ? | C1529 | NUT - 7/8" - 9NC | 3 | ||||
| ? | WA0363 | FLAT WASHER - 7/8" | 3 |
