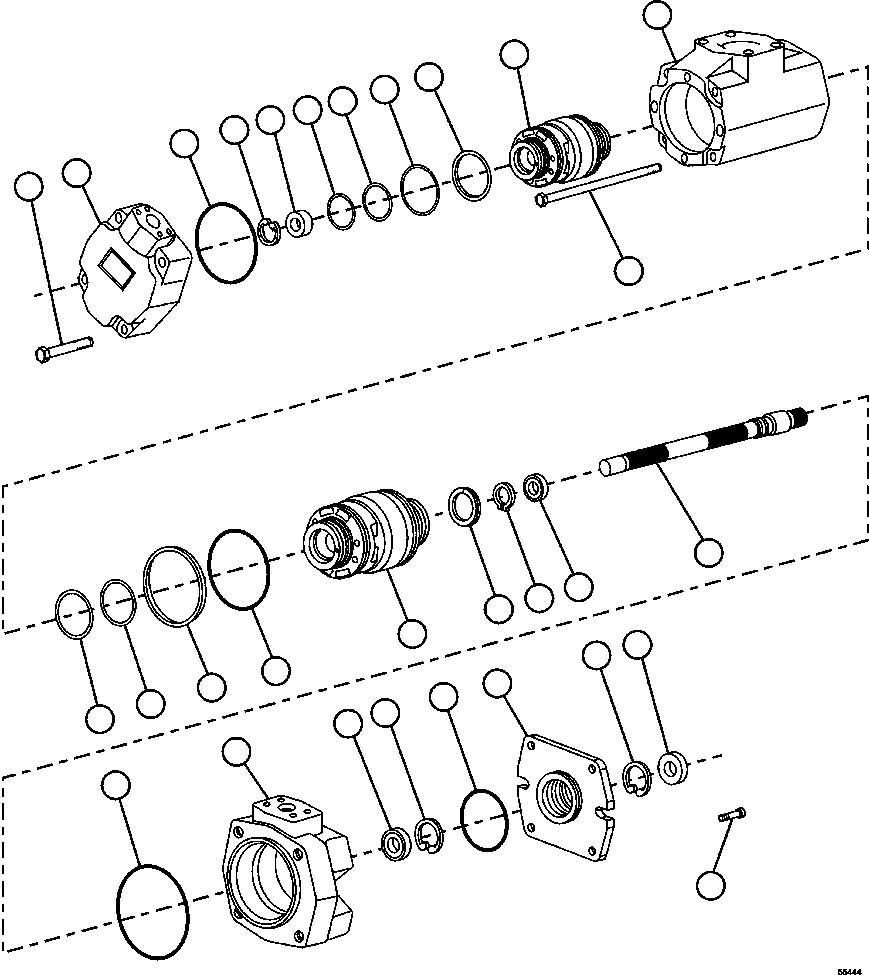

STEERING & BRAKE PUMP ASSEMBLY PC0094(500 : 55444)
Номер на схеме Каталожный номер Название Количество Детали
? BF3878 SCREW 4
? BF3879 COVER, INLET 1
? BF3877 O-RING (1) 1
? BF3876 RING, RETAINING 1
? BF3875 CARRIER, BEARING 1
? BF3874 RING, BACKUP (1)/(2) 2
? BF4670 O-RING (1)/(2) 2
? BF3872 O-RING (1)/(2) 2
? BF3871 RING, BACKUP (1)/(2) 2
? CARTRIDGE (2)/(5) 1
? BF3880 SCREW 4
? BF3881 HOUSING 1
? BF3155 RING, BACKUP (1)/(3) 2
? BF4670 O-RING (1)/(3) 2
? BF3152 RING, BACKUP (1)/(3) 2
? BF3154 O-RING (1)/(3) 2
? CARTRIDGE (3)/(5) 1
? VS0616 RING, LOCK 1
? SP1068 RING, RETAINING 1
? C9809 BEARING, BALL 1
? BF4671 SHAFT 1
? BF3149 O-RING (1) 1
? BF2816 BODY, OUTLET 1
? VJ9192 SEAL, OIL (1) 2
? BF3150 RING, RETAINING (1)/(4) 2
? BF3151 O-RING (1) 1
? BF3158 FLANGE (4) 1
? BF3159 SCREW (4) 4
? BF4669 NOTE: (1) INCLUDED IN BF4669 SEAL KIT.
? BF3870 (2) INCLUDED IN BF3870 CARTRIDGE KIT.
? BF2820 (3) INCLUDED IN BF2820 CARTRIDGE KIT.
? BF3158 (4) INCLUDED IN BF3158 FLANGE KIT.
? (5) NOT SERVICED SEPARATELY.

Dump Trucks Komatsu / AFE47-GP 730E S/N A30628 - A30629 & A30632 KUMBA KOLOMELA(AFE47-GP) / STEERING & BRAKE PUMP ASSEMBLY PC0094(500 : 55444)
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
