Номер на схеме |
Каталожный номер |
Название |
Количество |
Детали |
|
|
|
? |
EL4832 |

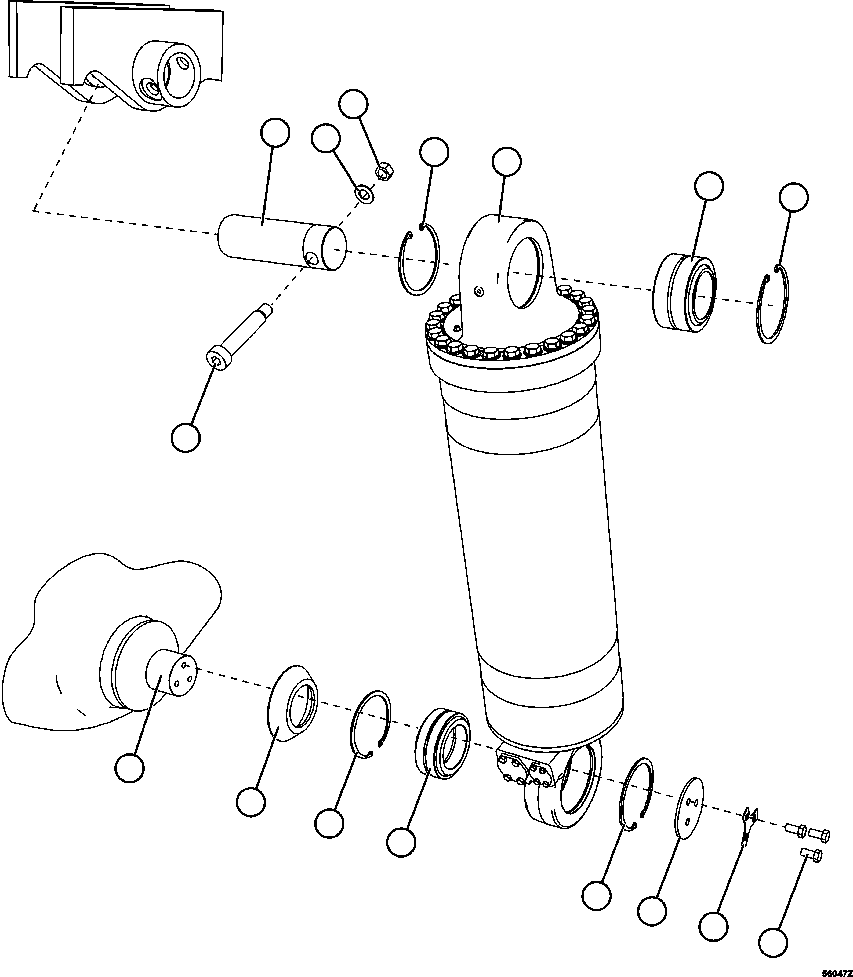

HOIST CYLINDER WITH BEARINGS (2) |
1 |
|
|
|
|
? |
EL4833 |
• HOIST CYLINDER ASSEMBLY (3) (SEE INDEX) |
1 |
|
55740 |
|
|
? |
PC0831 |
• BUSHING, BALL (1) |
1 |
|
|
|
|
? |
PB9934 |
• RING, RETAINER (INTERNAL) (1) |
2 |
|
|
|
|
? |
VN9351 |
• RING, RETAINER |
2 |
|
|
|
|
? |
PB9622 |
• BEARING, SPHERICAL |
1 |
|
|
|
|
? |
EC6820 |
PIN, UPPER HOIST (1) |
1 |
|
|
|
|
? |
WA0365 |
FLAT WASHER - 1 1/8" |
1 |
|
|
|
|
? |
TA6719 |
NUT - 1 1/8" - 7NC |
1 |
|
|
|
|
? |
EM8117 |
SHOULDER BOLT - 1 1/4" - 7NC X 6.88" (1) |
1 |
|
|
|
|
? |
C7645 |
CAPSCREW - 3/4" - 10NC X 1 1/2" |
3 |
|
|
|
|
? |
TX3664 |
PLATE, LOCKING |
1 |
|
|
|
|
? |
VA4707 |
PLATE, RETAINER |
1 |
|
|
|
|
? |
VA5501 |
SPACER, BEARING |
1 |
|
|
|
|
? |
JG9884 |
SHAFT, HOIST BEARING |
1 |
|
|
|
|
? |
AK5664 |
NOTE: (1) INCLUDED IN AK5664 UPPER HOIST PIN KIT. |
|
|
|
|
|
? |
|
(2) COMES WITH BEARINGS AND RETAINER RINGS INSTALLED. |
|
|
|
|
|
? |
|
(3) NOT SERVICED AS AN ASSEMBLY. ORDER NEXT HIGHER LEVEL. |
|
|
|
|
|
? |
|
(QUANTITIES SHOWN ARE FOR ONE SIDE ONLY.) |
|
|
|
|
