Содержание Excavators Komatsu PC220-8M0 S/N Y221001-UP(ZEPB401)

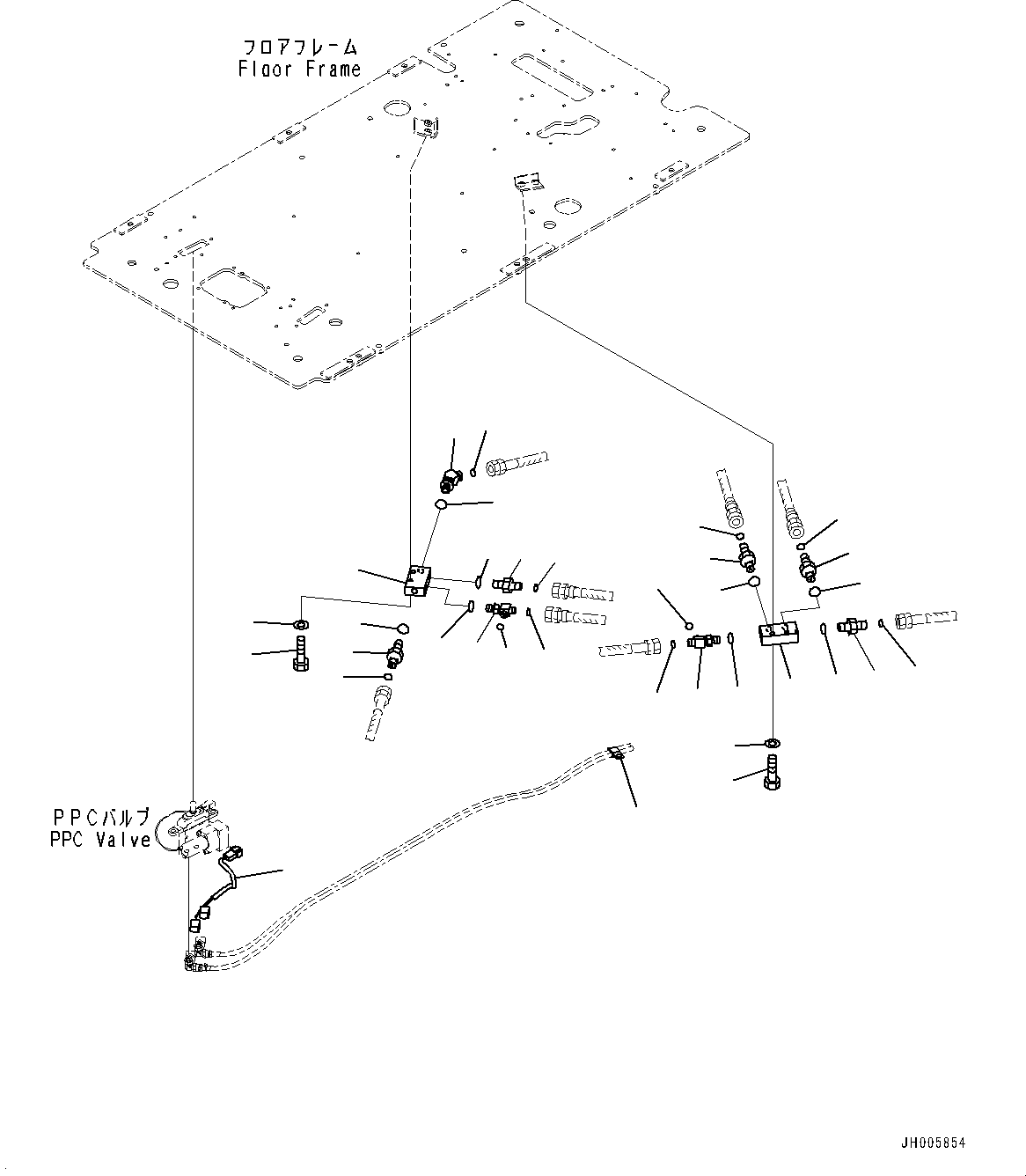

CAB (1-ADDITIONAL ACTUATOR PIPING,ACCUMULATOR,WITH KOMTRAX,GPRS,AM-FM RADIO) (FLOOR,P,T BLOCK)(|ZK00087 : |ZK00087)
Номер на схеме Каталожный номер Название Количество Детали
? 20Y-62-15831 BLOCK 1
Field_1:
Field_2: Y221001
Field_3: 100012
Field_4:
Field_5: 1
Field_6: X21-2214150
Field_7: CAB (1-ADDITIONAL ACTUATOR PIPING,ACCUMULATOR,WITH KOMTRAX,GPRS,
? 01010-81045 BOLT 2
Field_1:
Field_2: Y221001
Field_3: 100012
Field_4:
Field_5: 2
Field_6: X21-2214150
Field_7: CAB (1-ADDITIONAL ACTUATOR PIPING,ACCUMULATOR,WITH KOMTRAX,GPRS,
? 01643-31032 WASHER 2
Field_1:
Field_2: Y221001
Field_3: 100012
Field_4:
Field_5: 3
Field_6: X21-2214150
Field_7: CAB (1-ADDITIONAL ACTUATOR PIPING,ACCUMULATOR,WITH KOMTRAX,GPRS,
? 11Y-62-12510 ELBOW 1
Field_1:
Field_2: Y221001
Field_3: 100012
Field_4:
Field_5: 4
Field_6: X21-2214150
Field_7: CAB (1-ADDITIONAL ACTUATOR PIPING,ACCUMULATOR,WITH KOMTRAX,GPRS,
? 02896-11009 O-RING 1
Field_1:
Field_2: Y221001
Field_3: 100012
Field_4:
Field_5: 5
Field_6: X21-2214150
Field_7: CAB (1-ADDITIONAL ACTUATOR PIPING,ACCUMULATOR,WITH KOMTRAX,GPRS,
? 07002-11423 O-RING 1
Field_1:
Field_2: Y221001
Field_3: 100012
Field_4:
Field_5: 6
Field_6: X21-2214150
Field_7: CAB (1-ADDITIONAL ACTUATOR PIPING,ACCUMULATOR,WITH KOMTRAX,GPRS,
? 02781-0021D UNION 2
Field_1:
Field_2: Y221001
Field_3: 100012
Field_4:
Field_5: 7
Field_6: X21-2214150
Field_7: CAB (1-ADDITIONAL ACTUATOR PIPING,ACCUMULATOR,WITH KOMTRAX,GPRS,
? 02896-11008 O-RING 2
Field_1:
Field_2: Y221001
Field_3: 100012
Field_4:
Field_5: 8
Field_6: X21-2214150
Field_7: CAB (1-ADDITIONAL ACTUATOR PIPING,ACCUMULATOR,WITH KOMTRAX,GPRS,
? 07002-11423 O-RING 2
Field_1:
Field_2: Y221001
Field_3: 100012
Field_4:
Field_5: 9
Field_6: X21-2214150
Field_7: CAB (1-ADDITIONAL ACTUATOR PIPING,ACCUMULATOR,WITH KOMTRAX,GPRS,
? 11Y-62-12330 TEE 1
Field_1:
Field_2: Y221001
Field_3: 100012
Field_4:
Field_5: 10
Field_6: X21-2214150
Field_7: CAB (1-ADDITIONAL ACTUATOR PIPING,ACCUMULATOR,WITH KOMTRAX,GPRS,
? 02896-11008 O-RING 2
Field_1:
Field_2: Y221001
Field_3: 100012
Field_4:
Field_5: 11
Field_6: X21-2214150
Field_7: CAB (1-ADDITIONAL ACTUATOR PIPING,ACCUMULATOR,WITH KOMTRAX,GPRS,
? 07002-11423 O-RING 1
Field_1:
Field_2: Y221001
Field_3: 100012
Field_4:
Field_5: 12
Field_6: X21-2214150
Field_7: CAB (1-ADDITIONAL ACTUATOR PIPING,ACCUMULATOR,WITH KOMTRAX,GPRS,
? 20Y-06-41251 WIRING HARNESS 1
Field_1:
Field_2: Y221001
Field_3: 100012
Field_4:
Field_5: 13
Field_6: X21-2214150
Field_7: CAB (1-ADDITIONAL ACTUATOR PIPING,ACCUMULATOR,WITH KOMTRAX,GPRS,
? 04435-51210 CLIP 1
Field_1:
Field_2: Y221001
Field_3: 100012
Field_4:
Field_5: 14
Field_6: X21-2214150
Field_7: CAB (1-ADDITIONAL ACTUATOR PIPING,ACCUMULATOR,WITH KOMTRAX,GPRS,
? 20Y-62-15831 BLOCK 1
Field_1:
Field_2: Y221001
Field_3: 100012
Field_4:
Field_5: 15
Field_6: X21-2214150
Field_7: CAB (1-ADDITIONAL ACTUATOR PIPING,ACCUMULATOR,WITH KOMTRAX,GPRS,
? 01010-81045 BOLT 2
Field_1:
Field_2: Y221001
Field_3: 100012
Field_4:
Field_5: 16
Field_6: X21-2214150
Field_7: CAB (1-ADDITIONAL ACTUATOR PIPING,ACCUMULATOR,WITH KOMTRAX,GPRS,
? 01643-31032 WASHER 2
Field_1:
Field_2: Y221001
Field_3: 100012
Field_4:
Field_5: 17
Field_6: X21-2214150
Field_7: CAB (1-ADDITIONAL ACTUATOR PIPING,ACCUMULATOR,WITH KOMTRAX,GPRS,
? 02781-0031D UNION 1
Field_1:
Field_2: Y221001
Field_3: 100012
Field_4:
Field_5: 18
Field_6: X21-2214150
Field_7: CAB (1-ADDITIONAL ACTUATOR PIPING,ACCUMULATOR,WITH KOMTRAX,GPRS,
? 02896-11009 O-RING 1
Field_1:
Field_2: Y221001
Field_3: 100012
Field_4:
Field_5: 19
Field_6: X21-2214150
Field_7: CAB (1-ADDITIONAL ACTUATOR PIPING,ACCUMULATOR,WITH KOMTRAX,GPRS,
? 07002-11423 O-RING 1
Field_1:
Field_2: Y221001
Field_3: 100012
Field_4:
Field_5: 20
Field_6: X21-2214150
Field_7: CAB (1-ADDITIONAL ACTUATOR PIPING,ACCUMULATOR,WITH KOMTRAX,GPRS,
? 02781-0021D UNION 2
Field_1:
Field_2: Y221001
Field_3: 100012
Field_4:
Field_5: 21
Field_6: X21-2214150
Field_7: CAB (1-ADDITIONAL ACTUATOR PIPING,ACCUMULATOR,WITH KOMTRAX,GPRS,
? 02896-11008 O-RING 2
Field_1:
Field_2: Y221001
Field_3: 100012
Field_4:
Field_5: 22
Field_6: X21-2214150
Field_7: CAB (1-ADDITIONAL ACTUATOR PIPING,ACCUMULATOR,WITH KOMTRAX,GPRS,
? 07002-11423 O-RING 2
Field_1:
Field_2: Y221001
Field_3: 100012
Field_4:
Field_5: 23
Field_6: X21-2214150
Field_7: CAB (1-ADDITIONAL ACTUATOR PIPING,ACCUMULATOR,WITH KOMTRAX,GPRS,
? 11Y-62-12330 TEE 1
Field_1:
Field_2: Y221001
Field_3: 100012
Field_4:
Field_5: 24
Field_6: X21-2214150
Field_7: CAB (1-ADDITIONAL ACTUATOR PIPING,ACCUMULATOR,WITH KOMTRAX,GPRS,
? 02896-11008 O-RING 2
Field_1:
Field_2: Y221001
Field_3: 100012
Field_4:
Field_5: 25
Field_6: X21-2214150
Field_7: CAB (1-ADDITIONAL ACTUATOR PIPING,ACCUMULATOR,WITH KOMTRAX,GPRS,
? 07002-11423 O-RING 1
Field_1:
Field_2: Y221001
Field_3: 100012
Field_4:
Field_5: 26
Field_6: X21-2214150
Field_7: CAB (1-ADDITIONAL ACTUATOR PIPING,ACCUMULATOR,WITH KOMTRAX,GPRS,
