Содержание Excavators Komatsu PC400-7(-50) S/N Y400001-UP(ZEPB000901)

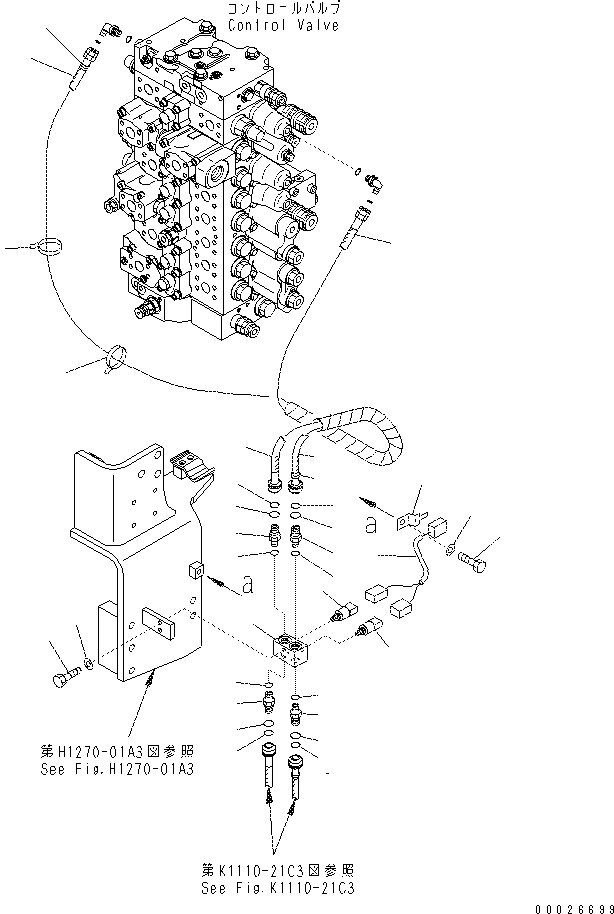

PPC VALVE PIPING (BLOCK) (1 ACTUATOR) (-50 deg celcius SPEC.)(|ZH00107 : |ZH00107)
Номер на схеме Каталожный номер Название Количество Детали
? 20Y-62-43430 BLOCK 1
Field_1:
Field_2: Y400001
Field_3: Y400401
Field_4:
Field_5: 1
Field_6: X21-1064370
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 01010-80830 BOLT 2
Field_1:
Field_2: Y400001
Field_3: Y400401
Field_4:
Field_5: 2
Field_6: X21-1064370
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 01643-30823 WASHER 2
Field_1:
Field_2: Y400001
Field_3: Y400401
Field_4:
Field_5: 3
Field_6: X21-1064370
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 195-61-49240 NIPPLE 4
Field_1:
Field_2: Y400001
Field_3: Y400401
Field_4:
Field_5: 4
Field_6: X21-1064370
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 208-62-73430 NIPPLE 4
Field_1:
Field_2: Y400001
Field_3: Y400401
Field_4: A2
Field_5: 5
Field_6: X21-1064370
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 195-61-49270 • O-RING 1
Field_1:
Field_2: Y400001
Field_3: Y400401
Field_4:
Field_5: 6
Field_6: X21-1064370
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 195-61-49220 • O-RING 1
Field_1:
Field_2: Y400001
Field_3: Y400401
Field_4:
Field_5: 7
Field_6: X21-1064370
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 07002-51423 O-RING 4
Field_1:
Field_2: Y400001
Field_3: Y400401
Field_4:
Field_5: 8
Field_6: X21-1064370
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 206-06-61130 SWITCH 2
Field_1:
Field_2: Y400001
Field_3: Y400401
Field_4:
Field_5: 9
Field_6: X21-1064370
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 208-06-71650 WIRING HARNESS 1
Field_1:
Field_2: Y400001
Field_3: Y400401
Field_4:
Field_5: 10
Field_6: X21-1064370
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 08053-01512 CLIP 1
Field_1:
Field_2: Y400001
Field_3: Y400401
Field_4:
Field_5: 11
Field_6: X21-1064370
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 01010-81225 BOLT 1
Field_1:
Field_2: Y400001
Field_3: Y400401
Field_4:
Field_5: 12
Field_6: X21-1064370
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 01643-31232 WASHER 1
Field_1:
Field_2: Y400001
Field_3: Y400401
Field_4:
Field_5: 13
Field_6: X21-1064370
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 208-62-73660 HOSE 1
Field_1:
Field_2: Y400001
Field_3: Y400401
Field_4:
Field_5: 14
Field_6: X21-1064370
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 208-62-73670 HOSE 1
Field_1:
Field_2: Y400001
Field_3: Y400401
Field_4:
Field_5: 15
Field_6: X21-1064370
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 20Y-62-22810 BAND, YELLOW 2
Field_1:
Field_2: Y400001
Field_3: Y400401
Field_4:
Field_5: 16
Field_6: X21-1064370
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 08034-20536 BAND 2
Field_1:
Field_2: Y400001
Field_3: Y400401
Field_4:
Field_5: 17
Field_6: X21-1064370
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
