Содержание Excavators Komatsu PC400-7(-50) S/N Y400001-UP(ZEPB000901)

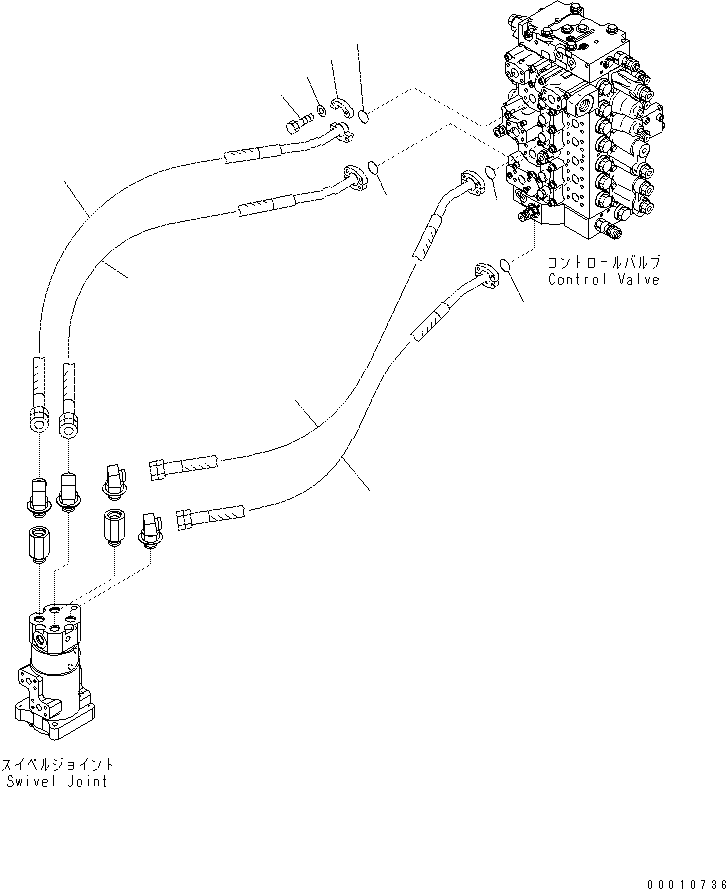

TRAVEL PIPING(|ZH00080 : |ZH00080)
Номер на схеме Каталожный номер Название Количество Детали
? 208-62-71120 HOSE, 1200MM 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 1
Field_6: X21-0856260
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 07000-13032 O-RING 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 2
Field_6: X21-0856260
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 208-62-71130 HOSE, 1300MM 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 3
Field_6: X21-0856260
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 07000-13032 O-RING 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 4
Field_6: X21-0856260
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 207-62-71440 HOSE, 1350MM 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 5
Field_6: X21-0856260
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 07000-13032 O-RING 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 6
Field_6: X21-0856260
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 208-62-71150 HOSE, 1450MM 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 7
Field_6: X21-0856260
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 07000-13032 O-RING 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 8
Field_6: X21-0856260
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 07371-31049 FLANGE 8
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 9
Field_6: X21-0856260
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 07372-21035 BOLT 16
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 10
Field_6: X21-0856260
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 01643-51032 WASHER 16
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 11
Field_6: X21-0856260
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
