Содержание Excavators Komatsu PC400-7(-50) S/N Y400001-UP(ZEPB000901)

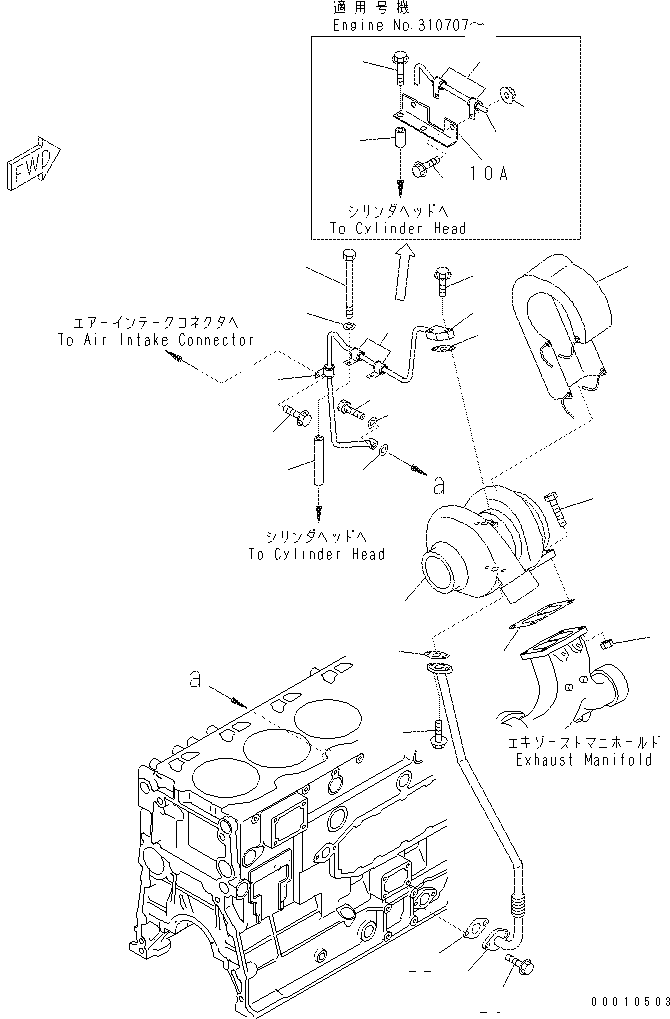

TURBOCHARGER MOUNTING AND LUBRICATOR(#310521-)(|AAA0047 : |AAA0047)
Номер на схеме Каталожный номер Название Количество Детали
? (6156-81-8130) TURBOCHARGER ASS'Y{(SEE FIG.A1530-B3J8)} 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 1
Field_6: X16-0372710
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6212-15-5831 GASKET\((K1)\) 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 2
Field_6: X16-0372710
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 01050-61045 BOLT 4
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 3
Field_6: X16-0372710
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6114-11-5590 NUT 4
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 4
Field_6: X16-0372710
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6251-11-5460 COVER 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 5
Field_6: X16-0372710
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6156-11-5410 COVER 1
Field_1:
Field_2: Y400001
Field_3: 319307
Field_4: A2
Field_5: 6
Field_6: X16-0372710
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6154-51-8250 TUBE{SUPPLY} 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 7
Field_6: X16-0372710
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6221-51-8160 GASKET\((K1)\) 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 8
Field_6: X16-0372710
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 01435-00830 BOLT 2
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 9
Field_6: X16-0372710
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 07206-31014 BOLT{JOINT} 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 10
Field_6: X16-0372710
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 07005-01412 SEAL, WASHER\((K1)\) 2
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 11
Field_6: X16-0372710
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6156-51-8690 BRACKET 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 12
Field_6: X16-0372710
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6130-22-6760 SPACER 2
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 13
Field_6: X16-0372710
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6151-51-5490 SPACER 2
Field_1:
Field_2: Y400001
Field_3: 310706
Field_4: A2
Field_5: 14
Field_6: X16-0372710
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 01435-01060 BOLT 2
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 15
Field_6: X16-0372710
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 01011-81090 BOLT 2
Field_1:
Field_2: Y400001
Field_3: 310706
Field_4: A2
Field_5: 16
Field_6: X16-0372710
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 01640-21016 WASHER 2
Field_1:
Field_2: Y400001
Field_3: 310706
Field_4:
Field_5: 17
Field_6: X16-0372710
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6151-53-8280 CLIP 2
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 18
Field_6: X16-0372710
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 01435-01020 BOLT 2
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 19
Field_6: X16-0372710
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 01584-01008 NUT 2
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 20
Field_6: X16-0372710
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6151-53-8280 CLIP 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 21
Field_6: X16-0372710
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6151-53-8280 CLIP 3
Field_1:
Field_2: Y400001
Field_3: 310706
Field_4:
Field_5: 22
Field_6: X16-0372710
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 01435-01020 BOLT 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 23
Field_6: X16-0372710
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6154-51-8570 TUBE{RETURN} 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 24
Field_6: X16-0372710
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6151-51-8721 GASKET\((K1)\) 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 25
Field_6: X16-0372710
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 01435-00820 BOLT 2
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 26
Field_6: X16-0372710
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6154-51-8310 GASKET\((K1)\) 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 27
Field_6: X16-0372710
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 01435-01025 BOLT 2
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 28
Field_6: X16-0372710
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
