| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

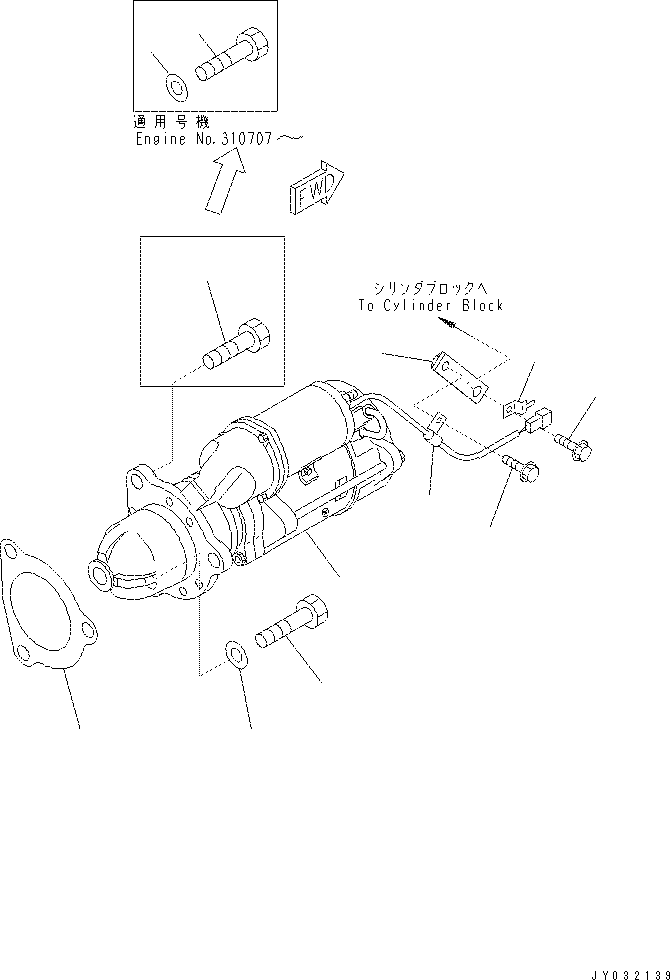

| ? | (600-813-6633) | STARTING MOTOR ASS'Y{(7.5KW) (SEE FIG.A6210-D3G4)} | 1 | Field_1: Field_2: Y400001 Field_3: Field_4: Field_5: 1 Field_6: X16-0373000 Field_7: Field_8: Field_9: Field_10: Field_11: Field_12: Field_13: Field_14: |
|||
| ? | (600-813-6632) | STARTING MOTOR ASS'Y{(7.5KW) (SEE FIG.A6210-C3G4)} | 1 | Field_1: Field_2: Y400001 Field_3: 327548 Field_4: A1 Field_5: 2 Field_6: X16-0373000 Field_7: Field_8: Field_9: Field_10: Field_11: Field_12: Field_13: Field_14: |
|||
| ? | (600-813-6630) | STARTING MOTOR ASS'Y{(7.5KW) (SEE FIG.A6210-B3G4)} | 1 | Field_1: Field_2: Y400001 Field_3: 310961 Field_4: B1 Field_5: 3 Field_6: X16-0373000 Field_7: Field_8: Field_9: Field_10: Field_11: Field_12: Field_13: Field_14: |
|||
| ? | 6221-81-6810 | GASKET\((K2)\) | 1 | Field_1: Field_2: Y400001 Field_3: Field_4: Field_5: 4 Field_6: X16-0373000 Field_7: Field_8: Field_9: Field_10: Field_11: Field_12: Field_13: Field_14: |
|||
| ? | 01010-81640 | BOLT | 2 | Field_1: Field_2: Y400001 Field_3: 310706 Field_4: Field_5: 5 Field_6: X16-0373000 Field_7: Field_8: Field_9: Field_10: Field_11: Field_12: Field_13: Field_14: |
|||
| ? | 01010-81645 | BOLT | 3 | Field_1: Field_2: Y400001 Field_3: Field_4: Field_5: 6 Field_6: X16-0373000 Field_7: Field_8: Field_9: Field_10: Field_11: Field_12: Field_13: Field_14: |
|||
| ? | 01010-81645 | BOLT | 1 | Field_1: Field_2: Y400001 Field_3: 310706 Field_4: Field_5: 7 Field_6: X16-0373000 Field_7: Field_8: Field_9: Field_10: Field_11: Field_12: Field_13: Field_14: |
|||
| ? | 01643-31645 | WASHER | 3 | Field_1: Field_2: Y400001 Field_3: Field_4: Field_5: 8 Field_6: X16-0373000 Field_7: Field_8: Field_9: Field_10: Field_11: Field_12: Field_13: Field_14: |
|||
| ? | 01643-31645 | WASHER | 1 | Field_1: Field_2: Y400001 Field_3: 310706 Field_4: Field_5: 9 Field_6: X16-0373000 Field_7: Field_8: Field_9: Field_10: Field_11: Field_12: Field_13: Field_14: |
|||
| ? | 421-62-11940 | PLATE | 1 | Field_1: Field_2: Y400001 Field_3: Field_4: Field_5: 10 Field_6: X16-0373000 Field_7: Field_8: Field_9: Field_10: Field_11: Field_12: Field_13: Field_14: |
|||
| ? | 08193-20010 | CLIP | 1 | Field_1: Field_2: Y400001 Field_3: Field_4: Field_5: 11 Field_6: X16-0373000 Field_7: Field_8: Field_9: Field_10: Field_11: Field_12: Field_13: Field_14: |
|||
| ? | 01435-01016 | BOLT | 1 | Field_1: Field_2: Y400001 Field_3: Field_4: Field_5: 12 Field_6: X16-0373000 Field_7: Field_8: Field_9: Field_10: Field_11: Field_12: Field_13: Field_14: |
|||
| ? | 04434-50510 | CLIP | 1 | Field_1: Field_2: Y400001 Field_3: Field_4: Field_5: 13 Field_6: X16-0373000 Field_7: Field_8: Field_9: Field_10: Field_11: Field_12: Field_13: Field_14: |
|||
| ? | 01435-01016 | BOLT | 1 | Field_1: Field_2: Y400001 Field_3: Field_4: Field_5: 14 Field_6: X16-0373000 Field_7: Field_8: Field_9: Field_10: Field_11: Field_12: Field_13: Field_14: |
