Содержание Excavators Komatsu PC400-7(-50) S/N Y400001-UP(ZEPB000901)

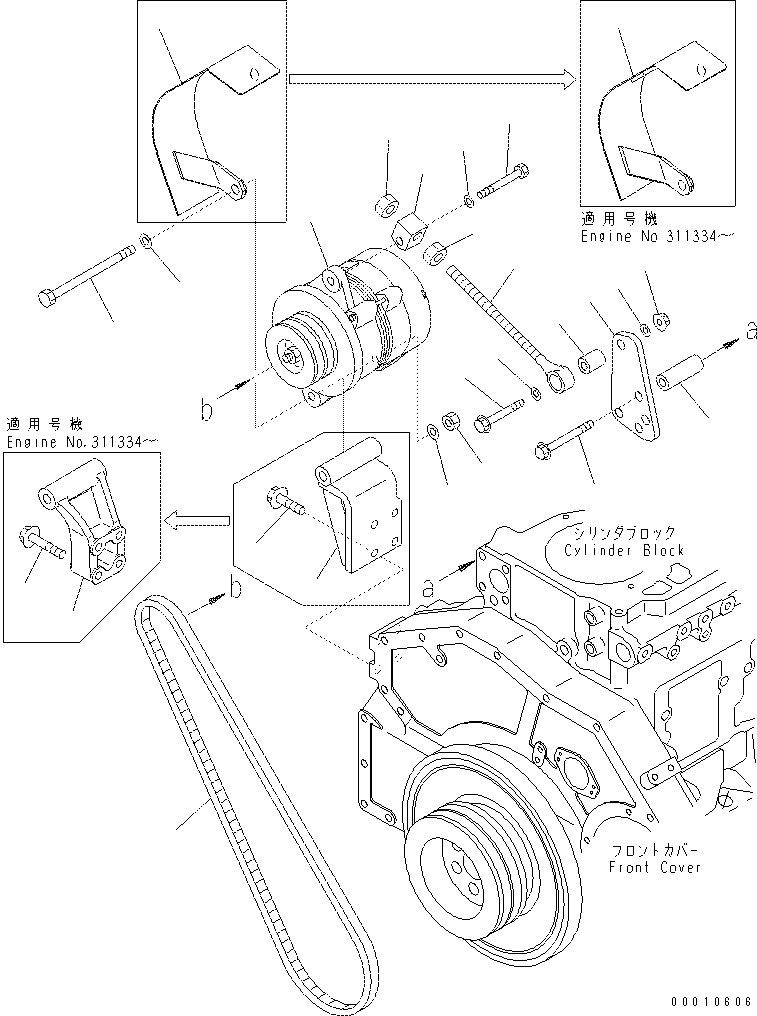

ALTERNATOR AND MOUNTING (75A) (HARDENING PULLEY)(#310001-)(|AAA0355 : |AAA0355)
Номер на схеме Каталожный номер Название Количество Детали
? (600-821-9542) ALTERNATOR A. (75A){(SEE FIG.A6010-D3T3)} 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 1
Field_6: X16-0371840
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? (600-821-9541) ALTERNATOR A. (75A){(SEE FIG.A6010-C3T3)} 1
Field_1:
Field_2: Y400001
Field_3: 312558
Field_4: A2
Field_5: 2
Field_6: X16-0371840
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? (600-821-9540) ALTERNATOR A. (75A){(SEE FIG.A6010-B3T3)} 1
Field_1:
Field_2: Y400001
Field_3: 310944
Field_4: A1
Field_5: 3
Field_6: X16-0371840
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6128-21-6780 BOLT 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 4
Field_6: X16-0371840
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 02205-10812 NUT 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 5
Field_6: X16-0371840
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 01640-21323 WASHER 2
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 6
Field_6: X16-0371840
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6151-82-6712 COVER 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 7
Field_6: X16-0371840
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6151-82-6711 COVER 1
Field_1:
Field_2: Y400001
Field_3: 311337
Field_4: A2
Field_5: 8
Field_6: X16-0371840
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6154-81-6411 BRACKET 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 9
Field_6: X16-0371840
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6154-81-6410 BRACKET 1
Field_1:
Field_2: Y400001
Field_3: 311337
Field_4: A2
Field_5: 10
Field_6: X16-0371840
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 01435-01055 BOLT 4
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 11
Field_6: X16-0371840
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 01435-01025 BOLT 4
Field_1:
Field_2: Y400001
Field_3: 311337
Field_4: A2
Field_5: 12
Field_6: X16-0371840
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6150-82-8650 PLATE 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 13
Field_6: X16-0371840
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 01435-01085 BOLT 2
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 14
Field_6: X16-0371840
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6204-81-9560 SPACER 2
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 15
Field_6: X16-0371840
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6150-82-8610 ROD{ADJUSTING} 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 16
Field_6: X16-0371840
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6150-82-8690 PLATE 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 17
Field_6: X16-0371840
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6215-81-6150 PIN 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 18
Field_6: X16-0371840
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 01435-01255 BOLT 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 19
Field_6: X16-0371840
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 01584-01210 NUT 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 20
Field_6: X16-0371840
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 01643-31232 WASHER 2
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 21
Field_6: X16-0371840
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 01050-51260 BOLT 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 22
Field_6: X16-0371840
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 01643-31232 WASHER 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 23
Field_6: X16-0371840
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 01580-11411 NUT 2
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 24
Field_6: X16-0371840
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 01580-01411 NUT 2
Field_1:
Field_2: Y400001
Field_3: 311029
Field_4: A2
Field_5: 25
Field_6: X16-0371840
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 04120-21754 V-BELT{1370MM} 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 26
Field_6: X16-0371840
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
