Содержание Excavators Komatsu PC400-7(-50) S/N Y400001-UP(ZEPB000901)

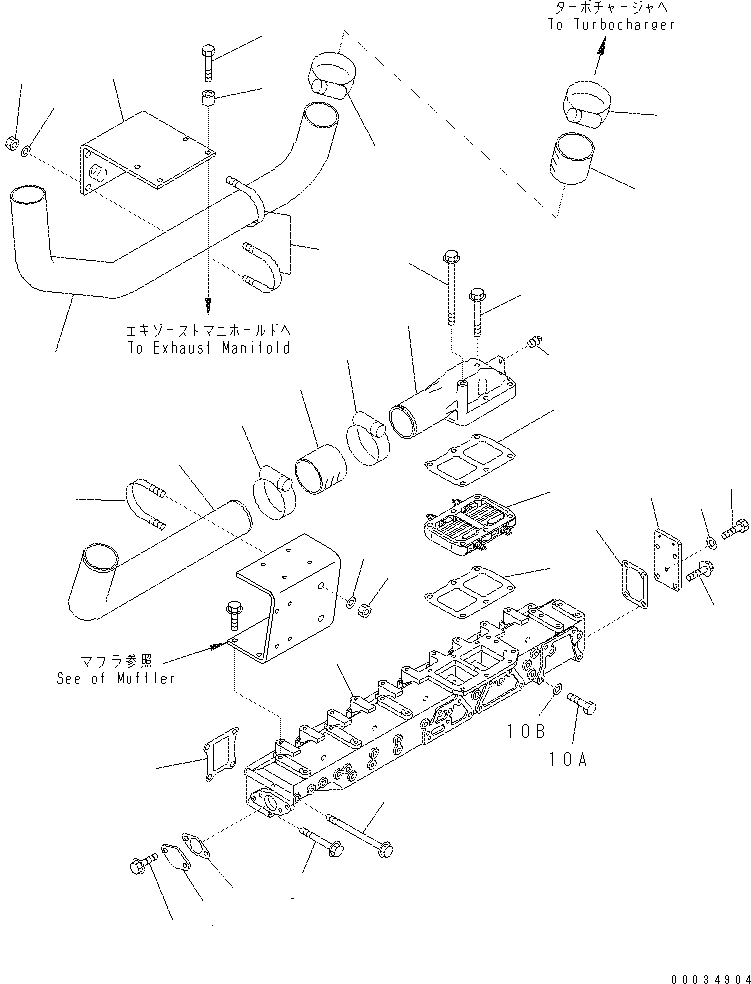

AIR INTAKE MANIFOLD AND CONNECTION (90A ALTERNATOR SPEC.)(#315094-)(|AAA0025 : |AAA0025)
Номер на схеме Каталожный номер Название Количество Детали
? 6154-11-4110 MANIFOLD{AIR INTAKE} 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 1
Field_6: X16-0377080
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 01436-01065 BOLT 12
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 2
Field_6: X16-0377080
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 01435-01080 BOLT 11
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 3
Field_6: X16-0377080
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6156-11-4190 PLATE 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 4
Field_6: X16-0377080
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6162-23-6530 PLATE 1
Field_1:
Field_2: Y400001
Field_3: 316524
Field_4: A4
Field_5: 5
Field_6: X16-0377080
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? #6162-23-6530 (6156-11-4190{01435-01025(2))} 999
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 6
Field_6: X16-0377080
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6127-51-6822 GASKET\((K1)\) 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 7
Field_6: X16-0377080
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 01435-01025 BOLT 2
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 8
Field_6: X16-0377080
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 01435-01020 BOLT 2
Field_1:
Field_2: Y400001
Field_3: 316524
Field_4:
Field_5: 9
Field_6: X16-0377080
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6154-11-4250 PLATE 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 10
Field_6: X16-0377080
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6154-11-4260 GASKET\((K1)\) 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 11
Field_6: X16-0377080
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 01435-01025 BOLT 4
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 12
Field_6: X16-0377080
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6150-13-4810 GASKET\((K1)\) 6
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 13
Field_6: X16-0377080
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 01050-51012 BOLT 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 14
Field_6: X16-0377080
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 07005-01012 SEAL, WASHER\((K1)\) 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 15
Field_6: X16-0377080
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 01050-51012 BOLT 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 16
Field_6: X16-0377080
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 07005-01012 SEAL, WASHER\((K1)\) 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 17
Field_6: X16-0377080
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6156-11-4310 CONNECTOR 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 18
Field_6: X16-0377080
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 07042-00108 PLUG 2
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 19
Field_6: X16-0377080
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 600-815-3812 HEATER{RIBBON} 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 20
Field_6: X16-0377080
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? (600-815-3811) HEATER{RIBBON} 1
Field_1:
Field_2: Y400001
Field_3: 322226
Field_4: B1
Field_5: 21
Field_6: X16-0377080
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6150-11-4821 GASKET\((K1)\) 2
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 22
Field_6: X16-0377080
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 01435-01070 BOLT 4
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 23
Field_6: X16-0377080
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 01436-01045 BOLT 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 24
Field_6: X16-0377080
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6156-11-4150 PIPE 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 25
Field_6: X16-0377080
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6151-11-4410 HOSE 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 26
Field_6: X16-0377080
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6152-12-4490 CLAMP 2
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 27
Field_6: X16-0377080
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6156-11-4180 BRACKET 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 28
Field_6: X16-0377080
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 07283-27663 CLIP 2
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 29
Field_6: X16-0377080
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 01643-31032 WASHER 4
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 30
Field_6: X16-0377080
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 01597-01009 NUT 4
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 31
Field_6: X16-0377080
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 01010-E1040 BOLT 2
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 32
Field_6: X16-0377080
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6631-11-5630 SPACER 2
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 33
Field_6: X16-0377080
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6156-11-4160 PIPE 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 34
Field_6: X16-0377080
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6151-11-4410 HOSE 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 35
Field_6: X16-0377080
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6152-12-4490 CLAMP 2
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 36
Field_6: X16-0377080
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 07283-27663 CLIP 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 37
Field_6: X16-0377080
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 01643-31032 WASHER 2
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 38
Field_6: X16-0377080
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 01597-01009 NUT 2
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 39
Field_6: X16-0377080
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:

Excavators Komatsu / PC400-7(-50) S/N Y400001-UP(ZEPB000901) / AIR INTAKE MANIFOLD AND CONNECTION (90A ALTERNATOR SPEC.)(#315094-)(|AAA0025 : |AAA0025)
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
