Содержание Excavators Komatsu PC400-7(-50) S/N Y400001-UP(ZEPB000901)

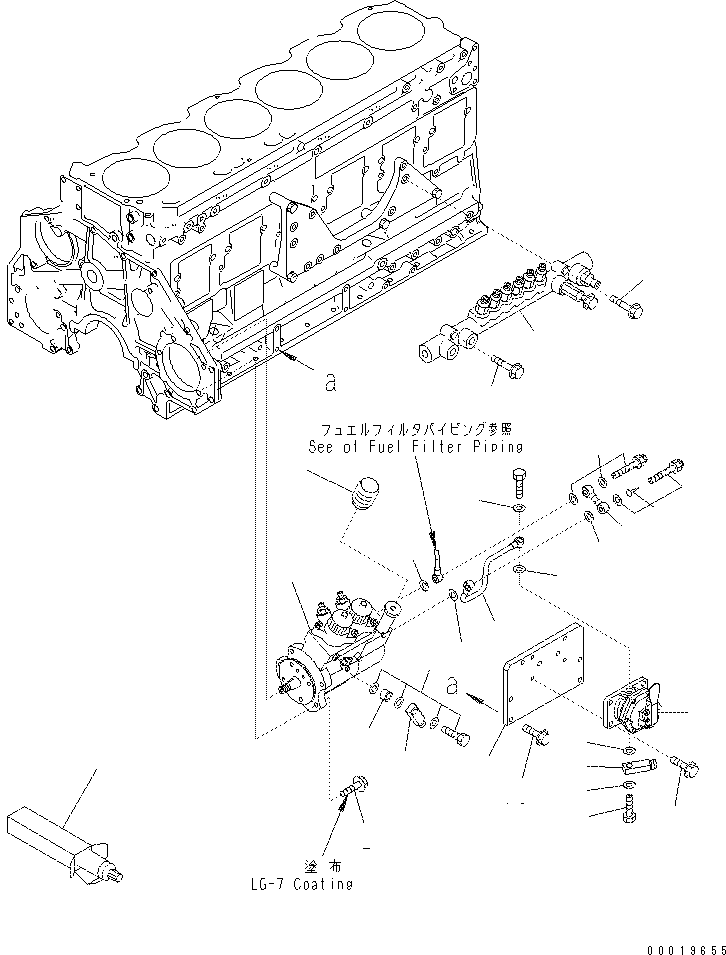

FUEL SUPPLY PUMP AND COMMON RAIL(#313158-)(|AAA0173 : |AAA0173)
Номер на схеме Каталожный номер Название Количество Детали
? (6156-71-1132) FUEL PUMP ASS'Y{(SEE FIG.A4010-D3A7)} 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 1
Field_6: X16-0381410
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? (6156-71-1131) FUEL PUMP ASS'Y{(SEE FIG.A4010-D3A7)} 1
Field_1:
Field_2: Y400001
Field_3: 324550
Field_4: A2
Field_5: 2
Field_6: X16-0381410
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? (6156-71-1130) FUEL PUMP ASS'Y{(SEE FIG.A4010-D3A7)} 1
Field_1:
Field_2: Y400001
Field_3: 315560
Field_4: A2
Field_5: 3
Field_6: X16-0381410
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 01435-01035 BOLT 4
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 4
Field_6: X16-0381410
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6217-71-5910 TUBE 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 5
Field_6: X16-0381410
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6217-71-1910 COVER 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 6
Field_6: X16-0381410
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6151-51-8490 SPACER 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 7
Field_6: X16-0381410
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6156-71-5370 JOINT 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 8
Field_6: X16-0381410
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6156-71-5380 JOINT 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 9
Field_6: X16-0381410
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? (6217-71-1211) RAIL ASS'Y{(SEE FIG.A4010-C3A7)} 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 10
Field_6: X16-0381410
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 01435-01050 BOLT 2
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 11
Field_6: X16-0381410
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6217-71-8210 PRIMING PUMP 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 12
Field_6: X16-0381410
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 01435-01020 BOLT 4
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 13
Field_6: X16-0381410
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6156-71-8310 PLATE 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 14
Field_6: X16-0381410
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 01435-01025 BOLT 4
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 15
Field_6: X16-0381410
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6156-71-8320 TUBE 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 16
Field_6: X16-0381410
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 07206-31014 BOLT{JOINT} 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 17
Field_6: X16-0381410
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 07005-01412 SEAL, WASHER\((K2)\) 4
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 18
Field_6: X16-0381410
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? (09920-00150) LIQUID GASKET{LG-7, 150G} A/R
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 19
Field_6: X16-0381410
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
