Содержание Excavators Komatsu PC400-7(-50) S/N Y400001-UP(ZEPB000901)

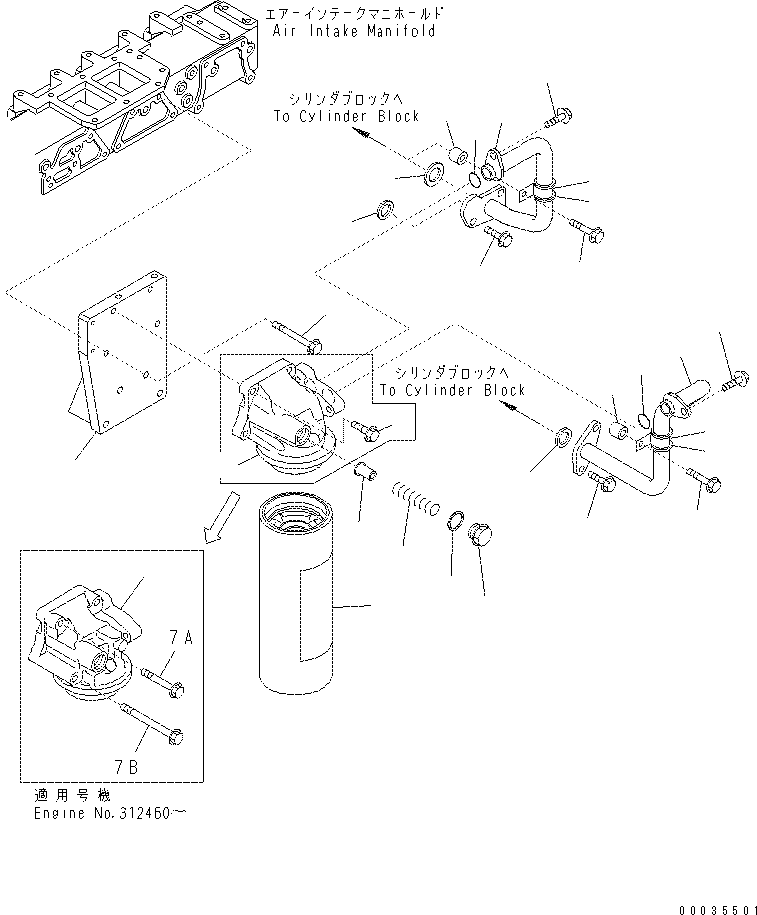

OIL FILTER AND PIPING(#310352-)(|AAA0164 : |AAA0164)
Номер на схеме Каталожный номер Название Количество Детали
? 6217-51-5103 HEAD ASS'Y 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 1
Field_6: X16-0371500
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6217-51-5102 HEAD ASS'Y 1
Field_1:
Field_2: Y400001
Field_3: 323098
Field_4: A2
Field_5: 2
Field_6: X16-0371500
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6217-51-5101 HEAD ASS'Y 1
Field_1:
Field_2: Y400001
Field_3: 312459
Field_4: A2
Field_5: 3
Field_6: X16-0371500
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6217-51-5100 HEAD ASS'Y 1
Field_1:
Field_2: Y400001
Field_3: 310606
Field_4:
Field_5: 4
Field_6: X16-0371500
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6217-51-5112 • HEAD 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 5
Field_6: X16-0371500
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6217-51-5111 • HEAD 1
Field_1:
Field_2: Y400001
Field_3: 323098
Field_4:
Field_5: 6
Field_6: X16-0371500
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6217-51-5110 • HEAD 1
Field_1:
Field_2: Y400001
Field_3: 310606
Field_4:
Field_5: 7
Field_6: X16-0371500
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 600-211-1890 • SPRING 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 8
Field_6: X16-0371500
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 600-211-1870 • SPRING 1
Field_1:
Field_2: Y400001
Field_3: 312459
Field_4:
Field_5: 9
Field_6: X16-0371500
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6162-55-5230 • VALVE 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 10
Field_6: X16-0371500
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6162-55-5220 • VALVE 1
Field_1:
Field_2: Y400001
Field_3: 312459
Field_4:
Field_5: 11
Field_6: X16-0371500
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6162-53-5430 • PACKING 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 12
Field_6: X16-0371500
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6217-51-5660 • CAP 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 13
Field_6: X16-0371500
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6162-55-5210 • CAP 1
Field_1:
Field_2: Y400001
Field_3: 312459
Field_4:
Field_5: 14
Field_6: X16-0371500
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 600-211-1340 CARTRIDGE 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 15
Field_6: X16-0371500
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 01435-01035 BOLT 4
Field_1:
Field_2: Y400001
Field_3: 312459
Field_4:
Field_5: 16
Field_6: X16-0371500
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 01435-01060 BOLT 2
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 17
Field_6: X16-0371500
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 01436-01005 BOLT 2
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 18
Field_6: X16-0371500
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6156-51-5250 BRACKET 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 19
Field_6: X16-0371500
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 01435-01085 BOLT 4
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 20
Field_6: X16-0371500
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6156-51-5750 TUBE{INLET} 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 21
Field_6: X16-0371500
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6156-51-5760 TUBE{OUTLET} 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 22
Field_6: X16-0371500
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6124-61-2181 GROMMET\((K2)\) 2
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 23
Field_6: X16-0371500
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6154-51-5810 GROMMET\((K2)\) 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 24
Field_6: X16-0371500
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 07000-73025 O-RING\((K2)\) 2
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 25
Field_6: X16-0371500
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 01435-01025 BOLT 5
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 26
Field_6: X16-0371500
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 01435-01025 BOLT 2
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 27
Field_6: X16-0371500
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 07095-20523 CUSHION 2
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 28
Field_6: X16-0371500
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 04434-53211 CLIP 2
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 29
Field_6: X16-0371500
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 6152-11-4970 SPACER 2
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 30
Field_6: X16-0371500
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 01435-01040 BOLT 2
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 31
Field_6: X16-0371500
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
