Содержание Excavators Komatsu PC400-7(-50) S/N Y400001-UP(ZEPB000901)

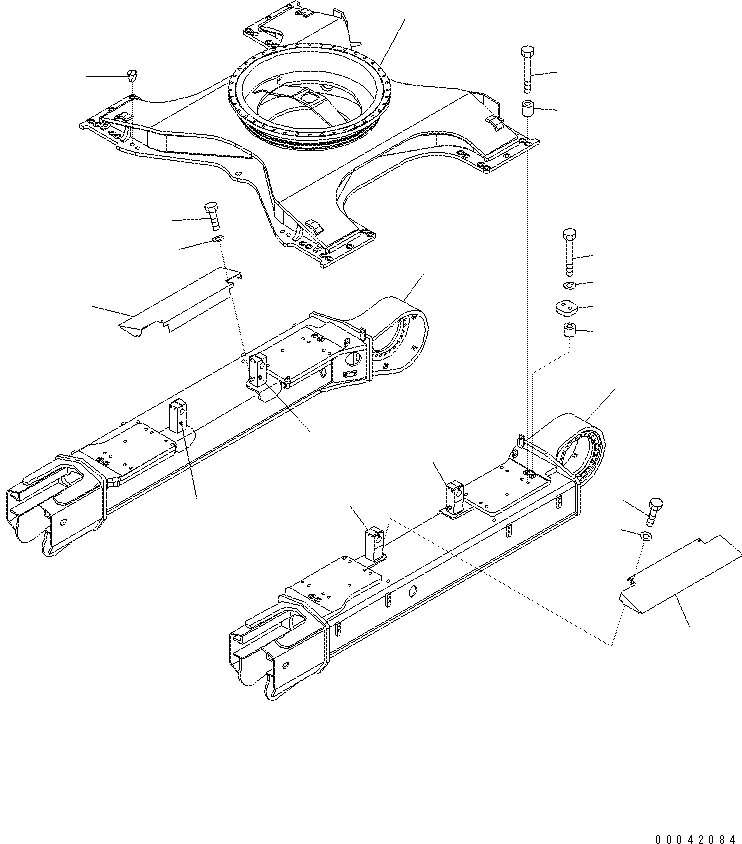

TRACK FRAME (VARIABLE GAUGE) (FRAME) (SN )(|ZR00032 : |ZR00032)
Номер на схеме Каталожный номер Название Количество Детали
? 208-30-75115 FRAME 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 1
Field_6: X21-2010060
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 208-30-75114 FRAME 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 2
Field_6: X21-2010060
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 208-30-75143 FRAME 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 3
Field_6: X21-2010060
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 208-30-75E11 • BRACKET\((WELDED)\) 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 4
Field_6: X21-2010060
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 208-30-75E21 • BRACKET\((WELDED)\) 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 5
Field_6: X21-2010060
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 208-30-75153 FRAME 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 6
Field_6: X21-2010060
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 208-30-75E11 • BRACKET\((WELDED)\) 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 7
Field_6: X21-2010060
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 208-30-75E21 • BRACKET\((WELDED)\) 1
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 8
Field_6: X21-2010060
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 208-30-75182 PLATE 2
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 9
Field_6: X21-2010060
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 01010-81225 BOLT 4
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 10
Field_6: X21-2010060
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 01643-31232 WASHER 4
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 11
Field_6: X21-2010060
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 208-30-75390 COLLAR 16
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 12
Field_6: X21-2010060
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 208-30-12130 BOLT 16
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 13
Field_6: X21-2010060
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 208-30-12160 PLATE 4
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 14
Field_6: X21-2010060
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 208-30-31650 COLLAR 8
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 15
Field_6: X21-2010060
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 01011-63030 BOLT 8
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 16
Field_6: X21-2010060
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 01643-33080 WASHER 8
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 17
Field_6: X21-2010060
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
? 07049-03949 PLUG 8
Field_1:
Field_2: Y400001
Field_3:
Field_4:
Field_5: 18
Field_6: X21-2010060
Field_7:
Field_8:
Field_9:
Field_10:
Field_11:
Field_12:
Field_13:
Field_14:
